ELTEX ESR-3100 User Manual

ESR series service routers.ESR-Series. User manual
52
ESR-200, ESR-100 rear panel
The rear panel layout of ESR-200 and ESR-100 routers is depicted in figure 25.

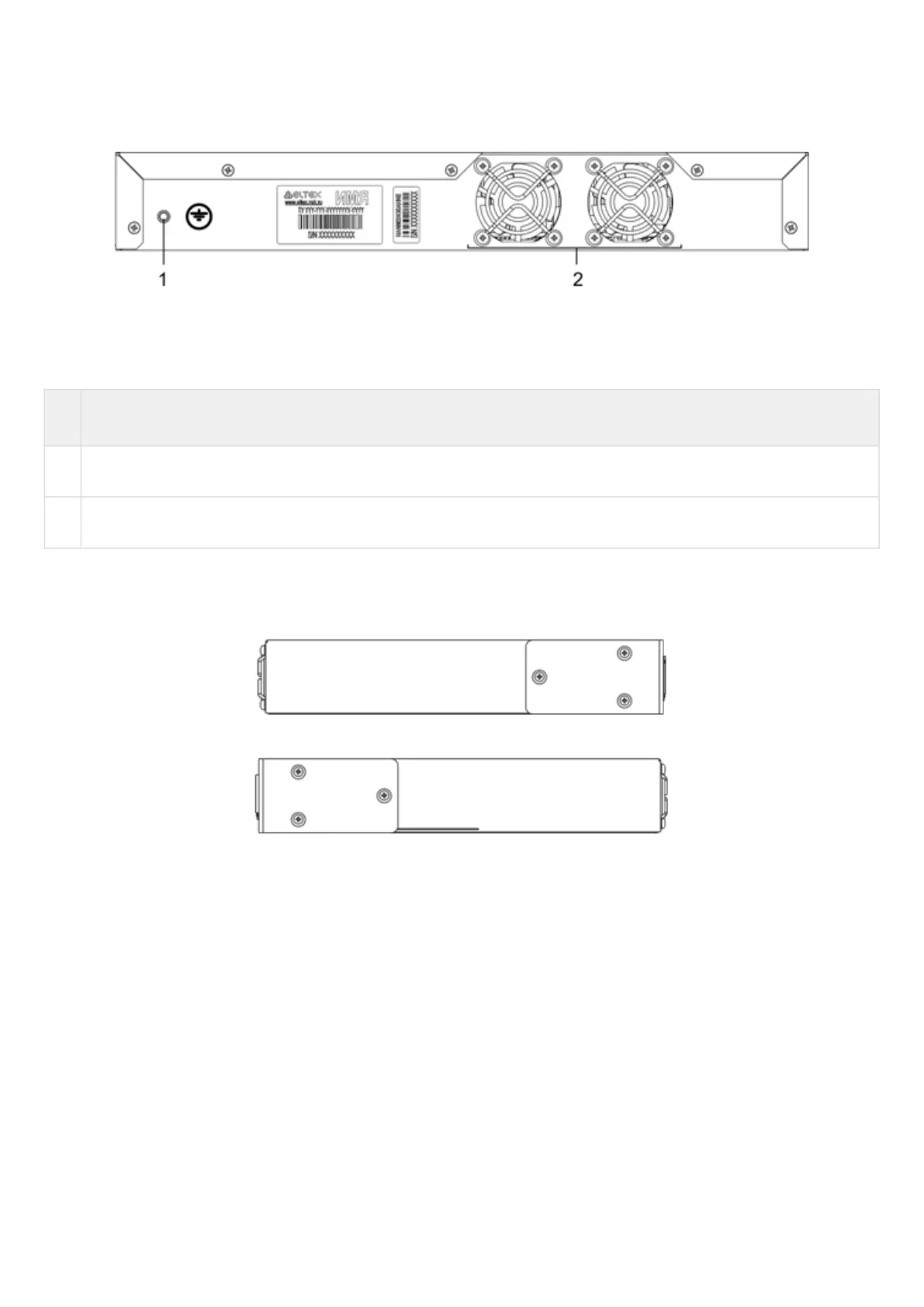

Figure 25 – ESR-200, ESR-100 rear panel
Table 22 lists rear panel connectors of the router.
Table 22 – Rear panel connectors description
№ Description
1 Earth bonding point of the device.
2 Ventilation module.
ESR-100, ESR-200 side panels
The side panel layout of ESR-200, ESR-100 is depicted in Figures 26 and 27.
Figure 26 – ESR-100 and ESR-200 right side panel
Figure 27 – ESR-100 and ESR-200 left side panel
