ESR series service routers.ESR-Series. User manual

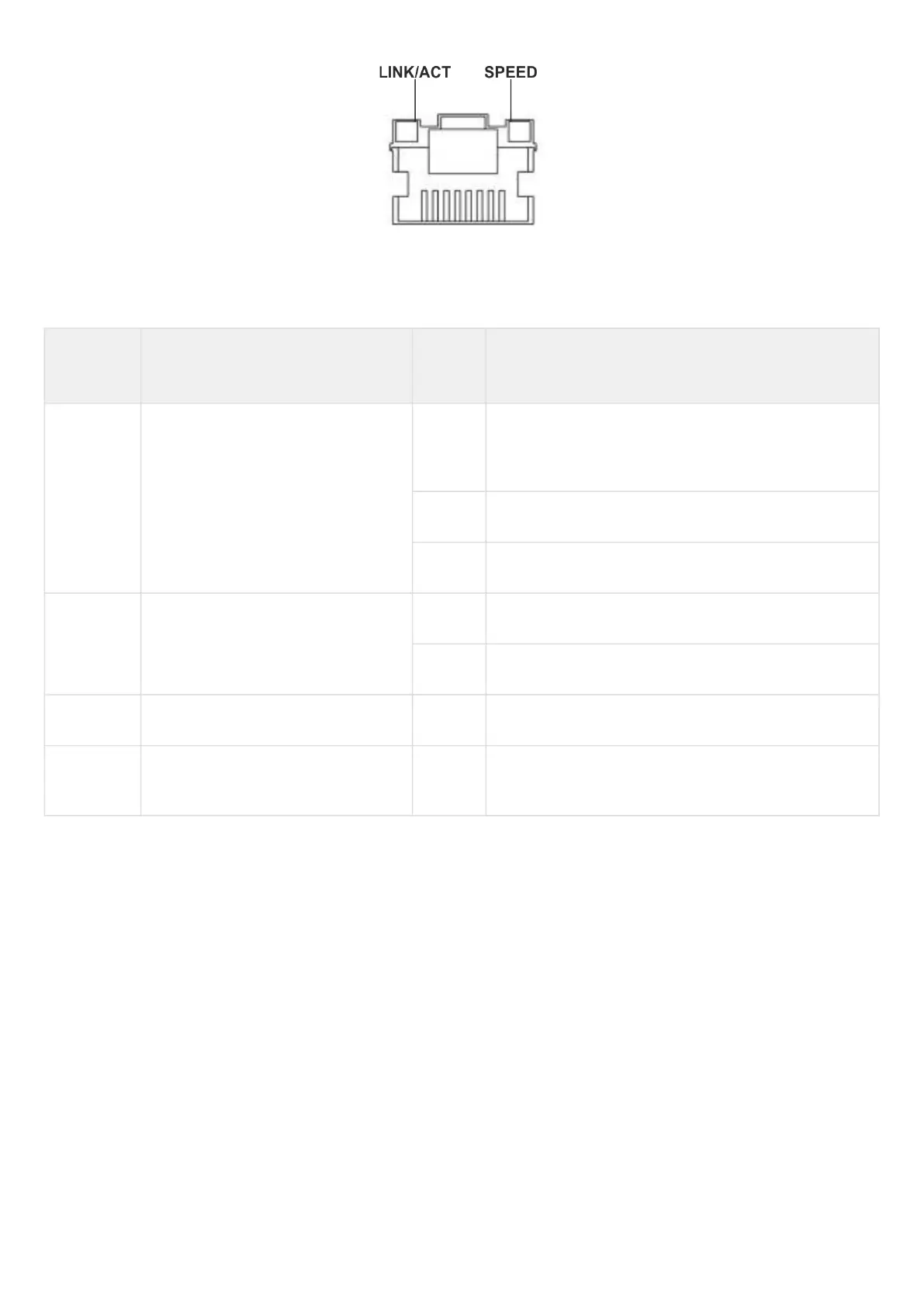

Figure 56 – Location of RJ-45 connector indicators
The following table lists description of system indicator statuses and meanings.
Table 46 – Status of system indicators
Indicator
name
Indicator function LED
State
Device State
Power Device power LED. Green Device power is normal operation state. Main power
supply, if installed, is operational. The main software is
uploaded.
Red The main software is not loaded.
Off Device internal power supply failure.
Status Current device status LED. Green Device is in normal operation state.
Orange Device is booting up the software.
Alarm Alarm LED. - -
HA HA operation mode LED (not
supported in the current version)
- -
