Epson Stylus COLOR 3000 Service Manual

Adjustment
EPSON Stylus Color 3000 Service Manual
4-8
No
The printer prints the
printhead angle adjustment
pattern.
Move the black printhead
adjustment lever right.
Fasten the black/color printhead
mounting screw while holding the arm
of the printhead.
Press the Space key.
Press Return.
Loosen the color printhead
mounting screw by giving it
1/4 turn.
printhead angle
OK?
Move the color printhead
adjustment lever right.
Move the color printhead
adjustment lever left.
The printer prints another
printhead angle adjustment
pattern.
printhead angle
OK?
Yes
Is
the color
Is
the black
Start
End
*
*
↓
* The direction in which paper is fed.
Move the black printhead
adjustment lever left.
What
does the pattern
show?
*
What
does the pattern
show?
*
*
Loosen the black printhead
mounting screw by giving it
1/4 turn.
(See Figure 3-6 in Chapter 3.)
(See Figure 3-6 in Chapter 3.)
Yes
No

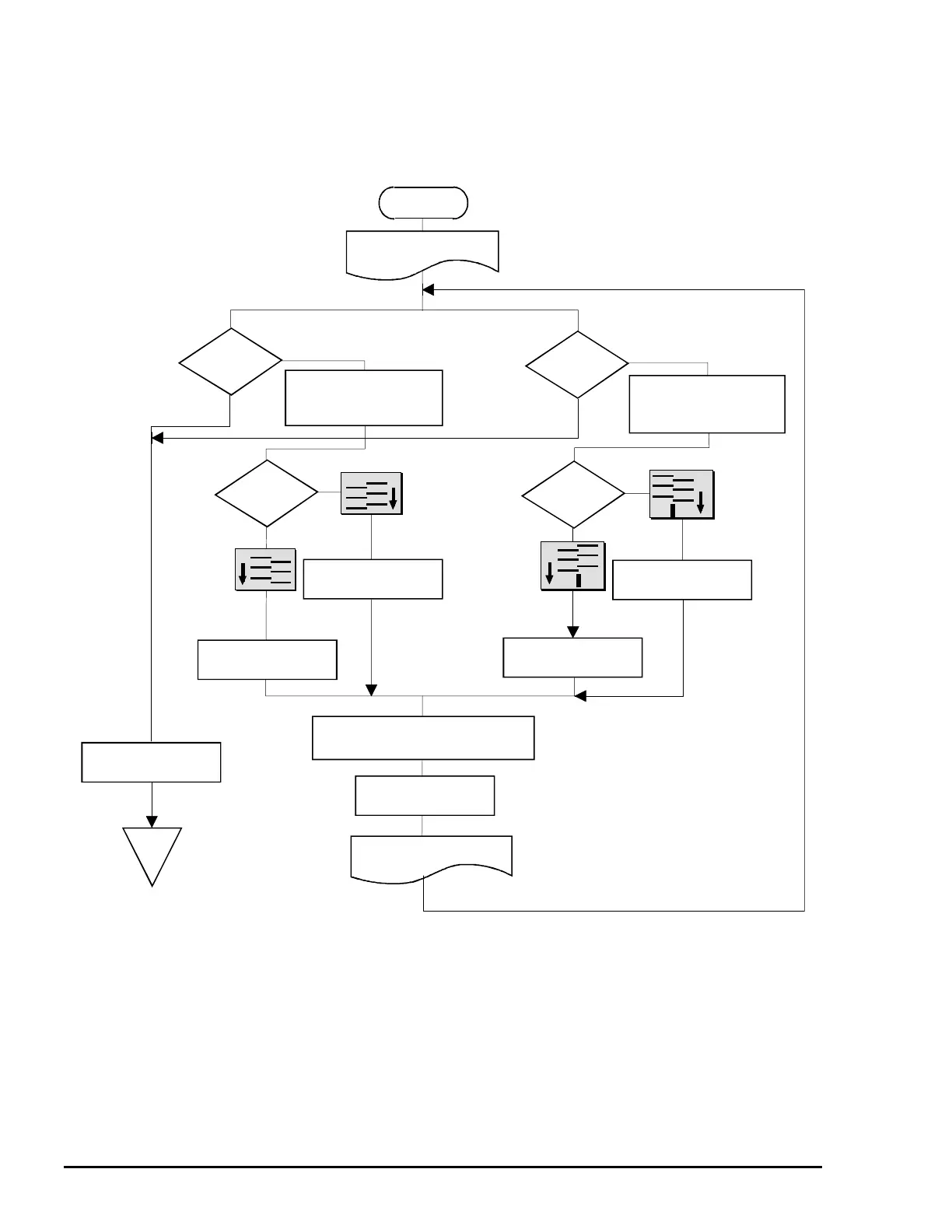

Figure 4-5. Printhead Angle Adjustment Flowchart

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
