CHAPTER 19

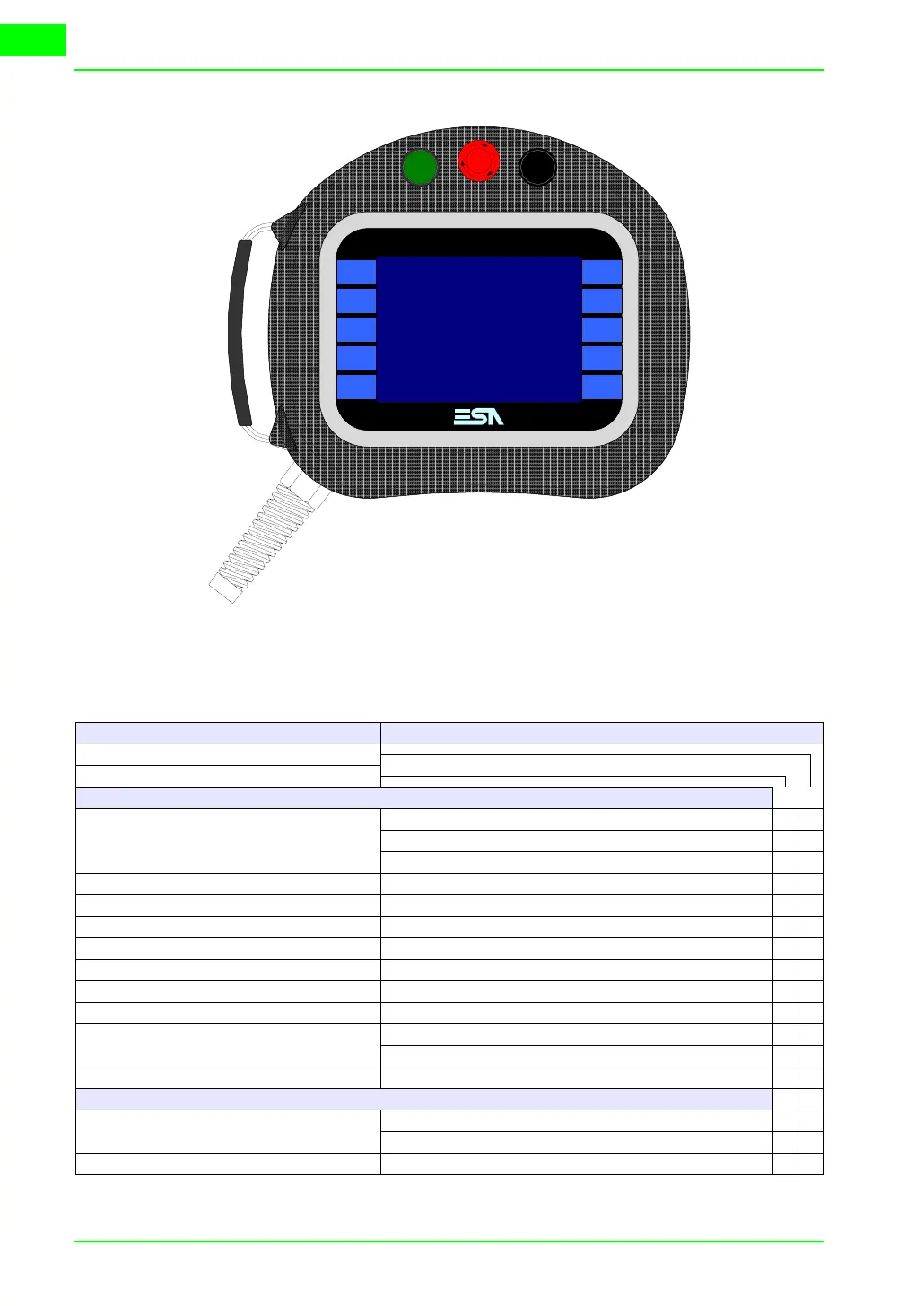

Video terminal VT525H
405.1200.037.2 - Rel.: 2.21 of 25/02/2008
19-2
Technical
characteristics
The following table lists the principal technical characteristics of the prod-
uct in question.
F9
F10
F8
F7
F6
F1
F2
F3
F4
F5
Code of terminal Characteristics of the terminal
VT525H 00000
VT525H 000CN
Display ▼▼
Type
LCD 4 tones of blue STN
LCD 16 Colors STN
●●
LCD 16 Colors TFT
Touch screen Matrix 20 x 16 (Cell:16x15 pixels)
●●
Representational format Graphic
●●
Resolution [pixels] 320 x 240 (5,7”)
●●
Rows x characters 16 x 40 / 8 x 20 / 4 x 10
●●
Display area size [mm] 115,2 x 86,4
●●
Character matrix in text mode [pixels] 8 x15 / 16 x 30 / 32 x 60
●●
Character size [mm] x 1 / x 2 / x 4 2,9 x 5,4 / 5,8 x 10,8 / 11,6 x 21,6
●●
Contrast adjustment
Software
●●
Automatic compensation with temperature
●●
Character sets Programmable fonts/TTF Windows ®
●●
Backlighting
Type
LED
CCFL lamp
●●
Minimum lamp-life at 25°C [hours] 15000
●●
1 – Using the VTHCB card (see “Chapter 34 -> Page 9“)
2 - RS232 only
