ESA-Net All VT terminals can be connected in an ESA-Net network as Network Cli-
ents or as Network Servers (see technical characteristics of individual ter-
minals). The network Client can only ask other terminals in the network for
information (variables); while the network Server makes information (vari-
ables) available to other terminals in the network.
ESA-Net: VT
operation

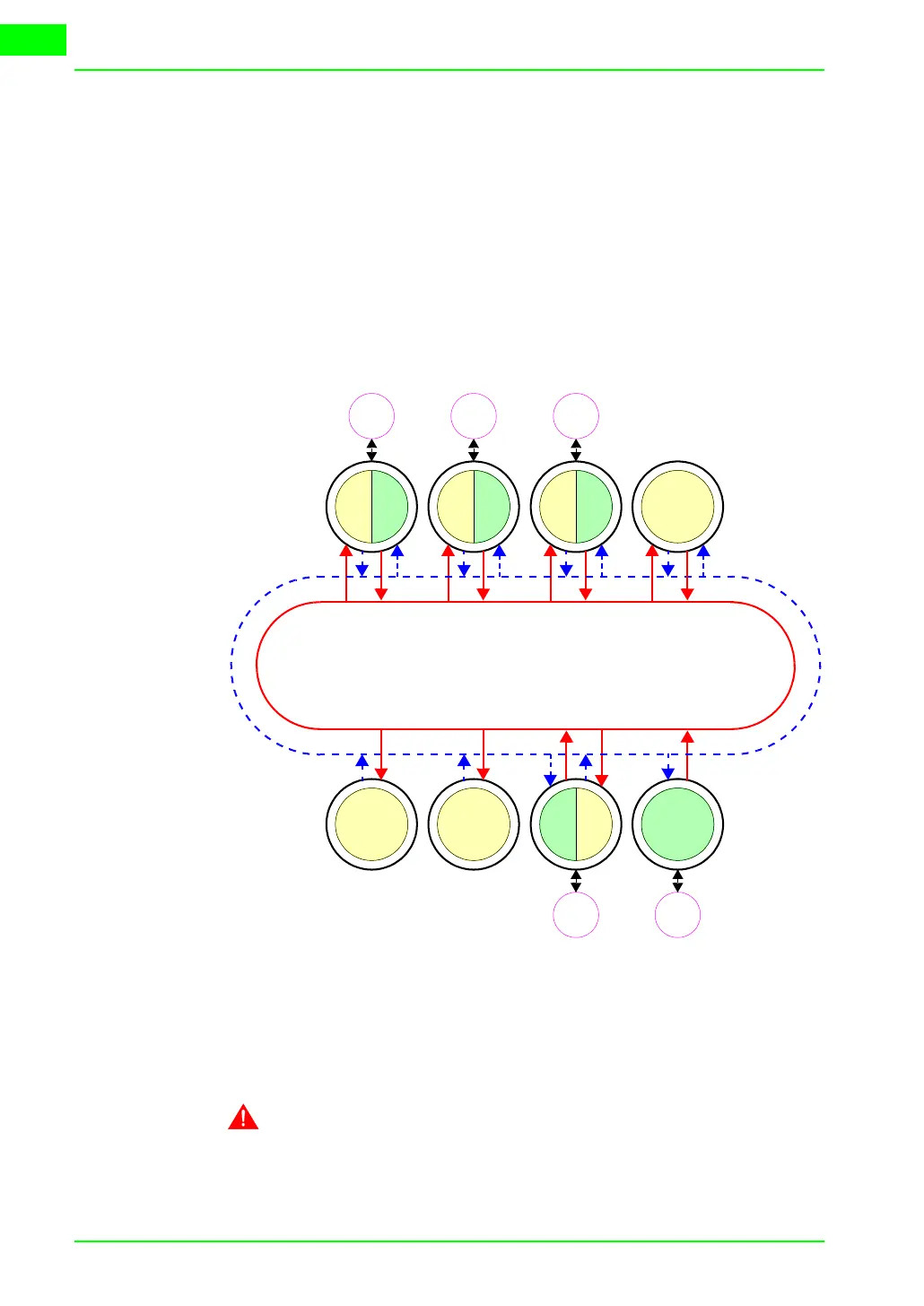

To help clarify the concept of ESA-Net, we offer the data-flow diagram
below showing how a terminal assumes the function of client, server and
server/client.
In the ESA-Net network the server terminal is the one that makes all or
some of the variables available to the other terminals; these variables are
called Public Variables.
The maximum length of public objects is 60 Bytes; excess lengths
will be truncated. To avoid this, we suggest more than one object
with the appropriate lengths (with a length of 120 Bytes use two objects
of 60 Bytes).
D
VP
V
D
VP
V
123
8765
4
MAX. 32 Participants
D
VP
V
D
VP
V
VV
D
VP
V
