405.1200.037.2 - Rel.: 2.21 of 25/02/2008
41-65
SCHLEICHER PLC
RxD
TxD
RTS
CTS
GND
3
2
7
25
TxD
RxD
GND
23
24
19
4
5
15
18

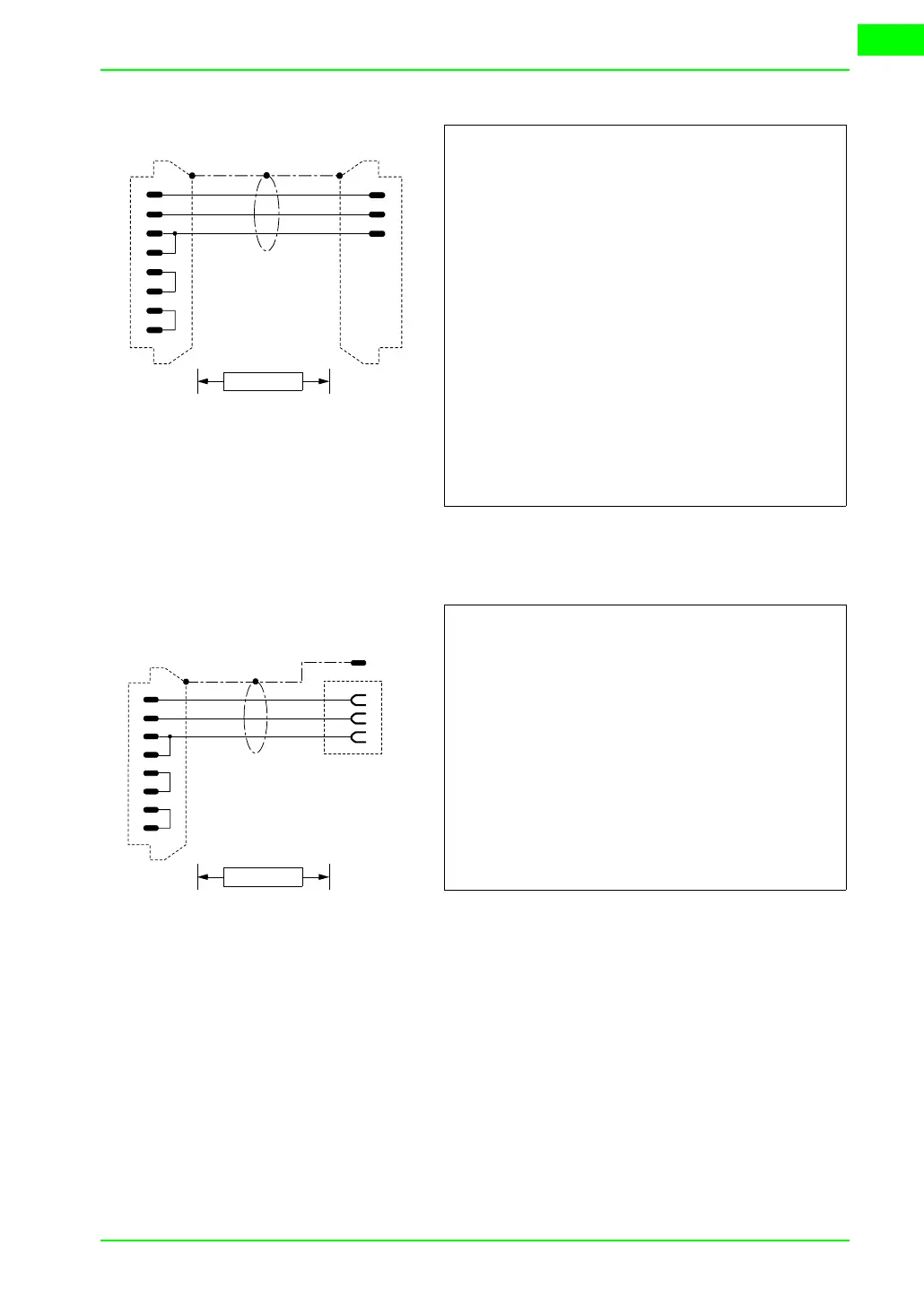

VT side
D-Sub
25 pin male
PLC side
D-Sub
25 pin male
Max. 15 m.
Order code:
CVPLC18202
Series 115
(RS232)
Connection to VDU-port.
Possible connection also to PLC PRINTER-port.
In this case configure the COMLI 1-port as CHA2 with the appropriate software
programming utility of the PLC
CPLC serial port configuration:
Channel Configuration no.: B
COMLI: C
Master / Slave (M / S): S
Identity (1..247): 1
ASCII / Binary (A / B): B
Baudrate (110...19200): 9600
Number of data bits: 8
Number of stop bits: 1
Parity (O / E / N): O
Error counters to register (RX/N): N
Number of ACIA-errors: 12
Number of BCC-errors: 8
Number of other errors: 4
(See “Chapter 41 -> Connecting the cable shield“)
VT side
D-Sub
25 pin male
PLC side
Phoenix
6 pin female
Max. 15 m.
Order code:
CVPLC08102
CPU-10, CPU20 serial interface COM2
(RS232)
(See “Chapter 41 -> Connecting the cable shield“)
RxD
TxD
RTS
CTS
GND
3
2
7
25
TxD
RxD
Vo
4
5
1
4
5
15
18
SHD
