Interbus-S and
Profibus-DP
card

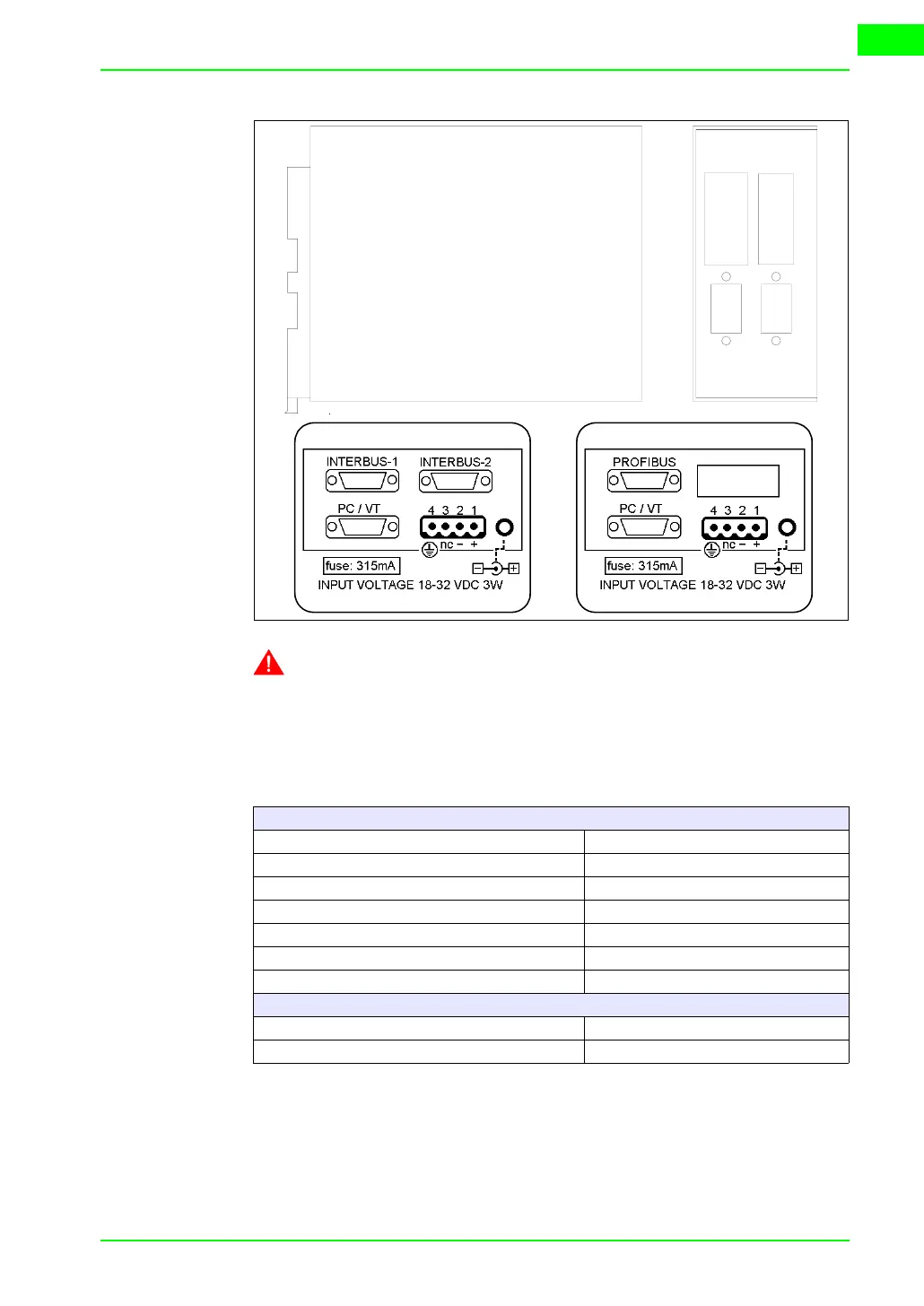

The casing is the same both for the Interbus-S and the Profi-
bus-DP networks; a label is attached to indicate which network is
contained.
The table below lists the principal technical characteristics of the product
under discussion.
The device incorporates the Interbus-S and Profibus-DP network cards (see
Page 34-19 and Page 34-21 for information); it also contains a power sup-
ply card with a communication port composed of a 9 pin male D-Sub con-
nector for connecting a PC or VT in RS232 (see
“Chapter 31 -> PC/VT
serial port“
).
Technical data
Power supply 24Vdc (18..32Vdc)
Power absorbed at 24Vdc 3W
Protection level --
Operating temperature 0..50°C
Storage and transportation temperature -20..+60°C
Humidity (non-condensing) 85%
Weight 800gr
Dimensions
External W x H x D [mm] 48,8 x 107,2 x 139,4
Cut-out W x H [mm] --
