ESA VT50 - Standard Series Rear View

405.1200.037.2 - Rel.: 2.21 of 25/02/2008
21-9

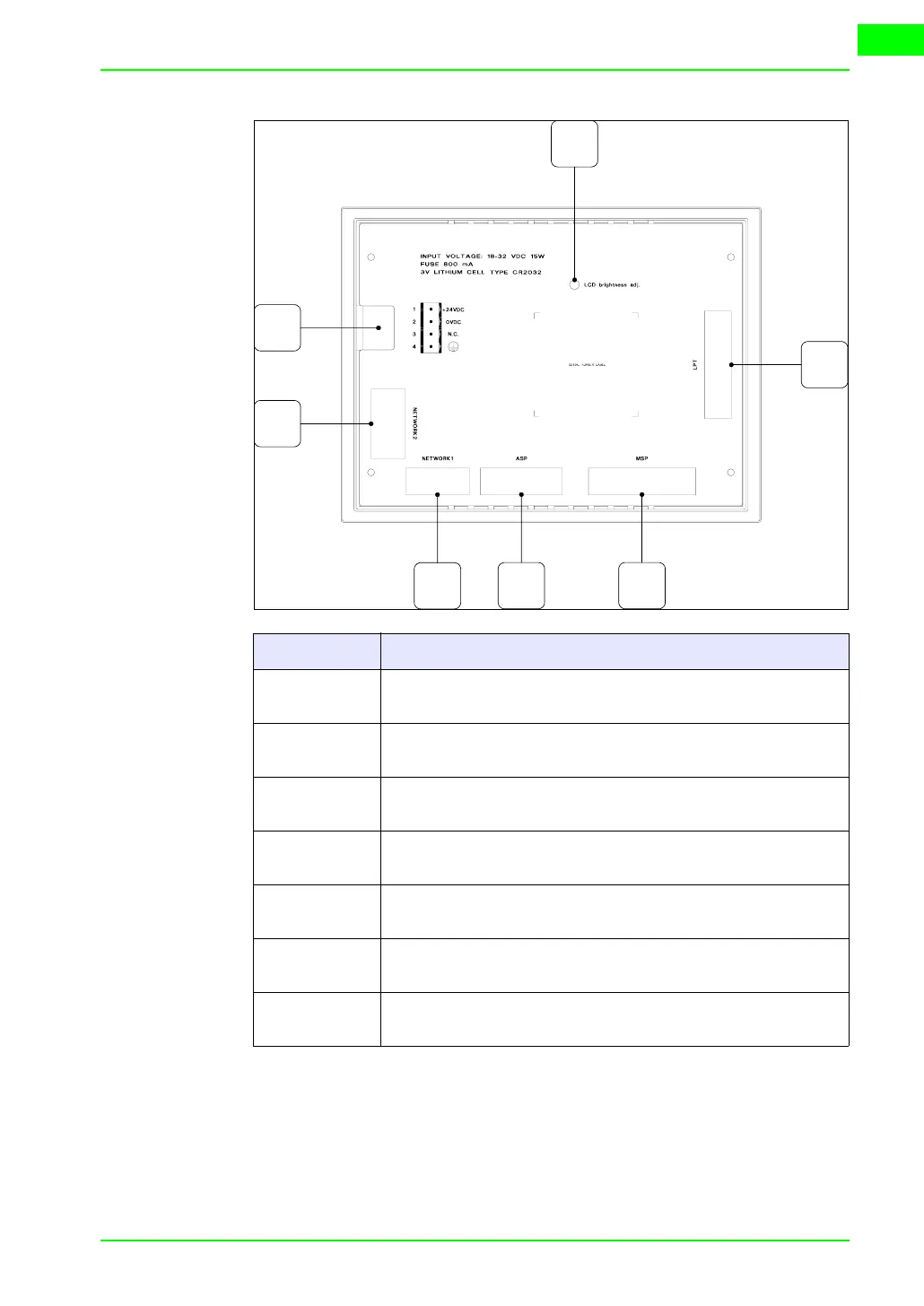

Standard
series rear
view
Position Function
A Power supply connector
B NETWORK2 serial port for network communication (Option)
C NETWORK1 serial port for network communication (Option)
D
ASP serial port for communicating with PC or other devices
(Option)
E MSP serial port for communicating with PLC/PC
F LPT port for connecting printer (Option)
G Trimmer for brightness control
G
A
C
D E
B
F
