ESA VT50 - Siei Drive; Siemens Drive

CHAPTER 41
Connection cables
405.1200.037.2 - Rel.: 2.21 of 25/02/2008
41-26
SIEI DRIVE
SIEMENS DRIVE
16
18
470 Ω
1/4 W
15
4
5
RTS
CTS
7
25
GND
TxRx-
22
10
TxRx+
220 Ω
1/4 W
7
470 Ω
1/4 W
-
0V5
+
SHD
VT side
D-Sub
25 pin male
Order code:
NOT CODED

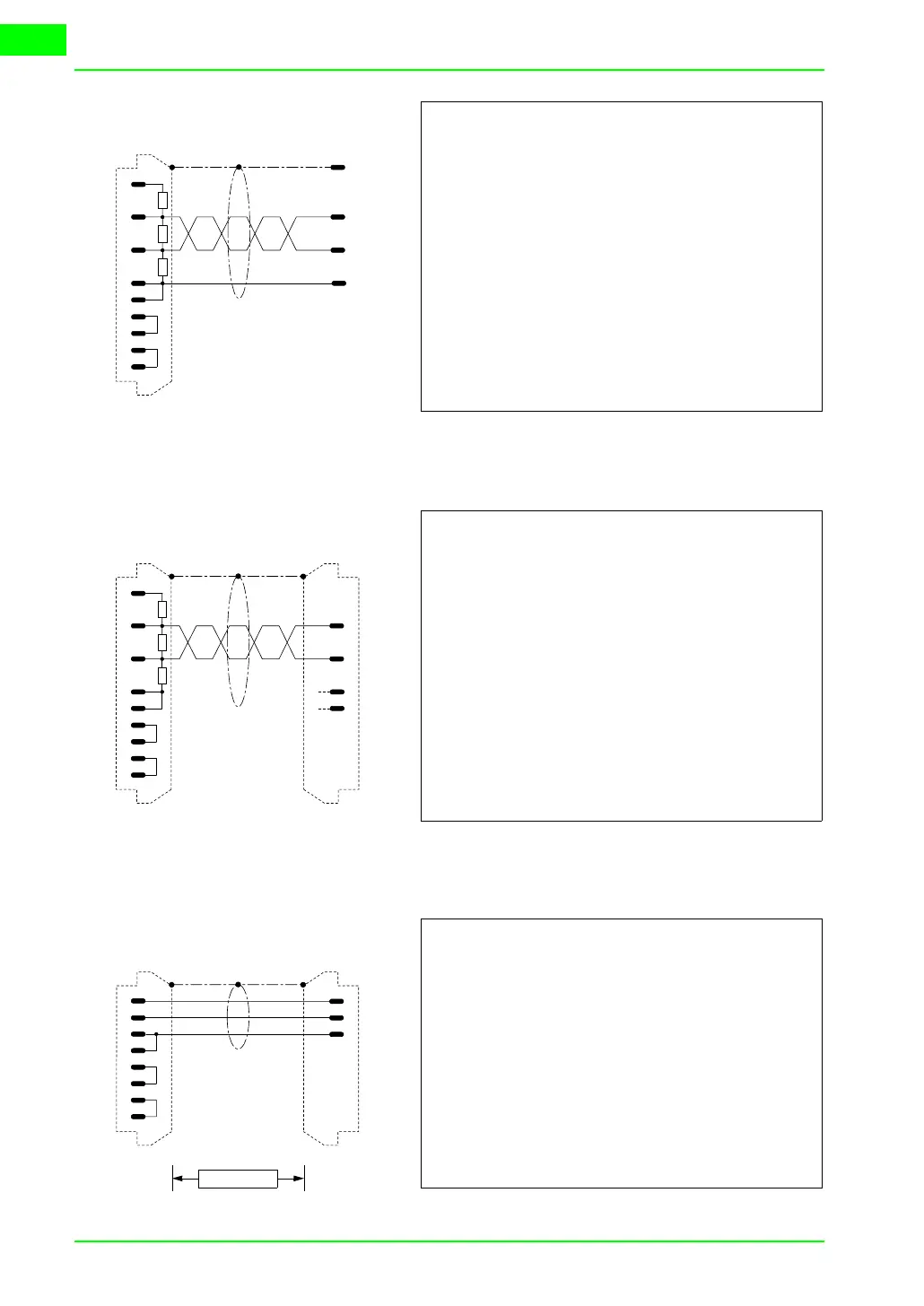

MOVITRAC - MOVIDRIVE
(RS485)
Communication card SEW-EURODRIVE USS21A required
(See “Chapter 41 -> Connecting the cable shield“)
Drive side
Terminals
16
18
470 Ω
1/4 W
15
4
5
RTS
CTS
TxRx-
22
3TxRx+
10
TxRx+
7TxRx-
220 Ω
1/4 W
470 Ω
1/4 W
+5V9
50V7
25
GND
7
VT side
D-Sub
25 pin male
Order code:
NOT CODED
SLINK 3
(RS485)
WARNING!!!
If the jumpers S18 and S19 on the regulator card are in position A (serial line gal-
vanically isolated from the regulator section), pin 5 and 9 must be connected to
the power unit.
(See “Chapter 41 -> Connecting the cable shield“)
Drive side
D-Sub
9 pin male
RxD
TxD
RTS
CTS
GND
3
2
7
25
TxD
RxD
GND
7
2
5
4
5
15
18
VT side
D-Sub
25 pin male
Order code:
NOT CODED
SIMOVERT
(RS232)
(See “Chapter 41 -> Connecting the cable shield“)
Drive side
D-Sub
9 pin male
Max. 15 m.
