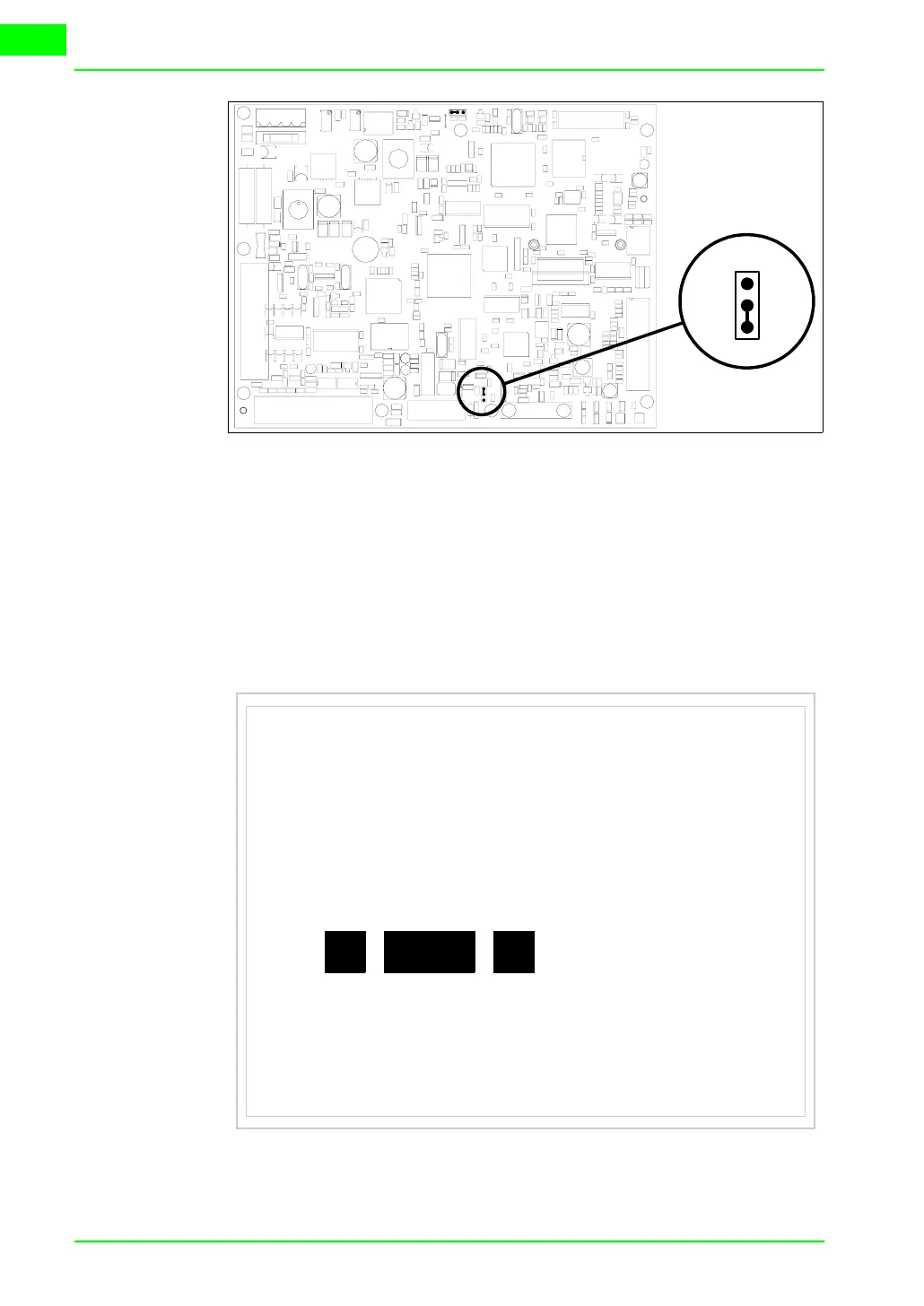

• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Introducing
the MAC
address
This paragraph relates only to the Ethernet series. The Media Access Control
(MAC) address unambiguously identifies each terminal connected in the Ether-
net network. The terminal is acquired with the address already programmed
and is shown on the display of the terminal in the transfer page.
The MAC address is permanently memorized in the terminal, but should it
T
J14
3
2
1
VT580W ETHERNET TRANSFER PAGE
Touch screen BOOT check : OK
Graphic controller BOOT check : OK
Graphic controller RAM check : OK
Main BOOT and RAM check : OK
Graphic controller synchronization : OK
Main FIRMWARE check : NOT PRESENT
Graphic controller FIRMWARE : ERROR
SELECT:
MAC addr:
00.0E.0E.xx.xx.xx
MSP EXITMemoCARD
To Next Page
