CHAPTER 6
Video terminal VT150W
405.1200.037.2 - Rel.: 2.21 of 25/02/2008
6-14

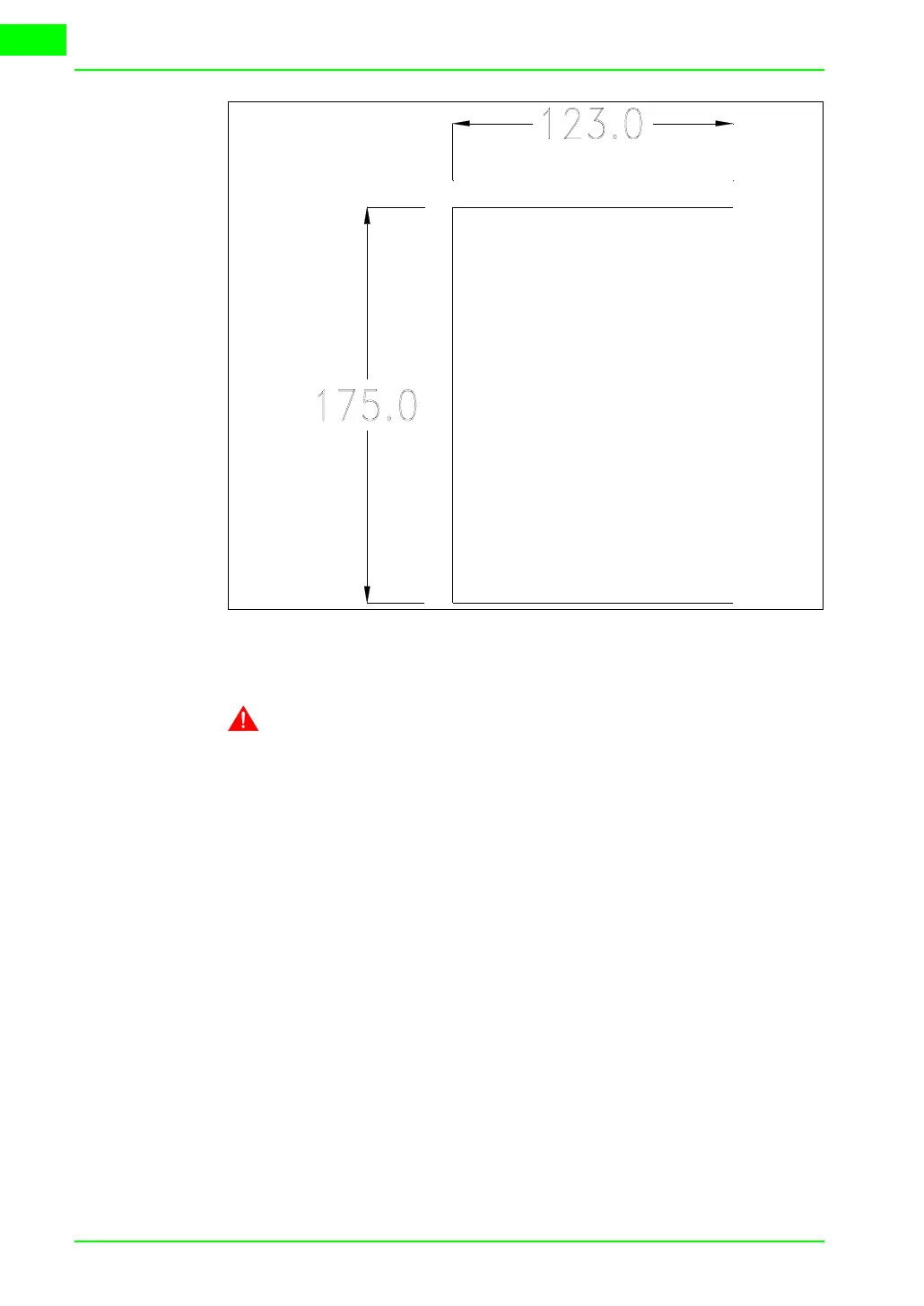

To fix the sealing gasket and secure the VT to the container see “Chapter 30
-> Mounting the terminal within the container“
.
Where accessories need to be fixed in or onto the VT terminal, you
are advised to do this before securing the VT to its container.
Accessories Any accessories should be mounted in accordance with the instructions in
the relevant chapter (see
“Chapter 34 -> Video terminal accessories“).
Termination of
CAN line
This paragraph applies only to the CAN series. The VT in question inte-
grates the termination resistances of the serial line (typically 120 ohms)
which can be inserted by means of a jumper (preset on 1-2, line not termi-
nated). To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J7.
