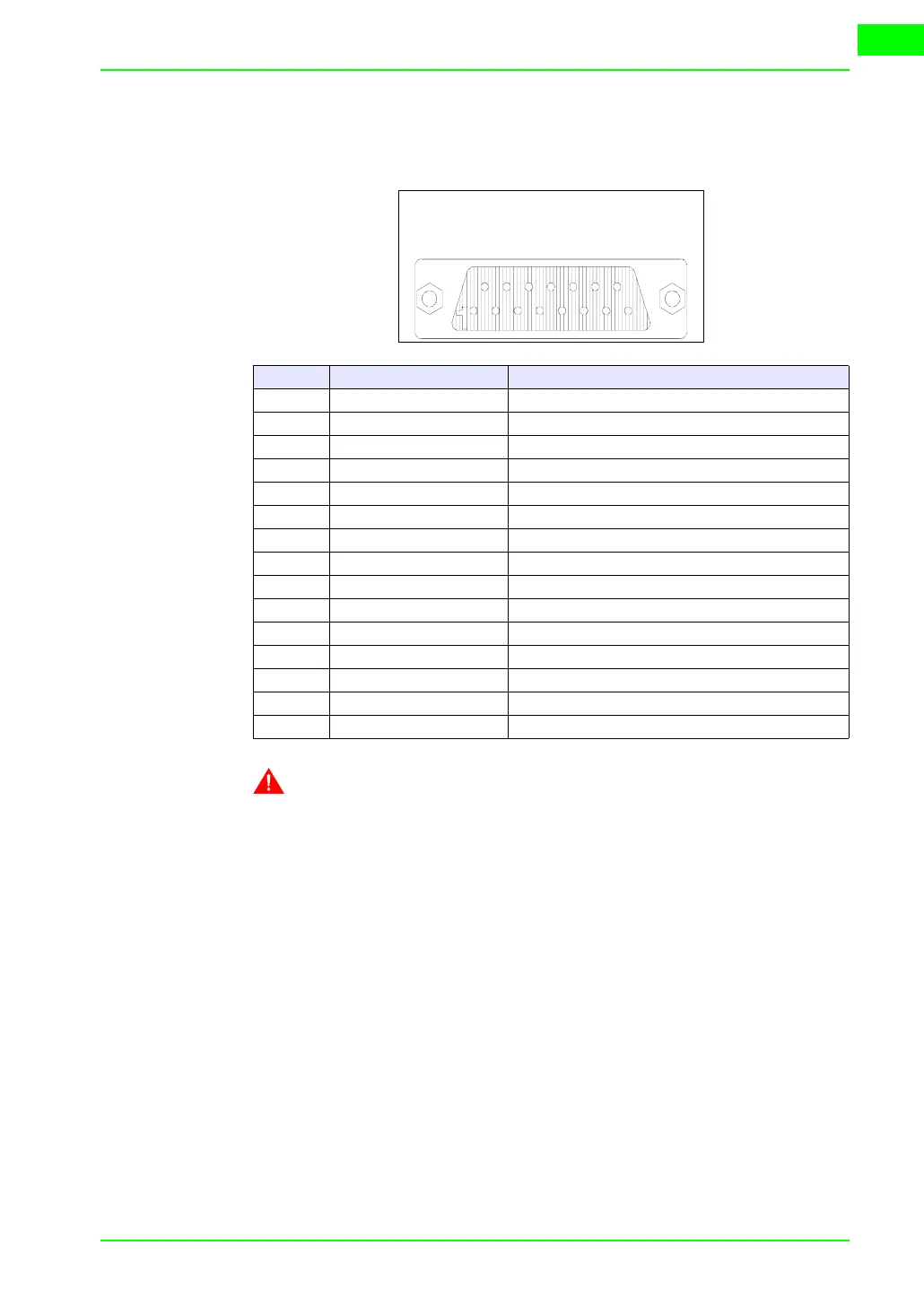

ASP-15L serial
port
The ASP (Auxiliary Serial Port) consists of a D-Sub 15 pin female connec-
tor and can communicate using RS232 and RS485. Unlike the ASP it does
not carry all signals.
Before connecting in RS485, check the polarities. With some
devices the Tx+/Rx+ and Tx-/Rx- signals or the polarities are
inverted.
Pin Signal Notes
1 N.C. Not connected
2 RX IN RS232
3 TX OUT RS232
4 N.C. Not connected
5 Signal GND Internal reference 0Volt
6 N.C. Not connected
7 N.C. Not connected
8 Tx/Rx +IN/OUT RS485
9 N.C. Not connected
10 N.C. Not connected
11 N.C. Not connected
12 N.C. Not connected
13 N.C. Not connected
14 N.C. Not connected
15 Tx/Rx -IN/OUT RS485
ASP-15L
Auxiliary Serial Port
15 pin female
