405.1200.037.2 - Rel.: 2.21 of 25/02/2008
34-21
The figures above relate to VT170W; basically the procedure for
insertion is the same for all the products in which this type of
module can be inserted (see Page 34-2).

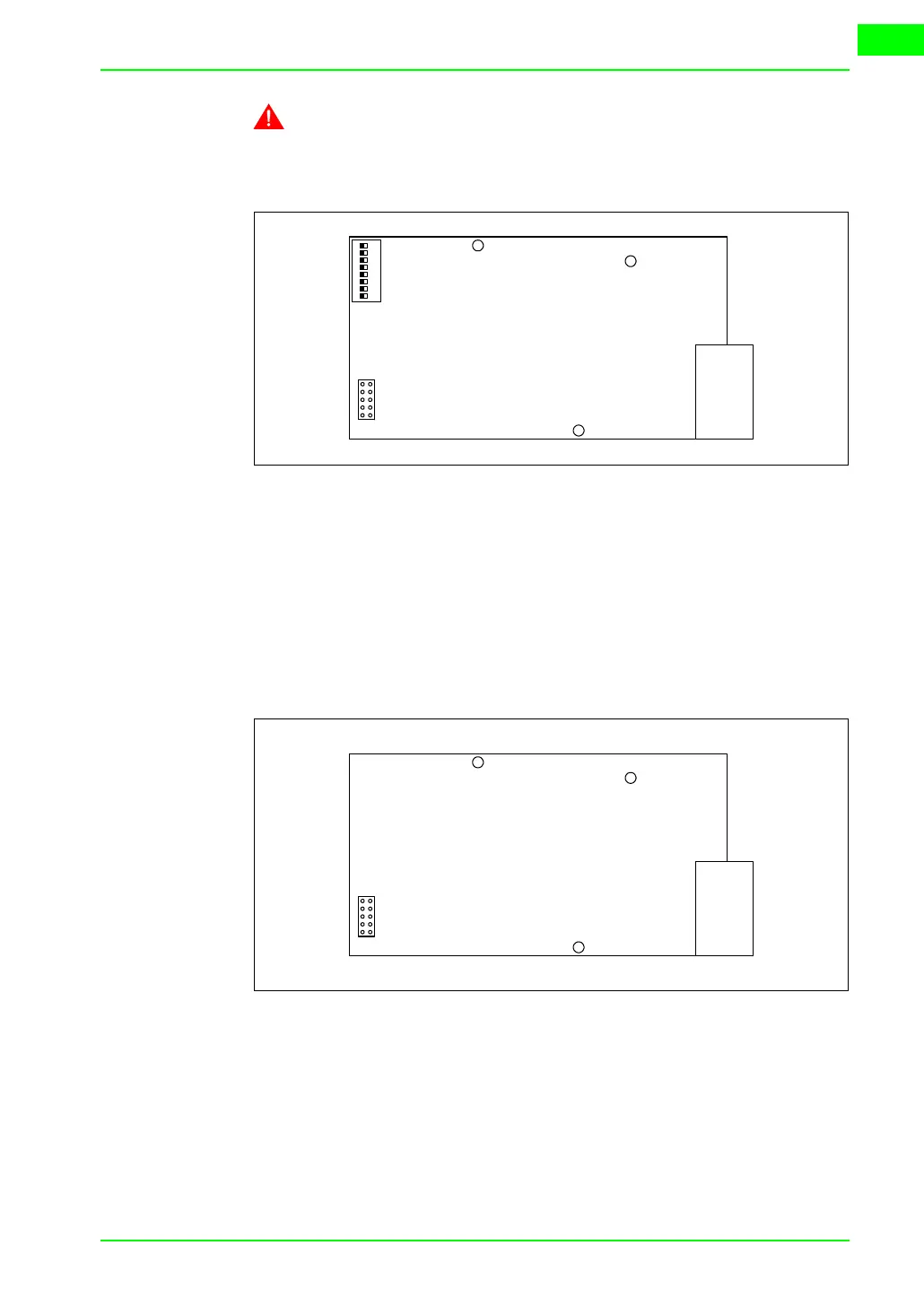

Integrated
Profibus-DP
module
The integrated module shown above enables a number of terminals to be
connected in a Profibus-DP network. (For further details on how terminals
are connected in the network see
“Chapter 35 -> Network connection“.)
The NETWORK1 communication port consists of a 9-pin female D-Sub
connector (see
“Chapter 31 -> Profibus-DP port“).
See Page 34-19 for how to insert the module in the VT.
RS485 Serial
module
The integrated module shown above allows many terminals to be connected
in an ESA-Net network. (For further details regarding the connection of ter-
minals in the network see
“Chapter 35 -> Network connection“.)
The NETWORK1 communication port consists of a 9-pin male D-Sub con-
nector (see
“Chapter 31 -> RS485 serial port“).
See Page 34-19 for how to insert the module into the VT.
1 2 3 4 5 6 7 8
ON
D-SUB
NETWORK1
D-SUB
NETWORK1
