CHAPTER 34
Video terminal accessories
405.1200.037.2 - Rel.: 2.21 of 25/02/2008
34-28
The external power supply for this card can also come via a 4-pin connector
or a jack.
See
“Chapter 2 -> Power Supply“ for connecting the power supply.

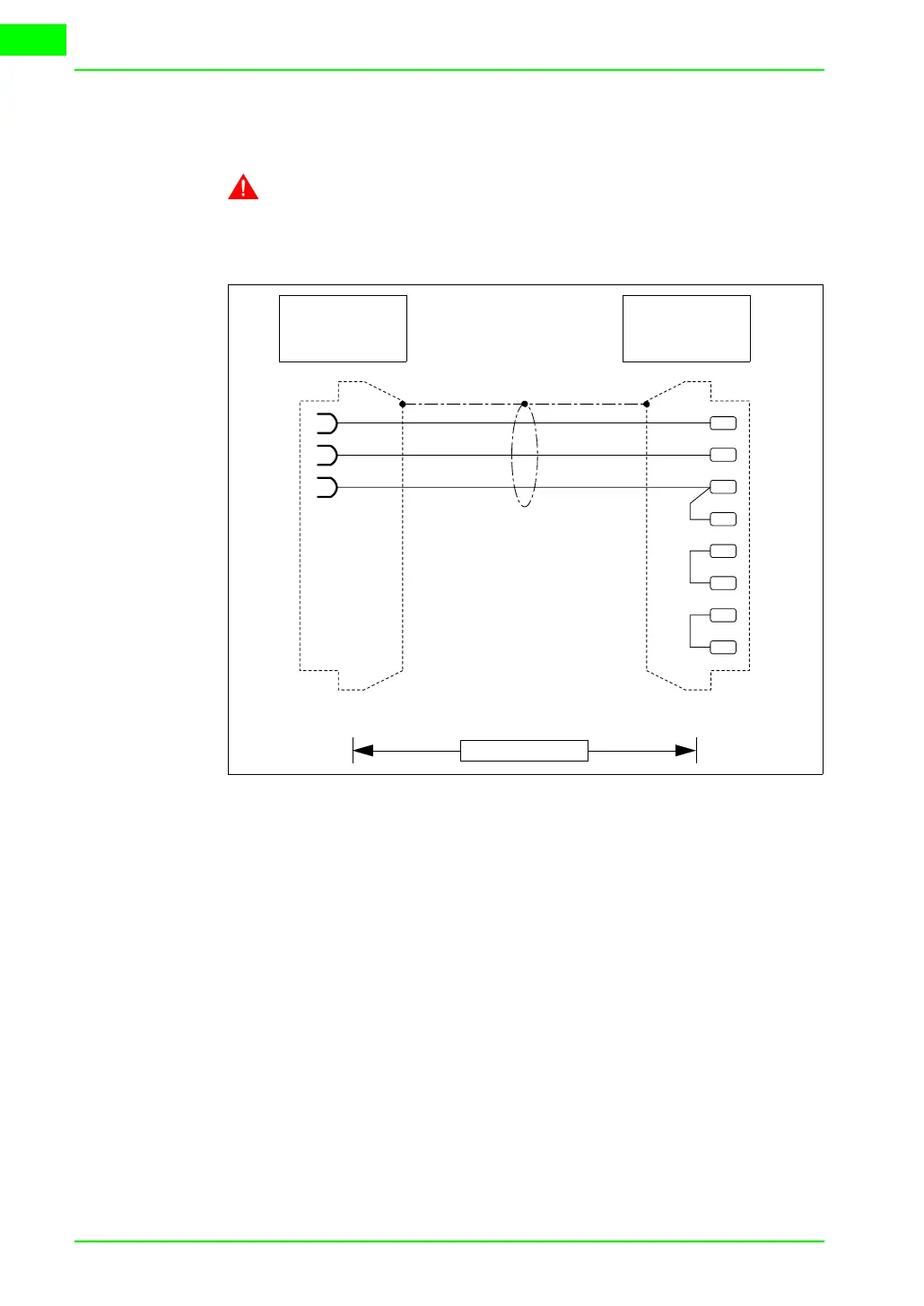

The connection to the VT uses the following cables.
3
2
5
TxD
RxD
GND
3
2
7
4
5
15
18
25
RxD
TxD
GND
RTS
CTS
DEVICE
Side
9 pin female
VT Side
MSP
25 pin male
Max. 15 m.
