ECI Multi Functional Weighing Controller Operating Manual
Page 147

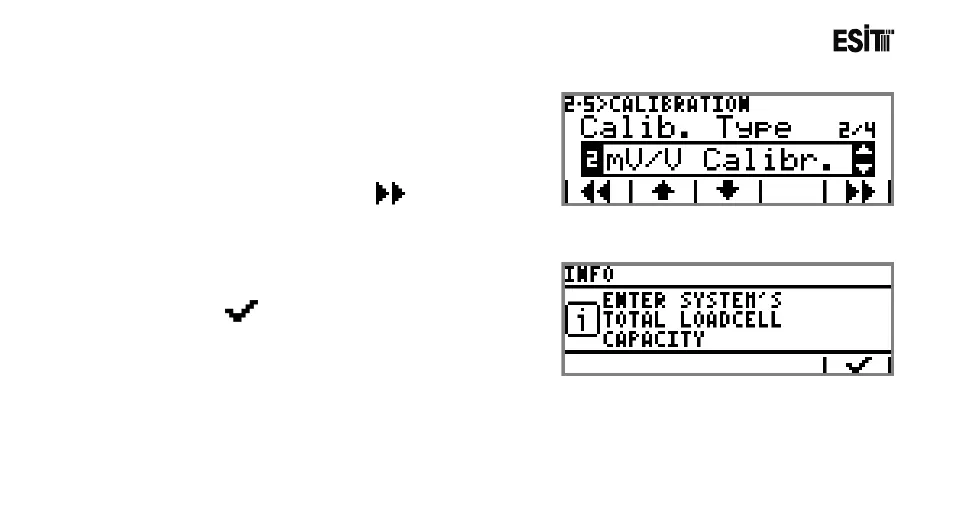

4) It is the Calibration Type selection. The options are;
1) Load Calibration
2) mV/V Calibration
3) Coefficient Calibration
4) Zero Calibration
“mV/V Calibration” is selected and key is pressed.
5) mV/V calibration is made according to the total load cell
capacity of the system. The information screen indicating
this is shown. Key is pressed to proceed.
