Single Partition: The weighing device with a single scale interval and capacity.

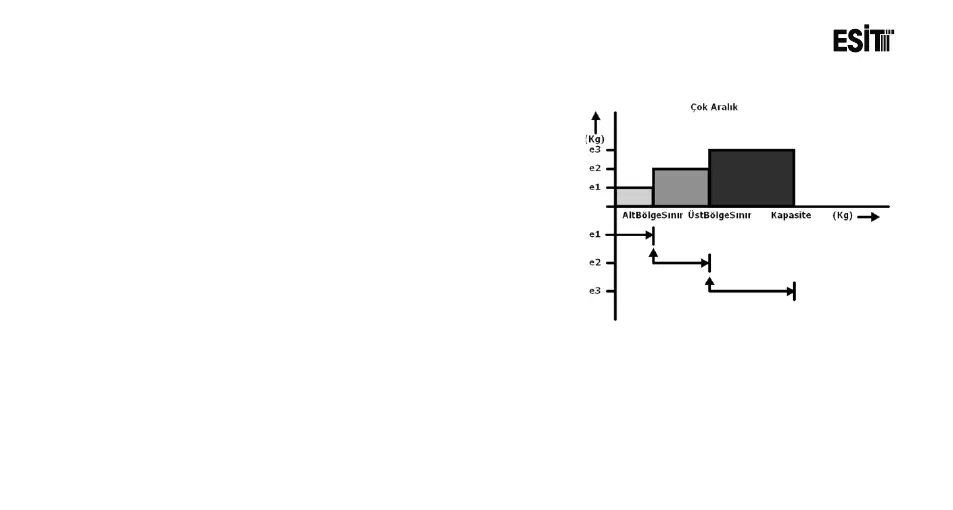

Multi Interval: In this operation there are 3 different scale intervals and
capacities. There is a different scale interval in each capacity range;
Weight < LowerZoneLimit + 9e1 e1 (the first zone scale interval)
LowerZoneLimit + 9e1 < Weight < UpperZoneLimit + 9e2 e2 = 2*e1
(the second zone scale interval)
UpperZoneLimit + 9e1 < Weight < Capacity + 9e3 e3 = 2*e2 (the
third zone scale interval)
"e1" scale interval is determined with Resolution parameter. e2 and e3
are determined automatically. If the respective zone capacity +9e is
observed when the weight is increased, it is proceeded to the next
scale interval. When the weight is decreasing, it is decreased to the
previous scale interval when it is shifted from the upmost zone to the
lowest one or from the lower zone to the 1. zone. The scale interval can
be the multiples of 1,2 and 5. For example when e1=2, e2=2*e1=2*2=4 and calculated as 5 which is the next scale
interval.
