ECI Multi Functional Weighing Controller Operating Manual
Page 92

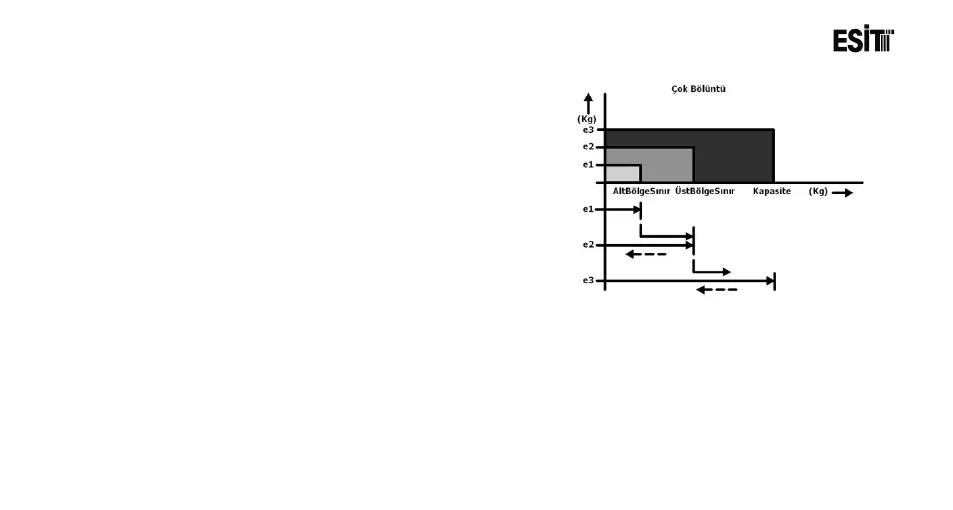

Multi Partition: In this operation there are 3 different scale intervals
and capacities. There is a different scale interval in each capacity
range;
e1 (first zone scale interval): is determined with Resolution
parameter
e2 = 2*e1 (the second zone scale interval): is determined
automatically
e3 = 2*e2 (the third zone scale interval): is determined automatically
If the respective zone capacity +9e is observed when the weight is
increased, it is proceeded to the next scale interval. However, the
scale interval does not change when shifting from the 3. zone to the
2. one or from the 2. zone to the 1. one when the weight is
decreasing. It is shifted to e1 when the weight is below 0,5 e(i).
The scale interval can be the multiples of 1,2 and 5. For example when e1=2, e2=2*e1=2*2=4 and calculated as 5
which is the next scale interval. It is shifted to 3 partition operation mode when the measuring type is selected as "Multi
Interval" or "Multi Partition". In such case, following menus are displayed respectively in order to determine the upper
and lower Zone limits.In multi partition systems Capacity>UpperZoneLimit>LowerZoneLimit must be entered.
