Setup
Power Blazer 175
Modify Structure - OTN BERT

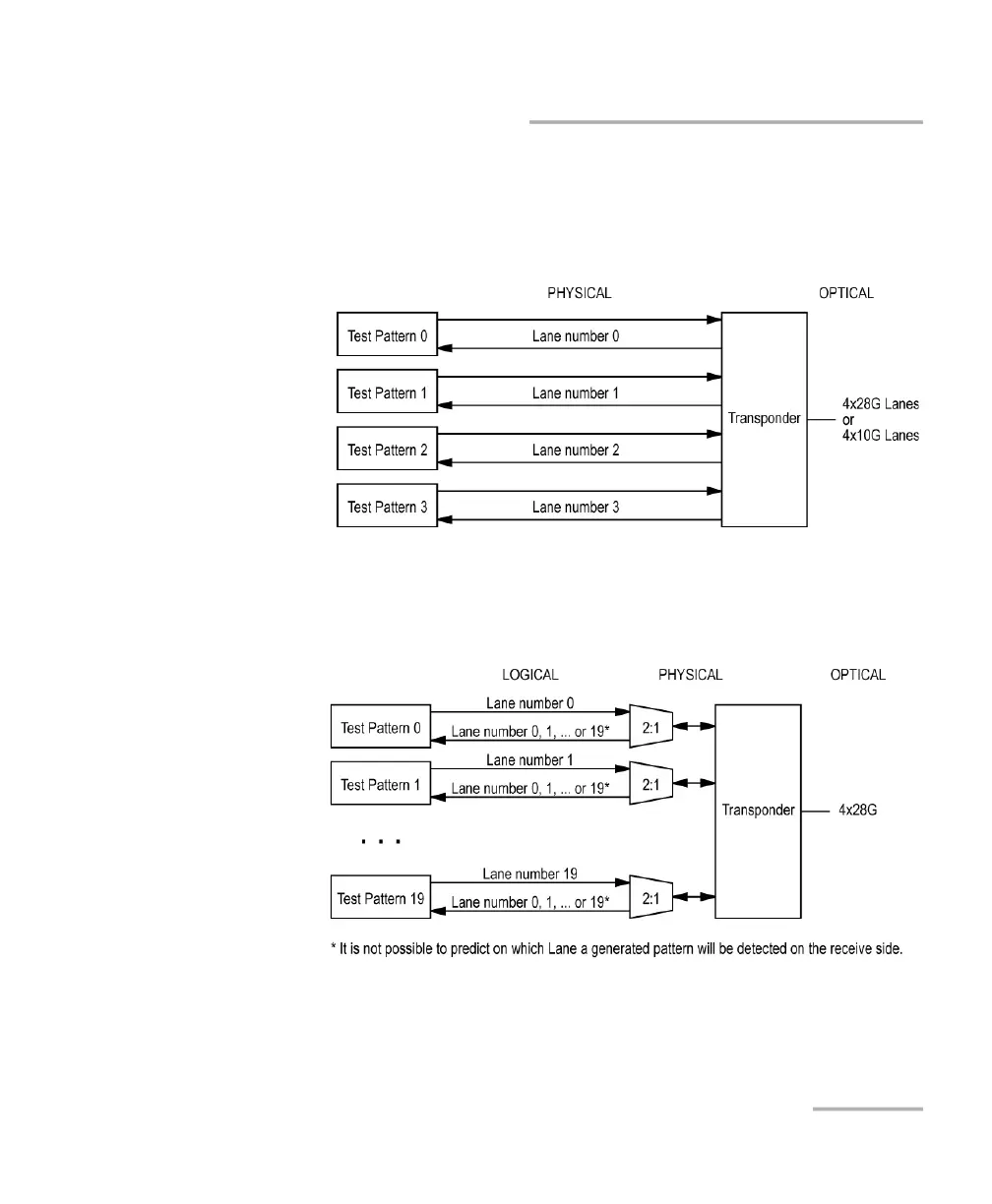

4 Unframed Physical Lanes: Independent test pattern in each
physical lane. Available with: OTU3 (4 Lanes) [43.018 Gbit/s],
OTU3e1 (4 Lanes) [44.571 Gbit/s], OTU3e2 (4 Lanes)
[44.583 Gbit/s], and OTU4 (4 Lanes) [111.81 Gbit/s]
20 Unframed Logical Lanes: Independent test pattern in each
logical lane. Available with OTU4 (4 Lanes) [111.81 Gbit/s].
For 88200NGE:
