CHAPTER 27
PAGE 3
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT
27-00-00 GENERAL
(Refer to Figure 1) The EXTRA 300LT is standard equipped
with full dual primary flight controls including conventional
control sticks and adjustable rudder pedals. The control
surfaces are operated by a direct mechanical linkage. The
control surface deflections are shown in Figure 2.
For rear torque tube bearing lubrication there is a rubber
plugged hole in the bottom fuselage cover.

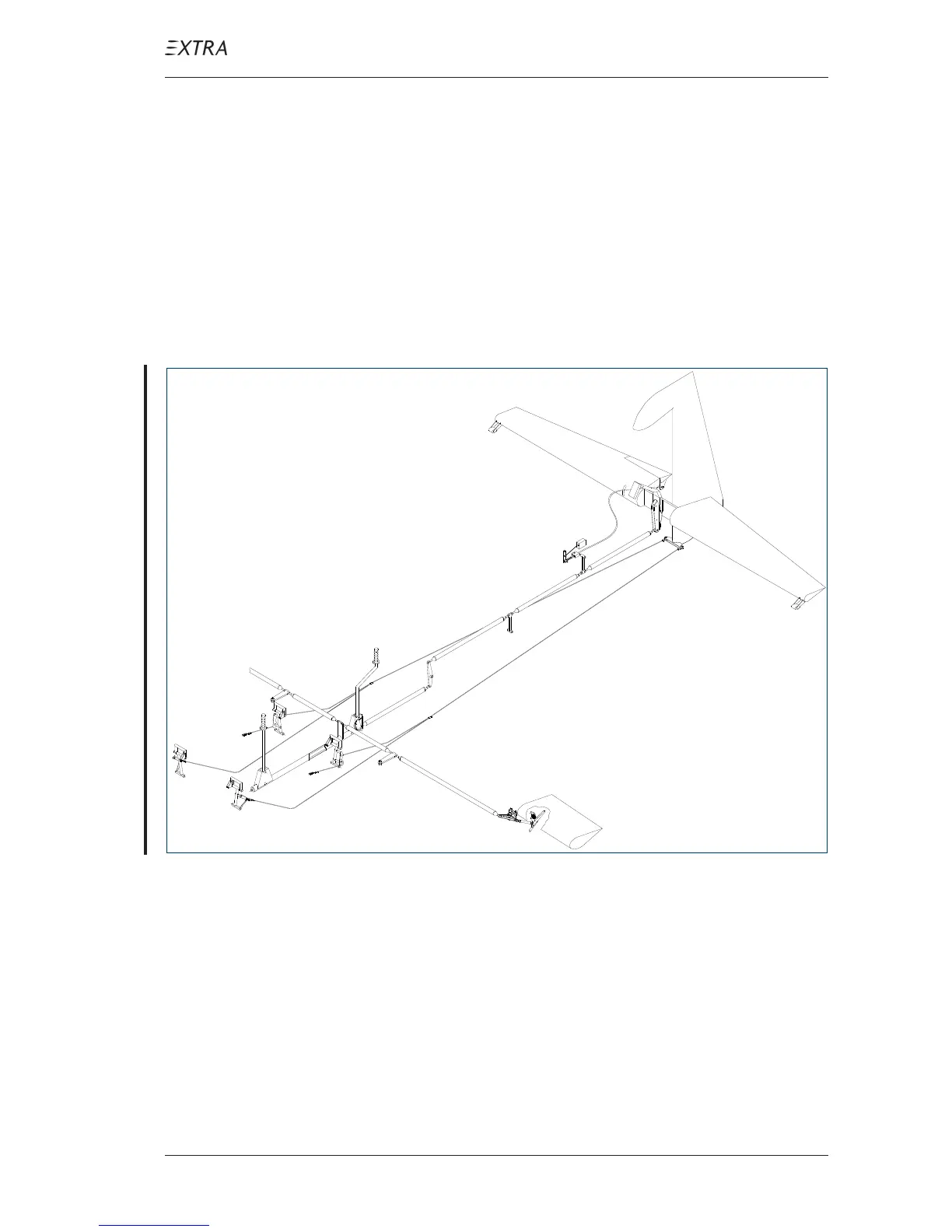

Figure 1 Controls
