CHAPTER 33
PAGE 6
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
33-40-11 Navigation/Strobe Light
Removal/Installation
Refer to Figure 1.
W A R N I N G High Voltage! Wait 5 minutes after shutting off before
starting any work on the strobe light system.
1 Disconnect the battery and wait 5 minutes.
N O T E To change a navigation LED light or glass the removal
of the Phillips screws (1) is sufficient for access.
2 Remove the lighting cover Phillips screws (6).
3 Remove the lighting cover and pull out the strobe light (2)
some centimetres.
4 Remove the lighting unit attachment bolts (3).
5 Remove the lighting unit.
6 Install in reverse sequence of removal after applying Silicon
between the wing tip and the lighting unit.

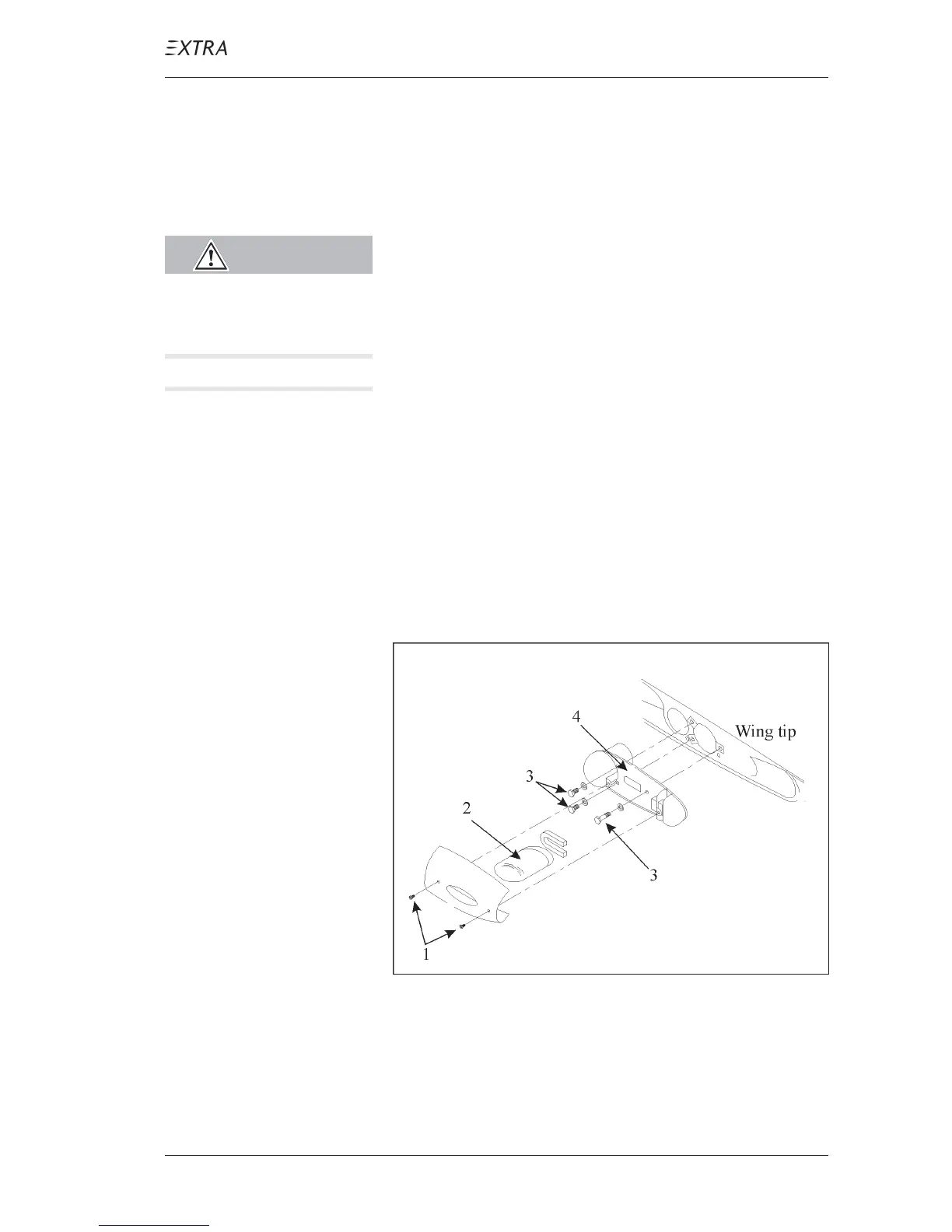

Figure 1 Navigation/Strobe Lights Removal/Installation
