CHAPTER 33
PAGE 7
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
33-40-12 Strobe Light Power Supply
Removal/Installation
Refer to Figure 2.
W A R N I N G High Voltage! Wait 5 minutes after shutting off before
starting any work on the strobe light system.
1 Disconnect the electrical wiring of the power supply (1).
2 Remove the attachment bolts (2) and disconnect the ground
bonding lead.
3 Remove the power supply.
N O T I C E DC units are polarity sensitive. Black lead is negative.
4 Install in reverse sequence of removal.

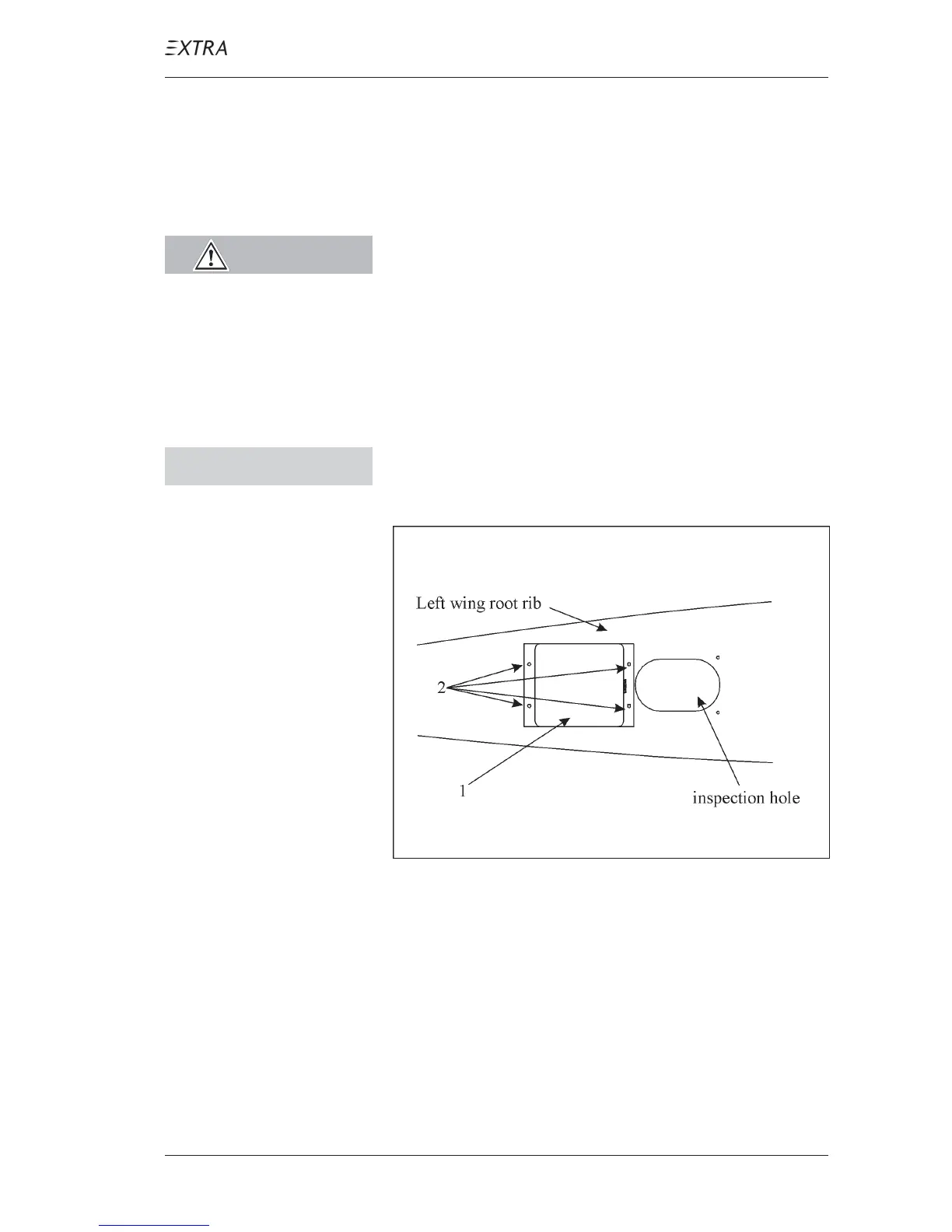

Figure 2 Strobe Light Power Supply Removal/Installation
