CHAPTER 53
PAGE 5
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
53-00-01 Canopy
Removal/Installation
1 Open canopy.
N O T I C E Support the canopy by hand before disconnecting the
opening limiter strap.
2 Remove the attachment bolt of the opening limiter strap.
3 Push canopy to front and remove.
4 Install in reverse sequence of removal.
53-00-02 Canopy Glass
Replacement
1 Remove canopy as per Chapter 53-00-01.
2 Remove the old canopy glass.
3 Gently remove remaining glue with a chisel.
4 Sand down the bonding area on the canopy frame completely
(sandpaper grit/P120). Check that there are no reflecting
areas left.
Canopy Frame
2 – 4 mm
Canopy Glass
Positionin
Line

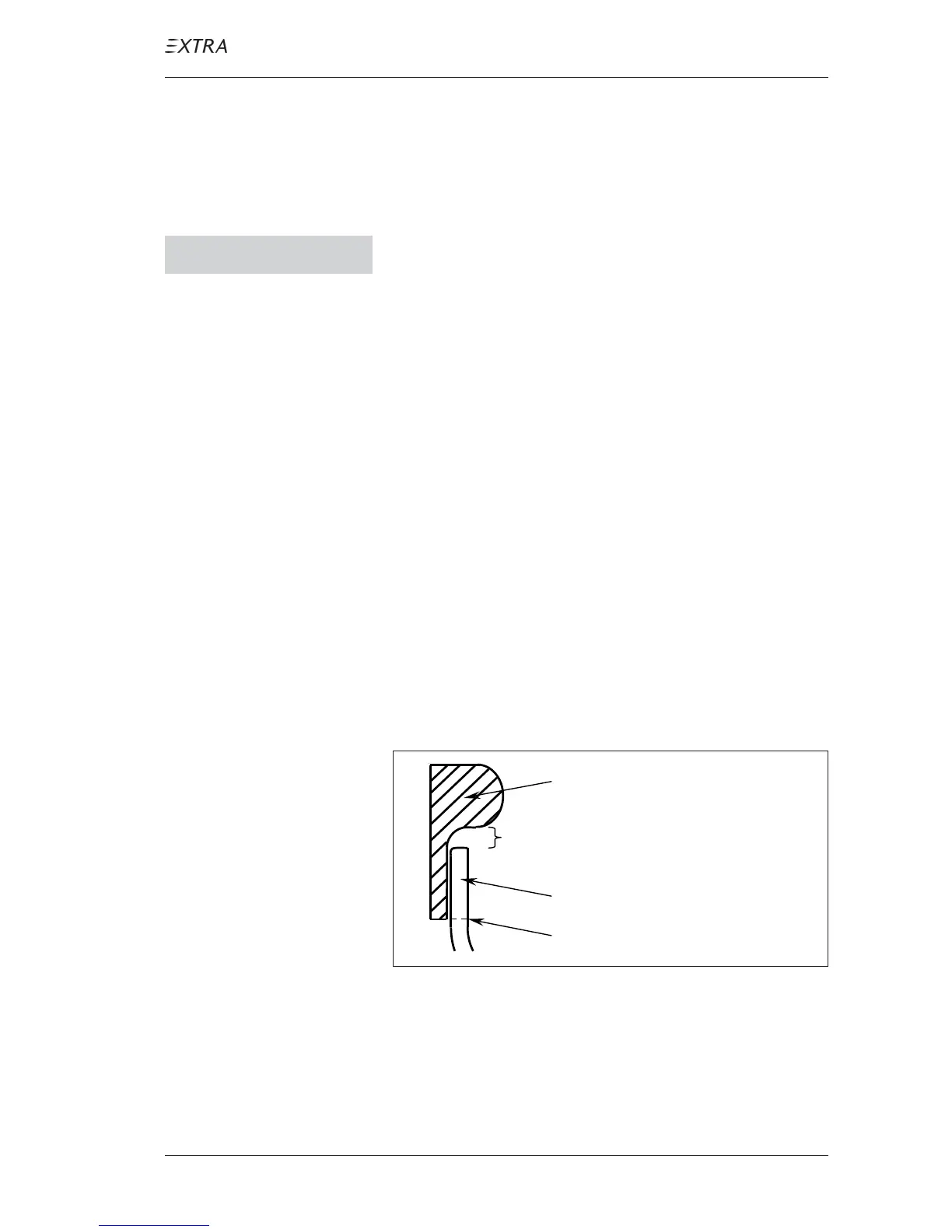

Figure 2 Typical Cross Section of Canopy Bonding Area
5 Fit the new canopy glass in the canopy frame. Opening
between canopy glass and canopy frame about 2-4mm.
