MAINTENANCE MANUAL EXTRA 300LT
Position markings
Position markings

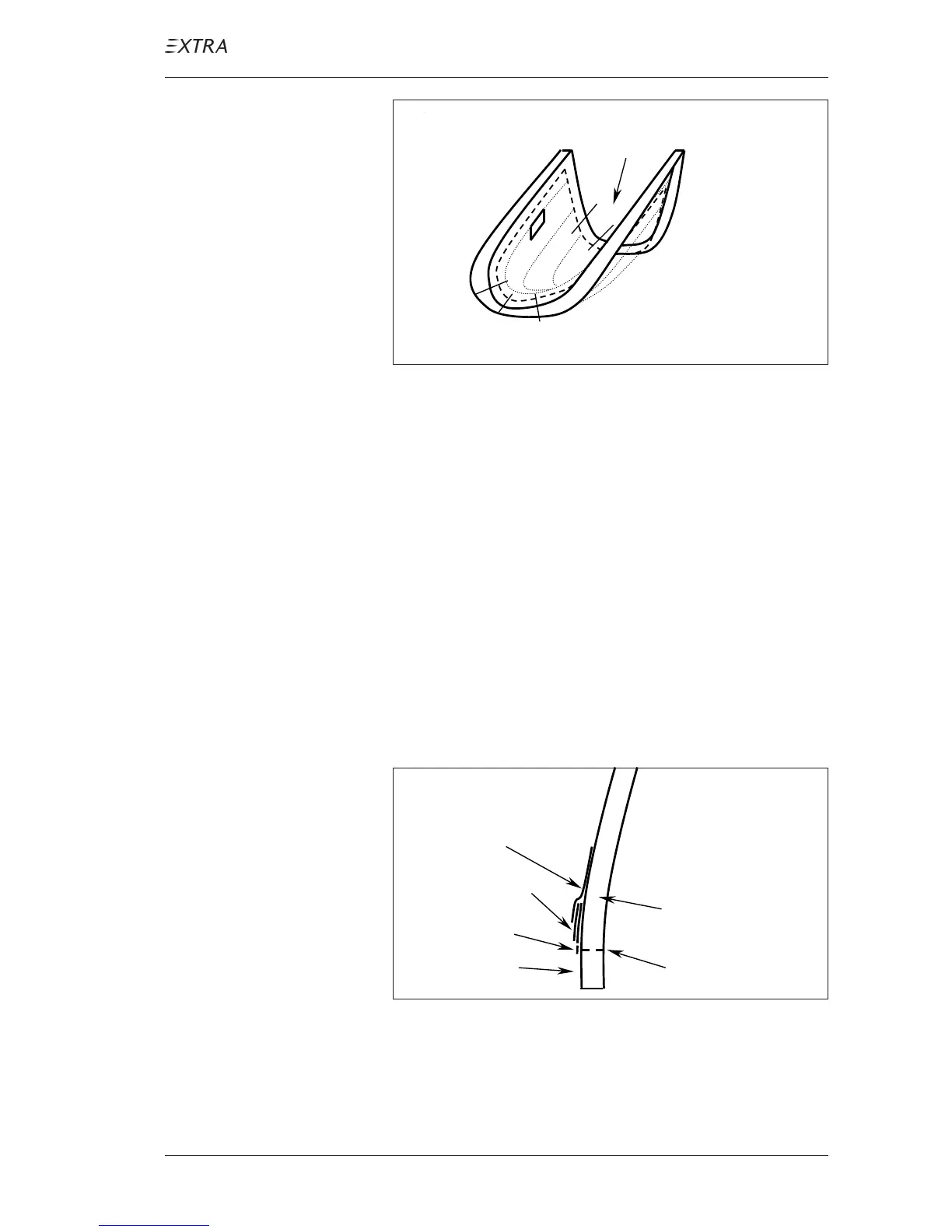

Figure 3 Canopy Position Markings
6 Secure the canopy glass in the frame. Draw a positioning
line (see Figure 2) and position markings on the inside (see
Figure 3).
7 Prepare canopy glass for bonding.
8 Remove a strip (width approx. 50mm) from the protective
layer from the outside along the canopy glass bonding area.
9 Place fine tape (width 3mm) on the outside opposing the
positioning line on the inside.
10 For protection purposes, place 3 layers of tape as depicted
in figure 4.
11 Sand down the canopy glass up to the fine tape line (use
Scotch Brite Handpad Medium). Check that there are no
reflecting areas left.
50 mm Tape
2 x 20 mm Tape
Fine Tape
Bonding Area
Canopy Glass
Inside Line
Figure 4 Canopy Tape Markings
