CHAPTER 73
PAGE 9
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 12. June 2015
Rigging
1 Move the rear throttle control lever (5, Figure 3) in idle
position parallel to the adjoining fuselage structure steel
tube (as shown in figure 3).
2 Check throttle lever (1, Figure 4) of the fuel injector servo
reached travel stop for closed throttle.
3 Check usable stroke of control cable. The over-travel of the
control cable in retracted and extended position shall be 8
to 13 mm [5/16"-1/2"]. Ref. to figure 2 of Chap. 20-10-09.
1
2
4
3

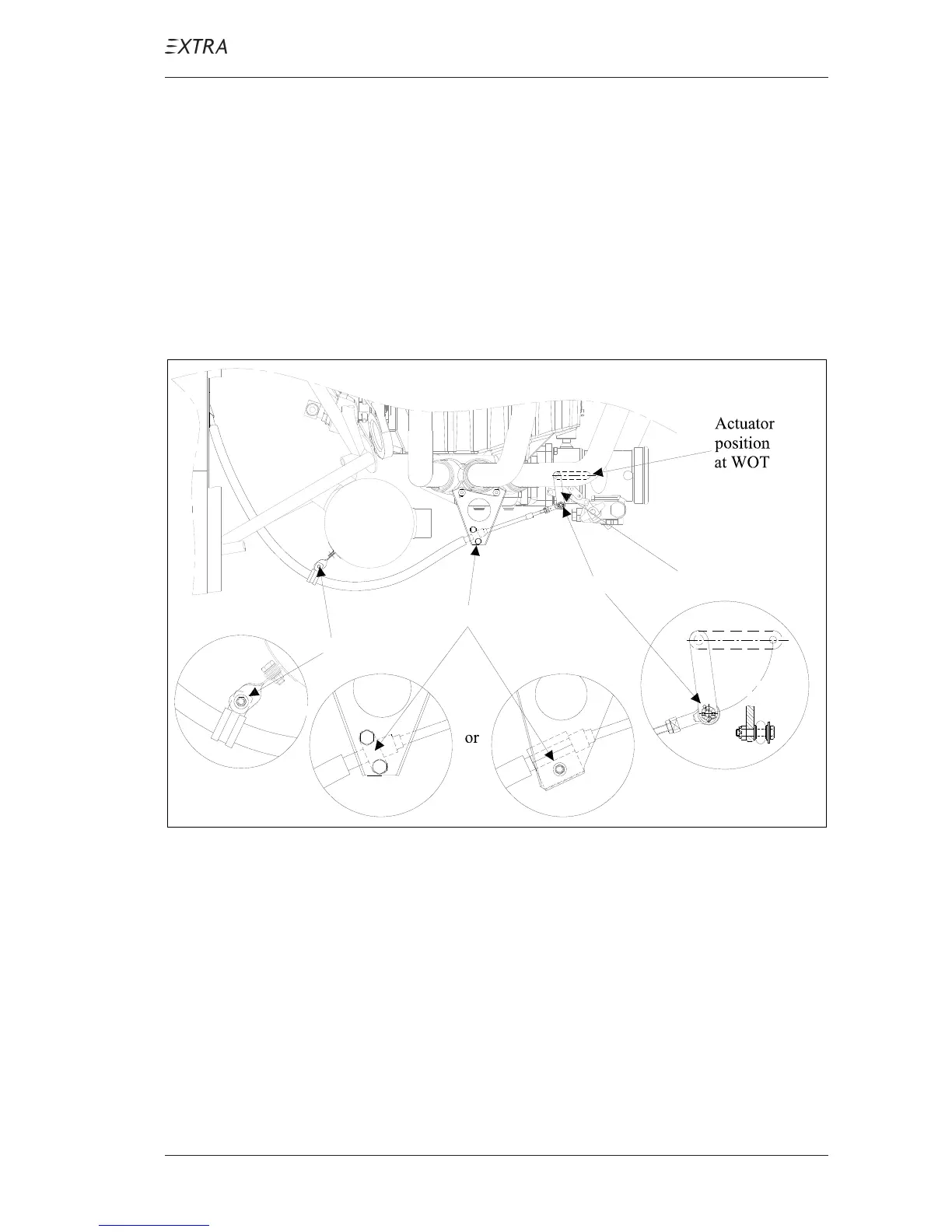

Figure 4 Throttle Control Cable Rigging
4 If necessary adjust rod ends (2, Figure 4; 6, Figure 3) to
ensure correct over-travel by the following steps:
a Remove cotter pin, castle nut, washers and bolt of the rod
end from throttle lever (1, Figure 4) and rear throttle control
lever (6, Figure 3).
b Loosen the counter nut at rod ends and adjust travel positions
and over travel by turning related rod end(s). Ensure thread
is visible in the inspection hole when fastening. Apply
inspection lacquer on the counter nut.
c Reconnect the rod ends.
