Using Redundant Management Modules
December 2000 5 - 5

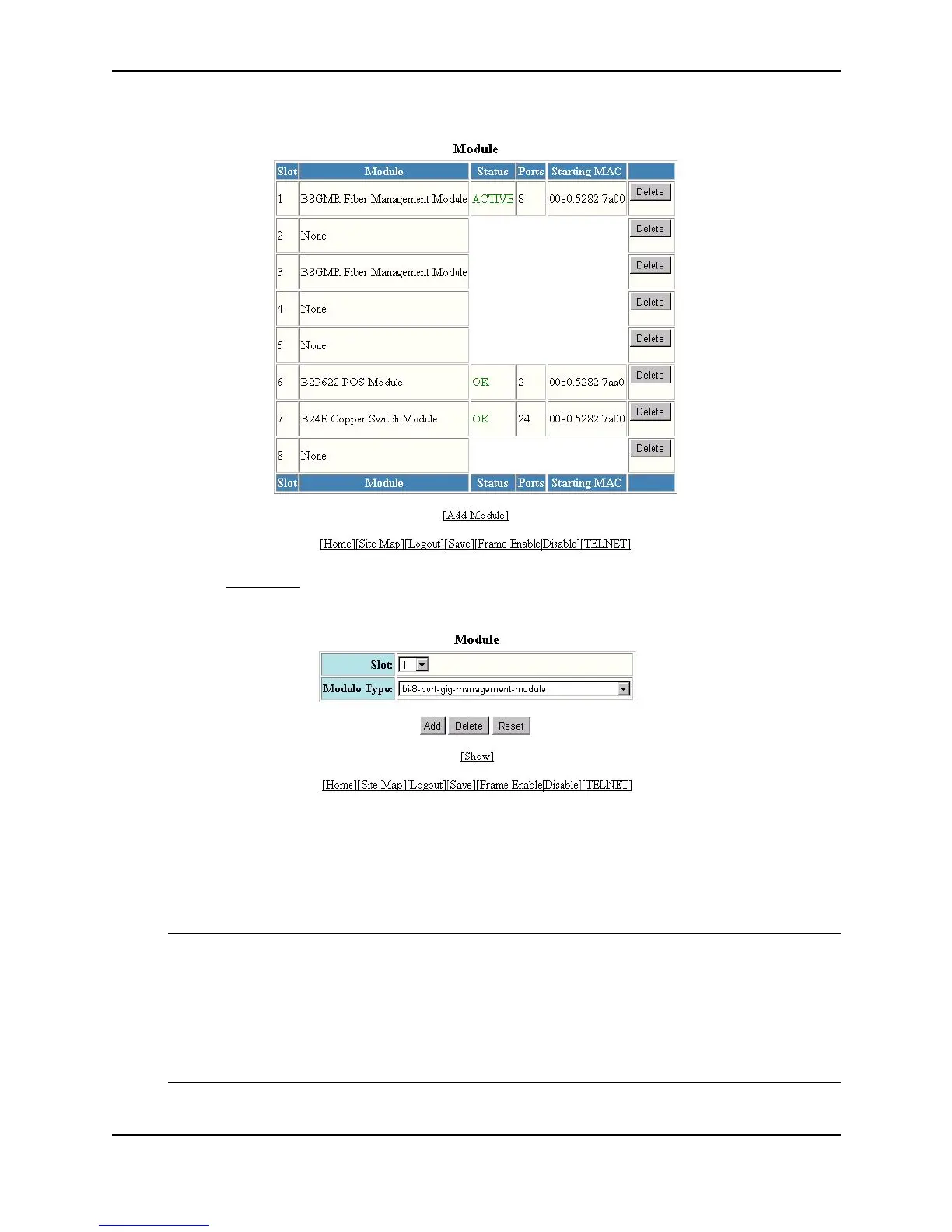

3. Click the Add Module
link to display the following panel.
4. Select slot number from the Slot pulldown menu.
• Slots in a 4-slot chassis are numbered 1 – 4, from top to bottom.
• Slots in an 8-slot chassis are numbered 1 – 8, from left to right.
• Slots in a 15-slot chassis are numbered 1 – 15, from left to right.
NOTE: The slots in a 15-slot chassis are divided among 4 internal regions. Slots 1 – 4 belong to the same
region; slots 5 – 8 belong to the same region; slots 9 – 12 belong to the same region, and slots 13 – 15 belong
to the same region. If you are using redundant management modules, Foundry recommends that you place
both management modules in slots belonging to the same region. For example, if you place one
management module in slot 5, Foundry recommends that you place the other management module in slot 6,
7, or 8.
This note does not apply to 4-slot or 8-slot chassis.
5. Select the module type from the Module Type pulldown menu.
