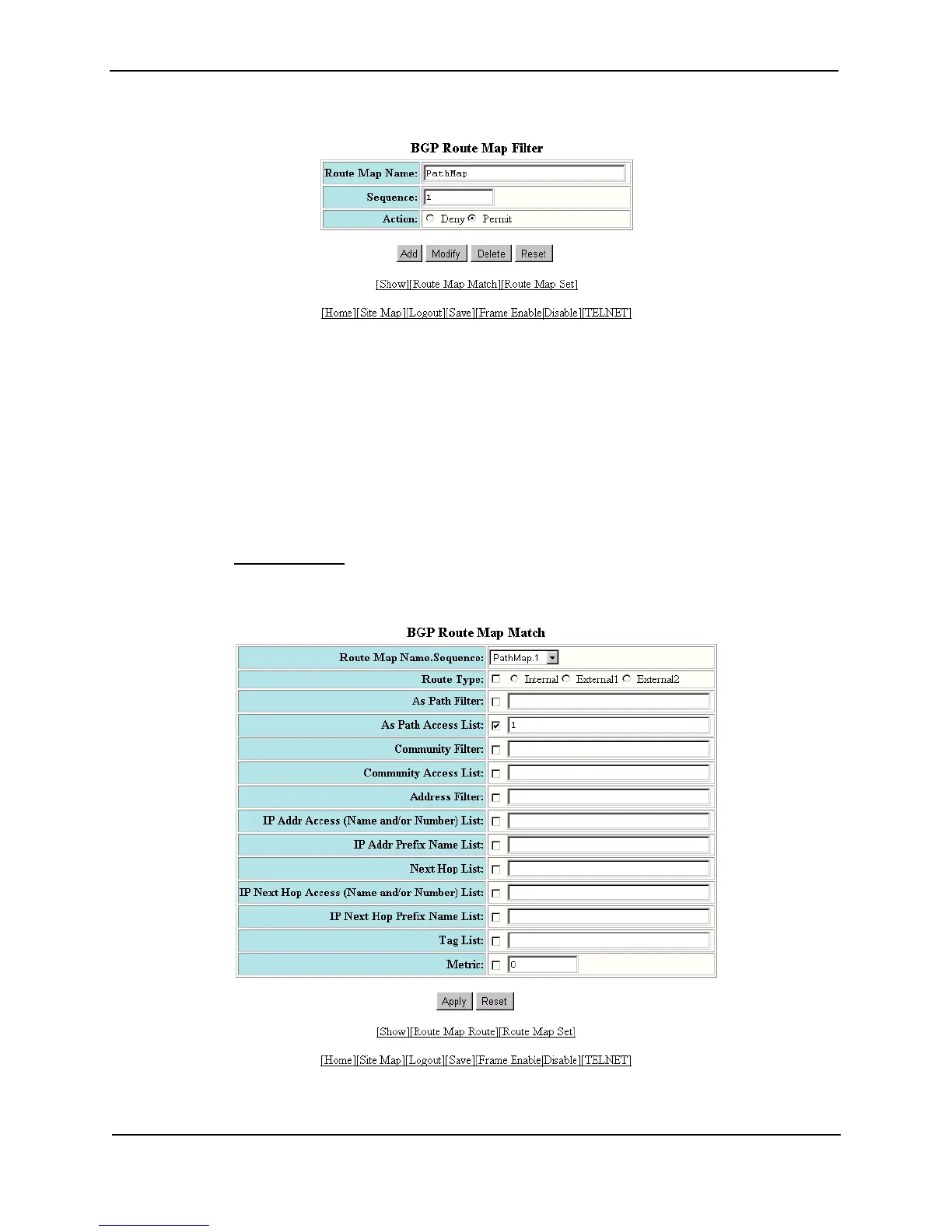

5. Enter the name of the route map in the Route Map Name field.
6. Enter the sequence (instance) number in the Sequence field. The Layer 3 Switch applies the instances in
ascending numerical order. Once an instance comparison results in a “true” evaluation, the Layer 3 Switch
stops applying instances and applies the match and set statements you configure for the instance.
7. Select the action you want the Layer 3 Switch to perform if the comparison results in a “true” value:
• If you select Deny, the Layer 3 Switch does not advertise or learn the route.
• If you select Permit, the Layer 3 Switch applies the match and set statements associated with this route
map instance.
8. Click the Add button to apply the changes to the device’s running-config file.
9. Select the Route Map Match
link at the bottom of the panel to display the BGP Route Map Match panel, as
shown in the following example.
