Configuring AppleTalk
December 2000 24 - 11

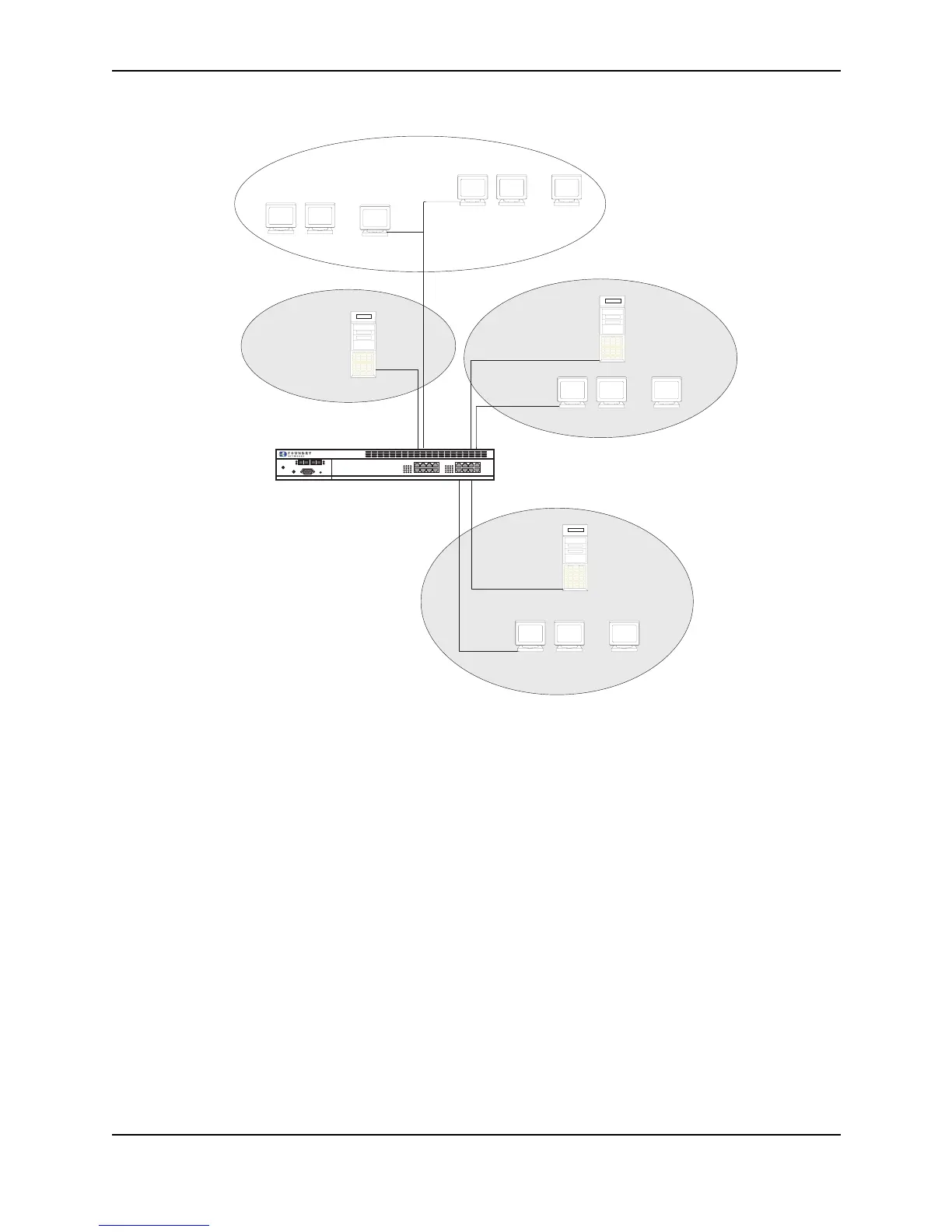

Figure 24.2 AppleTalk zones in a network
EXAMPLE:
Suppose you want to deny access to the Finance server to users within the Marketing and Field Service zones on
the network, as shown in Figure 24.2. To define a zone filter for this, use one of the following methods.
USING THE CLI
BigIron(config)# interface e1
BigIron(config-if-1)# appletalk deny zone finance
BigIron(config-if-1)# int e3
BigIron(config-if-3)# appletalk deny zone finance
BigIron(config-if-3)# int e13
BigIron(config-if-13)# appletalk deny zone finance
BigIron(config-if-13)# int e15
BigIron(config-if-15)# appletalk deny zone finance
USING THE WEB MANAGEMENT INTERFACE
1. Log on to the device using a valid user name and password for read-write access. The System configuration
dialog is displayed.
2. Click on the plus sign next to Configure in the tree view to expand the list of configuration options.
3. Click on the plus sign next to AppleTalk in the tree view to expand the list of AppleTalk option links.
FieldService
Zone
Apple
Server
Link
Activity
Link
Activity
Power
Console
Port 13Port 1 Port 15
Apple
Server
Port 10 Port 14
...
AppleTalk
...
AppleTalk
...
NetIron
Port 3
Marketing
Zone
Finance
Zone
...
100.50
200.50 300.50
AppleTalk
400.50
Network 500
Network 600
Marketing Zone
FieldService Zone
AppleTalk Addresses Assigned to Ports
Port 1 = 200.50
Port 3 = 100.50
Port 10 = 600.50
Port 13 = 300.50
Port 14 = 500.50
Port 15 = 400.50
500.50600.50
Network 300
Network 400
Network 200
