EXAMPLE:

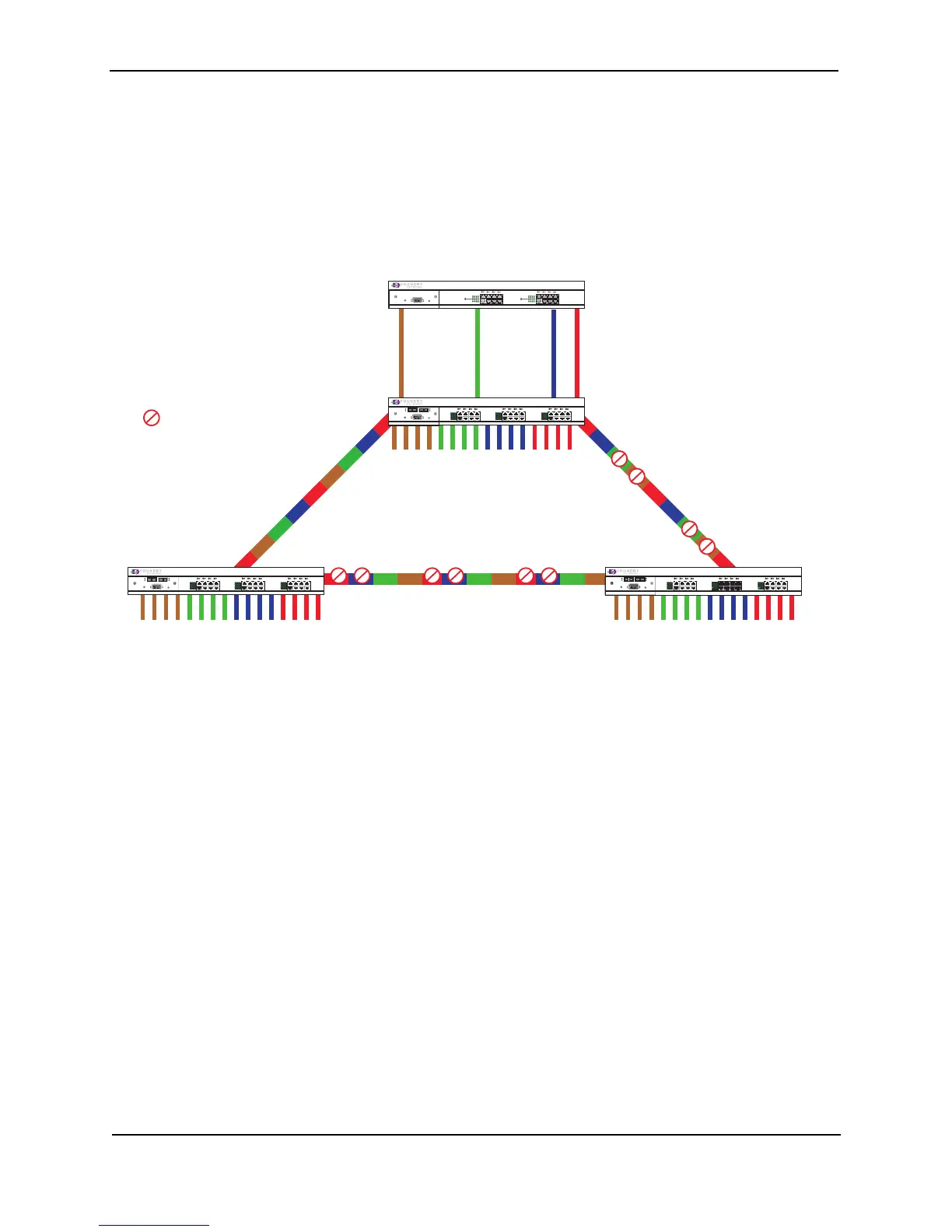

Figure 25.12 shows a more complex port-based VLAN configuration using multiple Layer 2 Switches and IEEE
802.1q VLAN tagging. The backbone link connecting the three Layer 2 Switches is tagged. One untagged port
within each port-based VLAN on FastIron-A connects each separate network wide Layer 2 broadcast domain to
the router for Layer 3 forwarding between broadcast domains. The STP priority is configured to force FastIron-A
to be the root bridge for VLANs RED and BLUE. The STP priority on FastIron-B is configured so that FastIron-B
is the root bridge for VLANs GREEN and BROWN.
Figure 25.12 More complex port-based VLAN
To configure the Port-based VLANs on the FastIron Layer 2 Switches in Figure 25.12, use the following method.
USING THE CLI
Configuring FastIron-A
Enter the following commands to configure FastIron-A:
FastIron> enable
FastIron# configure terminal
FastIron(config)# hostname FastIron-A
FastIron-A(config)# vlan 2 name BROWN
FastIron-A(config-vlan-2)# untag ethernet 1 to 4 ethernet 17
FastIron-A(config-vlan-2)# tag ethernet 25 to 26
FastIron-A(config-vlan-2)# spanning-tree
FastIron-A(config-vlan-2)# vlan 3 name GREEN
FastIron-A(config-vlan-3)# untag ethernet 5 to 8 ethernet 18
FastIron-A(config-vlan-3)# tag ethernet 25 to 26
FastIron-A(config-vlan-3)# spanning-tree
FastIron-A(config-vlan-3)# vlan 4 name BLUE
FastIron-A(config-vlan-4)# untag ethernet 9 to 12 ethernet 19
FastIron-A(config-vlan-4)# tag ethernet 25 to 26
