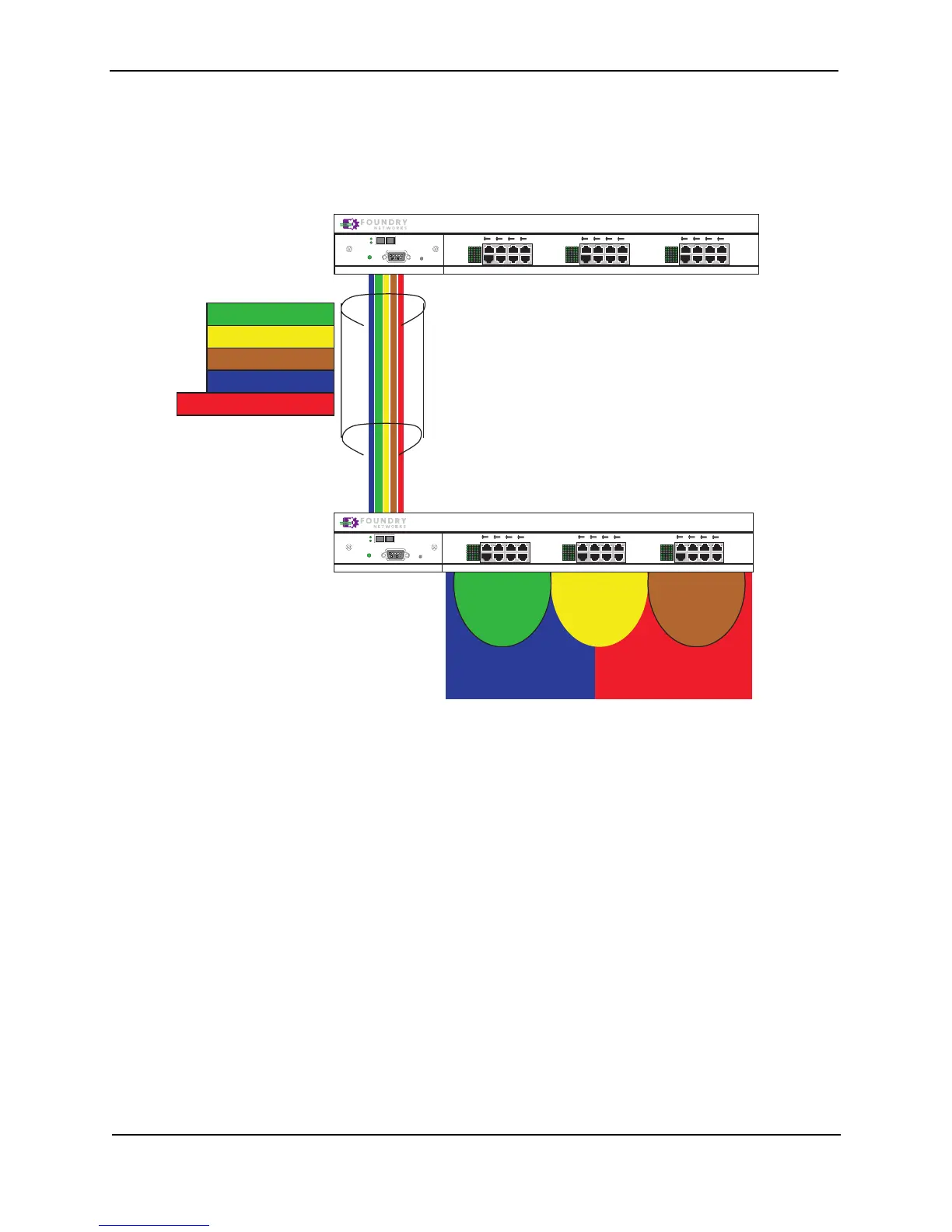

Figure 25.13 shows this configuration.
Figure 25.13 Protocol-based (Layer 3) VLANs
To configure the VLANs shown in Figure 25.13, use the following procedure.
USING THE CLI
1. To permanently assign ports 1 – 8 and port 25 to IP sub-net VLAN 1.1.1.0, enter the following commands:
FastIron> en
No password has been assigned yet...
FastIron# config t
FastIron(config)#
FastIron(config)# ip-subnet 1.1.1.0/24 name Green
FastIron(config-ip-subnet)# no dynamic
FastIron(config-ip-subnet)# static ethernet 1 to 8 ethernet 25
2. To permanently assign ports 9 – 16 and port 25 to IP sub-net VLAN 1.1.2.0, enter the following commands:
FastIron(config-ip-subnet)# ip-subnet 1.1.2.0/24 name Yellow
FastIron(config-ip-subnet)# no dynamic
FastIron(config-ip-subnet)# static ethernet 9 to 16 ethernet 25
3. To permanently assign ports 17 – 25 to IP sub-net VLAN 1.1.3.0, enter the following commands:
FastIron(config-ip-subnet)# ip-subnet 1.1.3.0/24 name Brown
NetIron Router
FastIron Workgroup
17
18
19
20
21
22
23
24
FDX
100
Link / Act
FDX
100
Link / Act
FDX
100
Link / Act
FDX
100
Link / Act
9
10
11
12
13
14
15
16
FDX
100
Link / Act
FDX
100
Link / Act
1
2
3
4
5
6
7
8
Power
Console
Link
Activity
NetIron Router
17
18
19
20
21
22
23
24
FDX
100
Link / Act
FDX
100
Link / Act
FDX
100
Link / Act
FDX
100
Link / Act
9
10
11
12
13
14
15
16
FDX
100
Link / Act
FDX
100
Link / Act
1
2
3
4
5
6
7
8
Powe r
Console
Link
Activity
FastIronSwitch
Port 25
IP-Subnet1
IP-Subnet2
IP Subnet 3
IPX Net 1
AppletalkCable 100
Port 25
Ports 1-8, 25
IP-Subnet 1
Ports 9 16, 25
IP-Subnet 2
Ports 17-25
IP-Subnet 3
Ports 1-16, 25
IPX Net 1
Ports 17-25
AppletalkCable 100
