Foundry Switch and Router Installation and Configuration Guide
25 - 62 December 2000
NOTE: All the ports must be members of the port-based VLAN that contains this IPX network VLAN. See
Layer 3 Protocol-Based VLANs on page 25-3.
11. Click the Add button (if you are adding a new VLAN) or the Modify button (if you are modifying an existing
VLAN) to save the change to the devices running-config file.
12. Select the Save
link at the bottom of the dialog. Select Yes when prompted to save the configuration change
to the startup-config file on the devices flash memory.
Configuring an AppleTalk Cable VLAN
1. Log on to the device using a valid user name and password for read-write access.
2. Click on the plus sign next to Configure in the tree view to expand the list of configuration options.
3. Click on the plus sign next to VLAN in the tree view to expand the list of VLAN option links.
4. Click on the Protocol
link.
If the device does not have any protocol VLANs, the Protocol VLAN configuration panel is displayed, as
shown in the following example.
If at least one protocol VLAN is already configured and you are adding a new one, click on the AppleTalk
Cable link to display the AppleTalk Cable VLAN configuration panel.
If you are modifying an existing protocol VLAN, click on the Modify button to the right of the row
describing the VLAN to display the configuration panel for the type of VLAN you are modifying. The

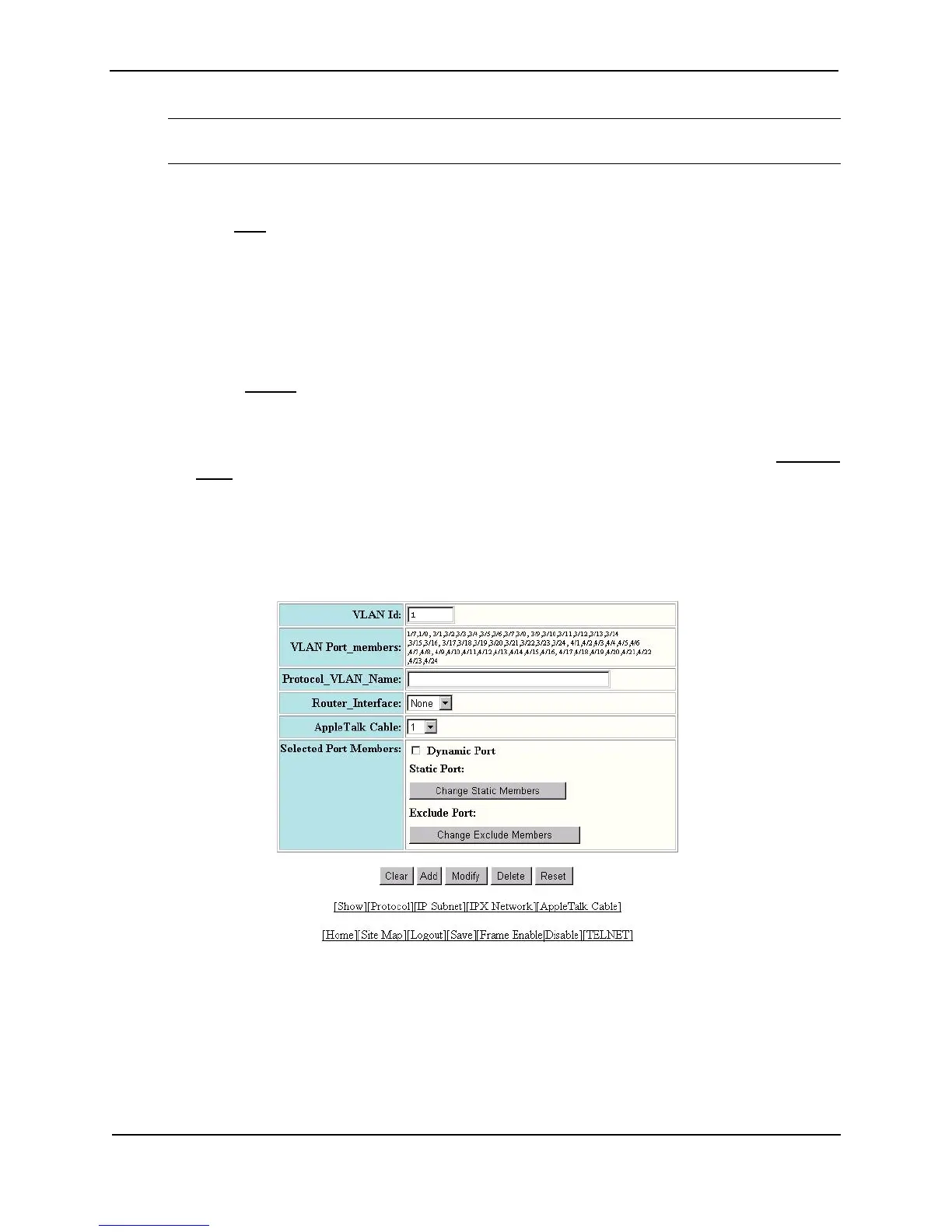

following example shows the AppleTalk Cable VLAN configuration dialog, used for configuring an
AppleTalk cable VLAN (not a protocol, IP sub-net, or IPX network VLAN).
5. Enter the VLAN ID that will contain the AppleTalk cable VLAN in the VLAN ID field.
6. Enter a name for the VLAN in the Protocol_VLAN_Name field.
7. Select the virtual interface from the Router_Interface pulldown list if you configured a virtual interface for
routing into and out of the VLAN.
8. Select the AppleTalk cable ID from the AppleTalk Cable fields pulldown list.
