Overview: CMT
parameters, pulse
parameters

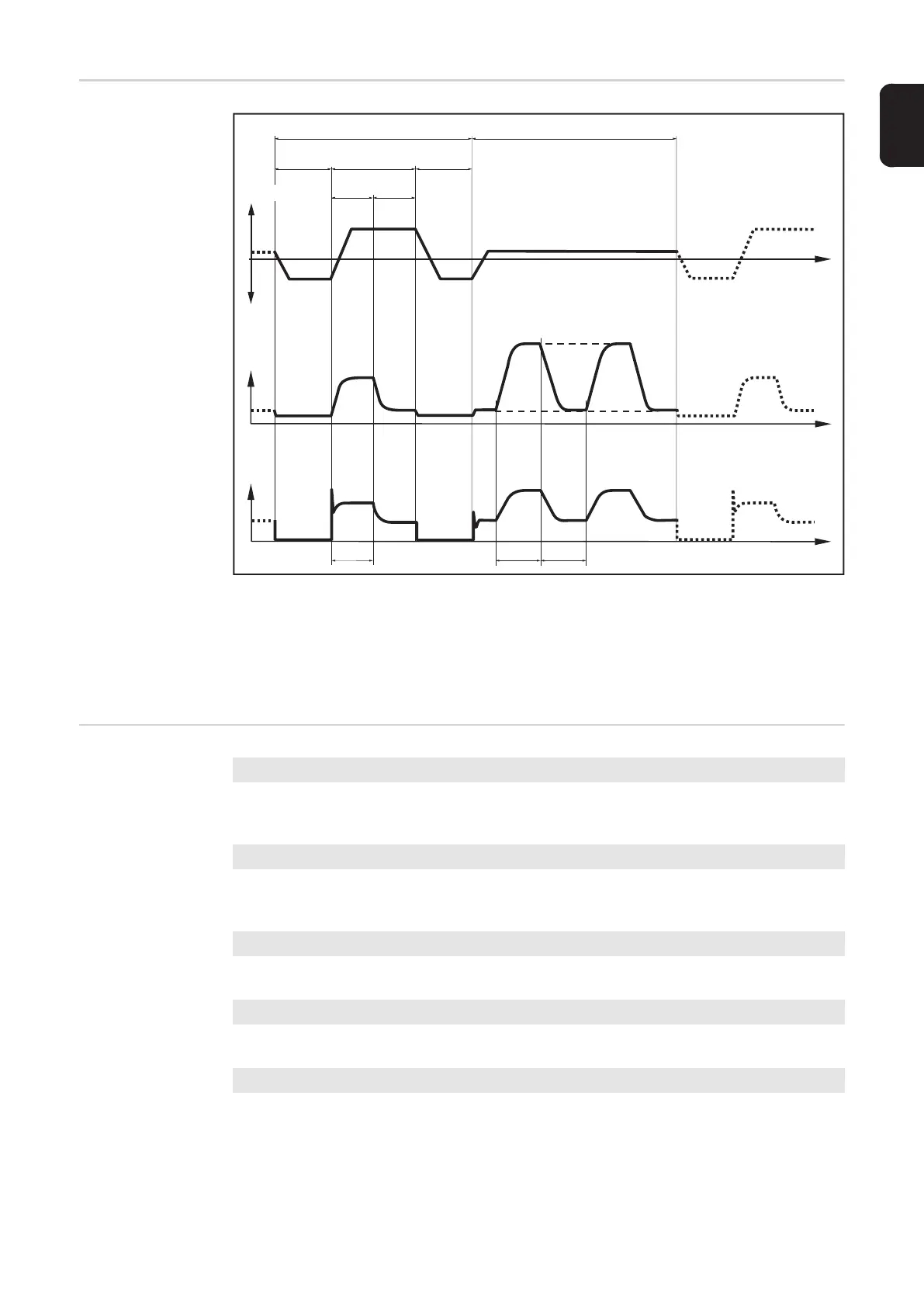

Overview of the CMT+P characteristic parameters
CMT parameters
KSP Short-circuit phase (1) CMT cycle
BoP Boost phase (2) Pulse cycles
BrP Burn phase (3) Plasma phase
KSP KSP(3)
BoP
(1) (2)
BrP
(4)
(15)(14)
(13)
(12)
(11)
(10)
(9)
(8)
(7)
(6)
(5)
I (A)
U (V)
t (s)
t (s)
t (s)
0
(17)
(16)
V
D
(m/s)
(4) I_sc_wait
Current command value [A] following the boost phase until the dipping of the wire
electrode into the weld pool
(5) vd_sc_wait
Wirefeed speed [m/min] following the boost phase until the dipping of the wire elec-
trode into the weld pool
(6) I_sc2
Current command value [A] with short circuit
(7) I_boost
Current command value [A] during the boost phase
(8) t_I_boost
Duration [ms] of the boost phase from the start of the boost current rise until the
start of the boost current decrease
0 = no boost phase
99.98 = maximum duration of the boost phase
