Establishing correction boundaries for a selected
job
General The sequence of screens shown on the "clothesline" depends on the type of job selected.
The "Correction boundaries" screen only appears with MIG/MAG synergic jobs.
Purpose of cor-
rection bounda-
ries
Correction boundaries can be entered individually for each job.
If correction boundaries are set for a job, welding power and arc length of the job con-
cerned can be corrected within the boundaries defined (in job welding).
Establishing cor-
rection bounda-
ries for a job
Call up the "Optimizing & managing jobs" menu item
Whatever screen is showing, select "Group n°" parameter using the down (6) or up (7)
keys
Select desired group (0 - 99) using the adjusting dial (18)
Select "Job n°" parameter using the down (6) or up (7) keys
Select desired job (0 - 999) using the adjusting dial (18)
– If a job is selected from the next group, the group displayed also changes accord-
ingly.
Select "Correction boundaries" screen by pressing the right arrow key (8)
– "Correction boundaries" screen appears

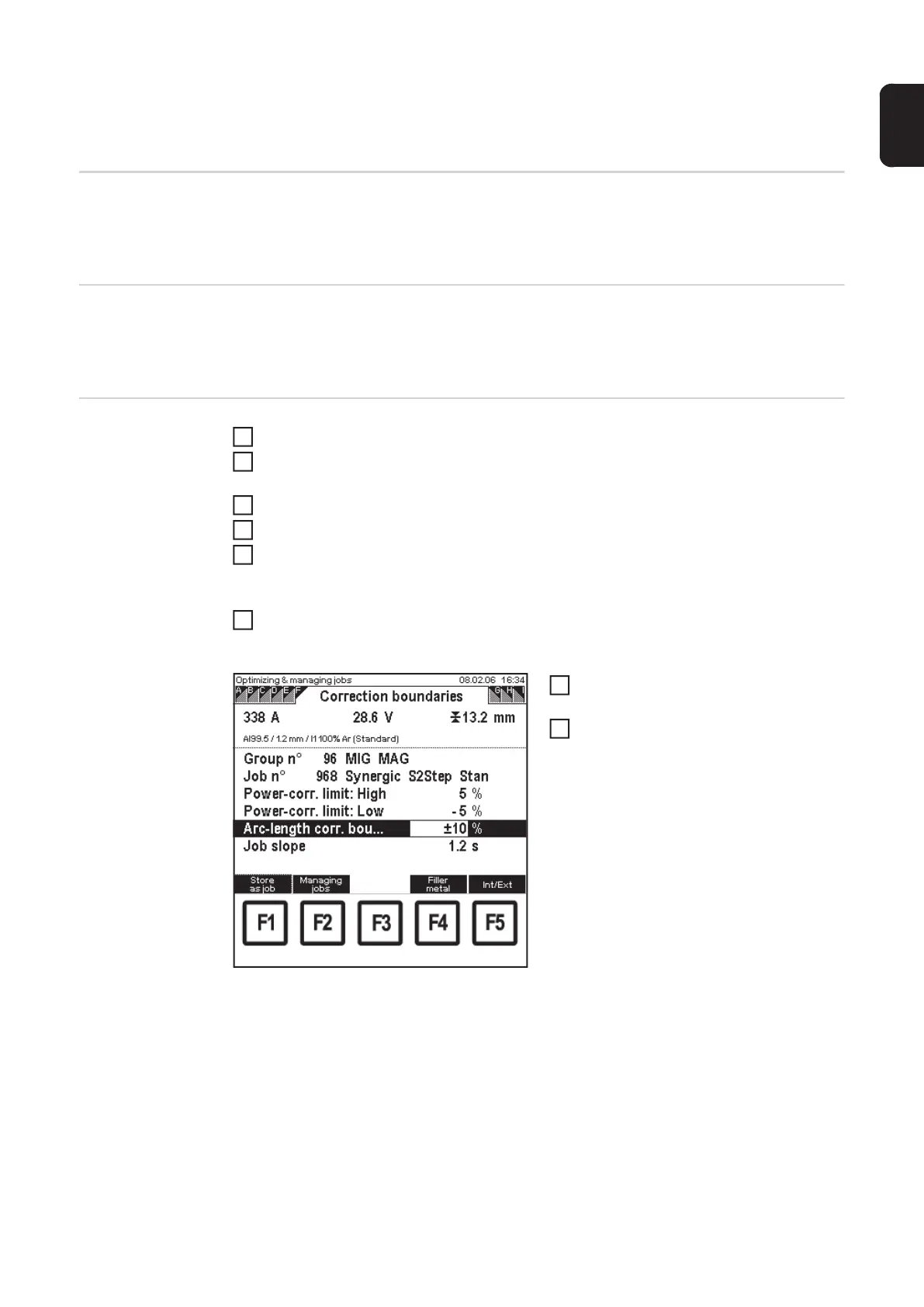

Optimizing and managing jobs: "Correction boundari-
es" screen
Select the corresponding parameters
using down (6) or up (7) keys
Use the adjusting dial (18) to alter the
parameter value
– A parameter value can only be al-
tered within the defined setting
range. The setting range is high-
lighted.
1
2
3
4
5
6
7
8
