Fronius RCU 5000i - L;R Alignment - Aligning Welding Circuit Inductivity and Welding Circuit Resistance; General; L;R Alignment

208
L/R alignment - aligning welding circuit inductivity
and welding circuit resistance
General If the following components on the welding machine are altered, welding circuit inductivity
(L) and resistance (R) must be aligned:
- Torch hosepacks
- Interconnecting hosepacks
- Grounding (earthing) cables, welding cables
- Wire-feed units
- Welding torches, electrode holders
- Push-pull units

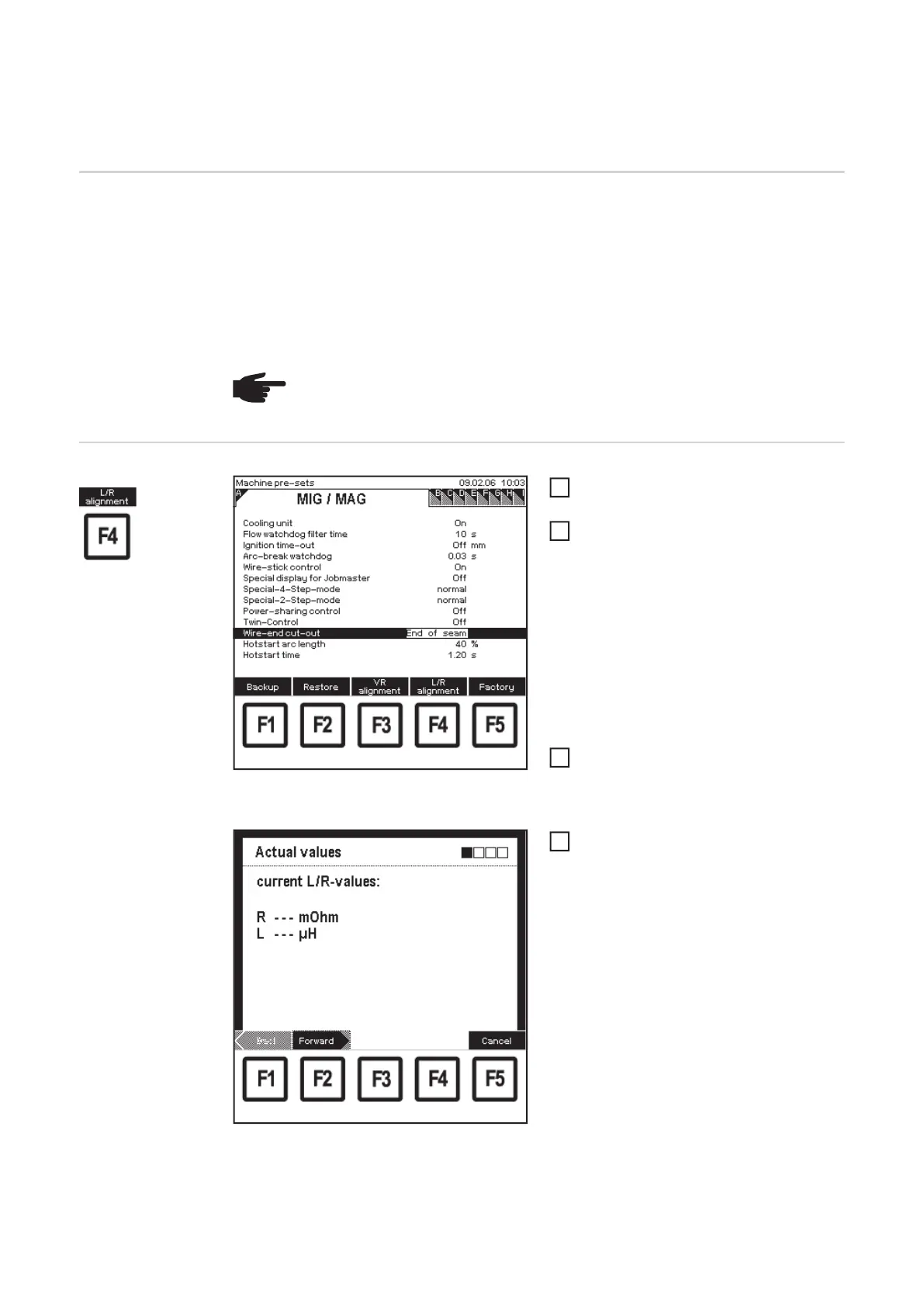

L/R alignment
Machine pre-sets: e.g. "MIG/MAG" screen
Call up the "Machine pre-sets" menu
item
Select "MIG/MAG" screen by pressing
the right arrow key (8)
– "MIG/MAG" screen for L/R align-
ment for MIG/MAG welding
– "TIG" screen for L/R alignment for
TIG welding
– "Rod electrode (MMA) welding"
screen for L/R alignment during
rod electrode (MMA) welding
The corresponding "Data" screen ap-
pears
Press F4 "L/R alignment"
– The 1st screen in the wizard appe-
ars ("Actual values")
"Actual values" screen
Press F2 "Forward"
– The 2nd screen in the wizard ap-
pears ("Preparations")
NOTE! L/R alignment must be carried out separately for each welding process.
1
2
3
4
