"Dialogue"
screen
The "Dialogue" screen is used for showing subdialogues.
The "Dialogue" screen may contain hierarchical structures, pick lists, etc.

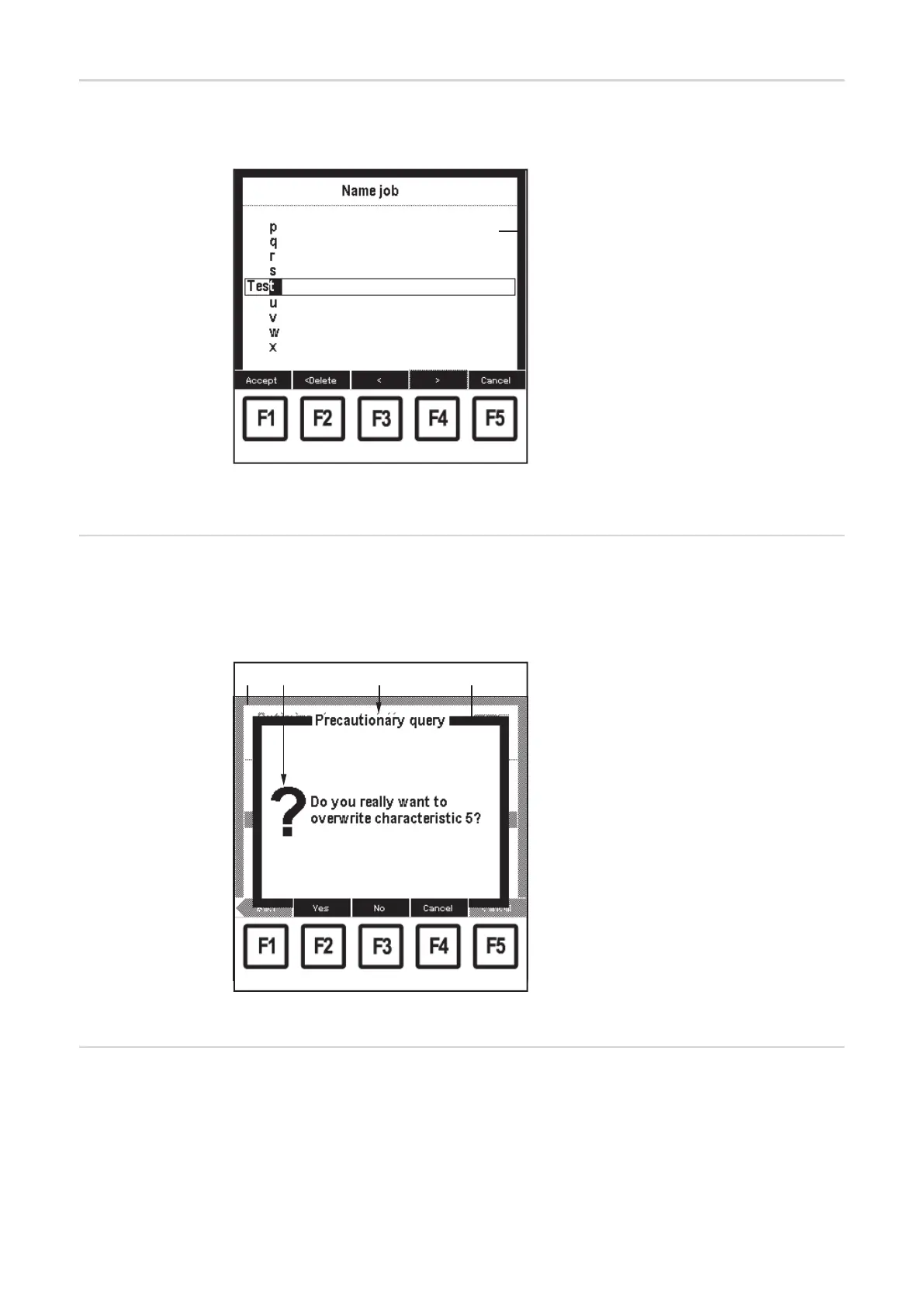

Example: "Dialogue" screen with "Accept" and "Can-
cel"
(1) Dark border
(2) F1 "Accept"
(3) F5 "Cancel"
"Message"
screen
The "Message" screen displays certain statuses. The message must be acknowledged, or
a decision must be taken.
The "Message" screen appears in front of part of the current screen. This makes the cur-
rent screen turn grey.
Example: "Message" screen - Precautionary query
(1) Current screen, shown in grey
(2) Symbol
(3) Message type
(4) Dark border
(5) F2 "Yes"
(6) F3 "No"
(7) F4 "Cancel"
"Error" screen "Error" screens display errors that have occurred during welding. "Error" screens must be
reset. If an "Error" screen is ignored, it reappears after 2 minutes for as long as the error
persists. "Error" screens appear in front of part of the current screen. This makes the cur-
rent screen turn grey.
(1)
(2) (3)
(1) (2)
(5) (6) (7)
(3) (4)
