Setting addition-
al special 4-step
parameters
If S4-step trigger mode is selected in the "Working parameters" screen, the corresponding
screen is hung on the clothesline.
The following additional parameters can be set:
- Starting current Is
- Slope 1 Sl1
- Final current
- Slope 2 Sl2

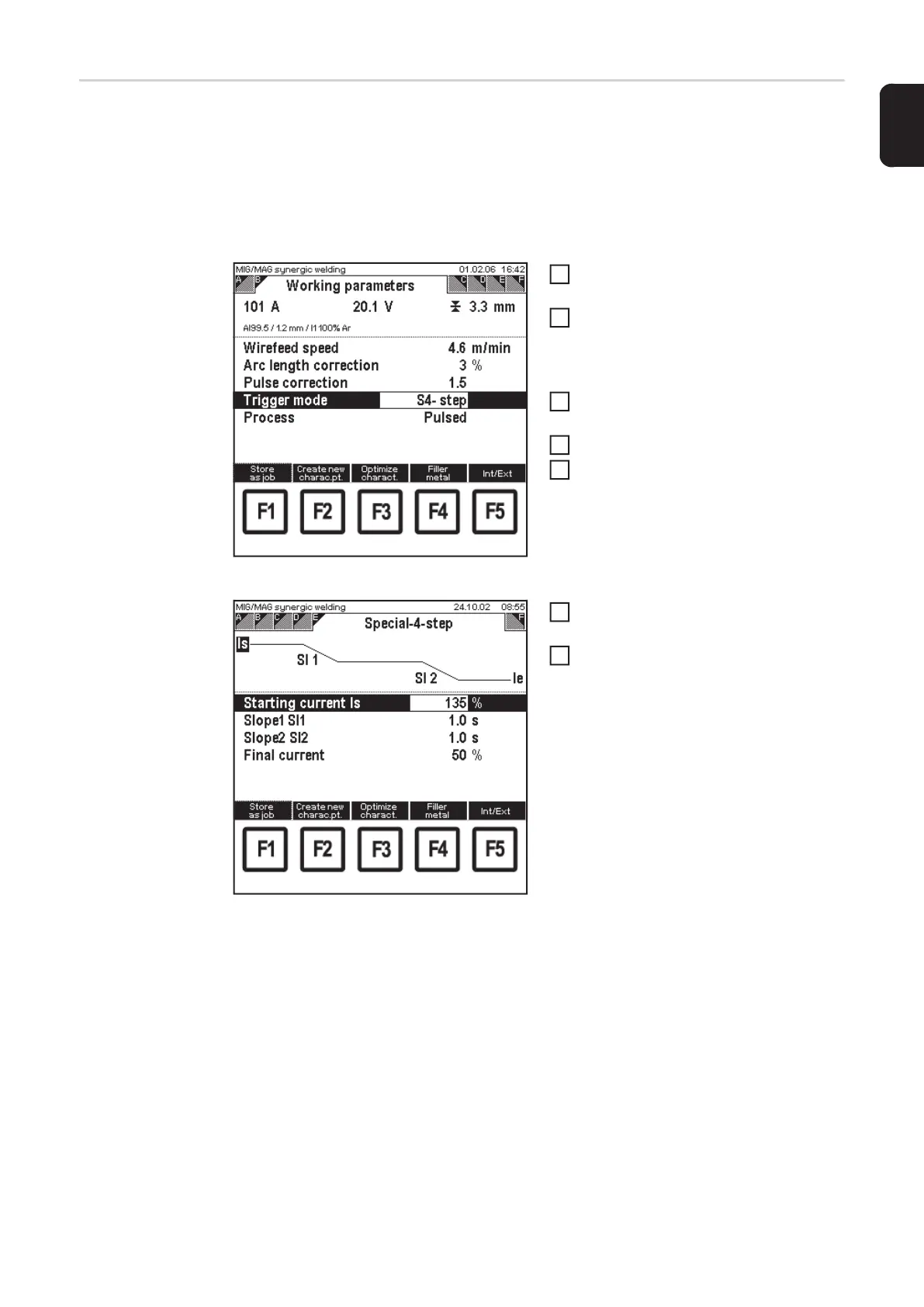

"Working parameters" screen: S4-step trigger mode
Call up "MIG/MAG synergic welding"
menu item
Select "Working parameters" screen
by pressing the right arrow key (8)
– "Working parameters" screen ap-
pears
Select the "trigger mode" parameter
using the down (6) or up (7) keys
Set to S4-step using adjusting dial (18)
Select "Special 4-step" screen by pres-
sing the right arrow key (8)
– "Special 4-step" screen appears
MIG/MAG synergic welding: "Special 4-step" screen,
starting current Is selected
Select further parameters using down
(6) or up (7) keys
Change the value of further parame-
ters using the adjusting dial (18)
– The value of the further parame-
ters can only be altered within the
defined setting range. The setting
range is highlighted.
