Welding log
General The welding data of all MIG/MAG welding operations (Synergic, manual, job) from welding
start-up through the sections up to the end of welding are recorded in the welding log.
Displaying weld-
ing data from the
welding log

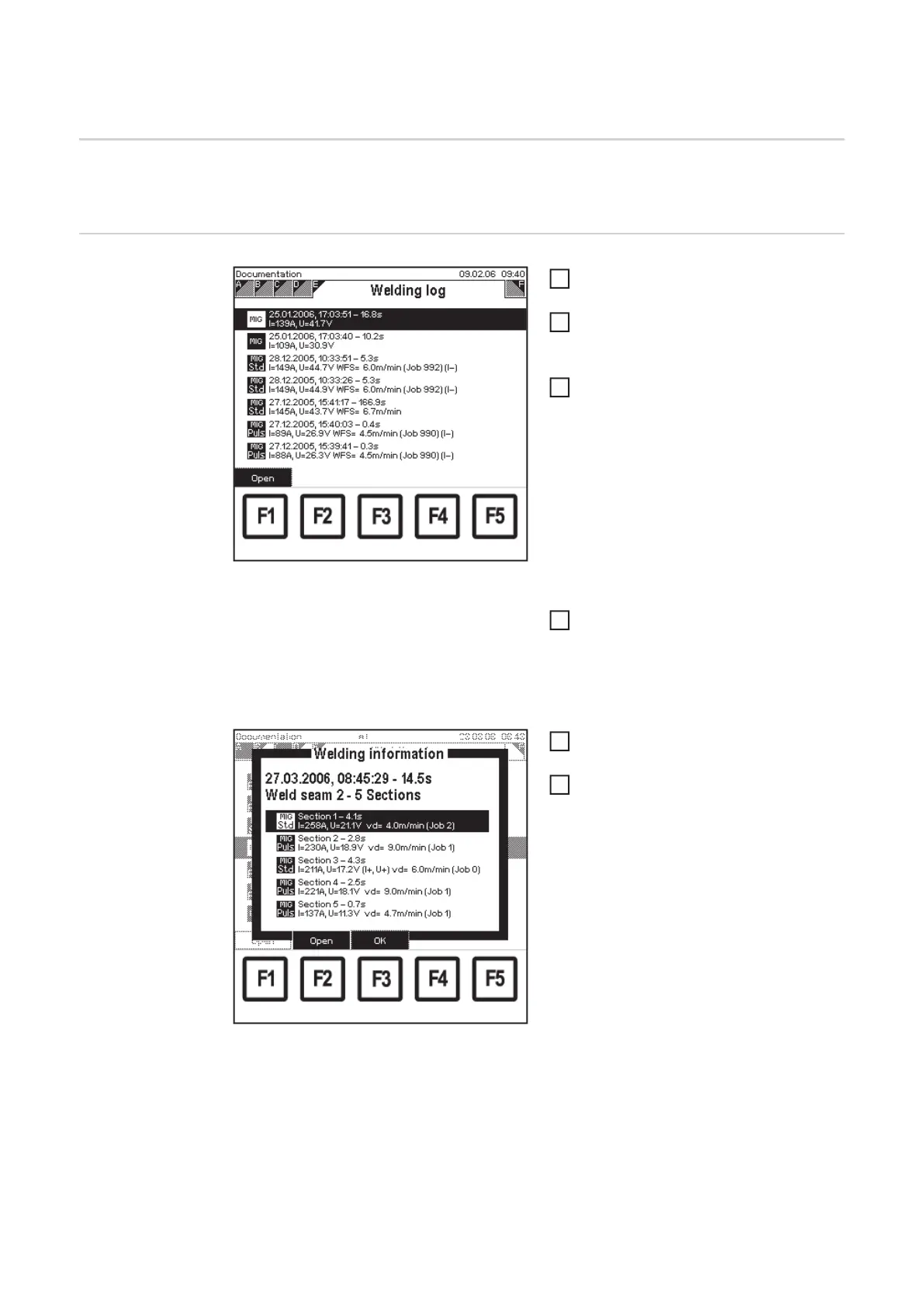

"Welding log" screen
Call up the "Documentation" menu
item
Select "Welding log" screen by pres-
sing the right arrow key (8)
– The "Welding log" screen appears
Select the desired welding operation
using the adjusting dial (18)
– The entry contains information on:
- Welding process
- Date, time, duration of the
weld
- Welding current, Welding
voltage
- Wire feed speed
- Job
- Violating upper/lower
limit values
Press F1 "Open"
– The selected welding operation is
displayed in detail with all availab-
le sections in the "Welding infor-
mation" screen.
"Welding information" screen for seam 2 comprising 5
sections
Select the desired section using the
adjusting dial (18)
To call up the welding data for an indi-
vidual section, press F2 "Open".
