Setting machine
pre-sets for "Rod
electrode (MMA)
welding"

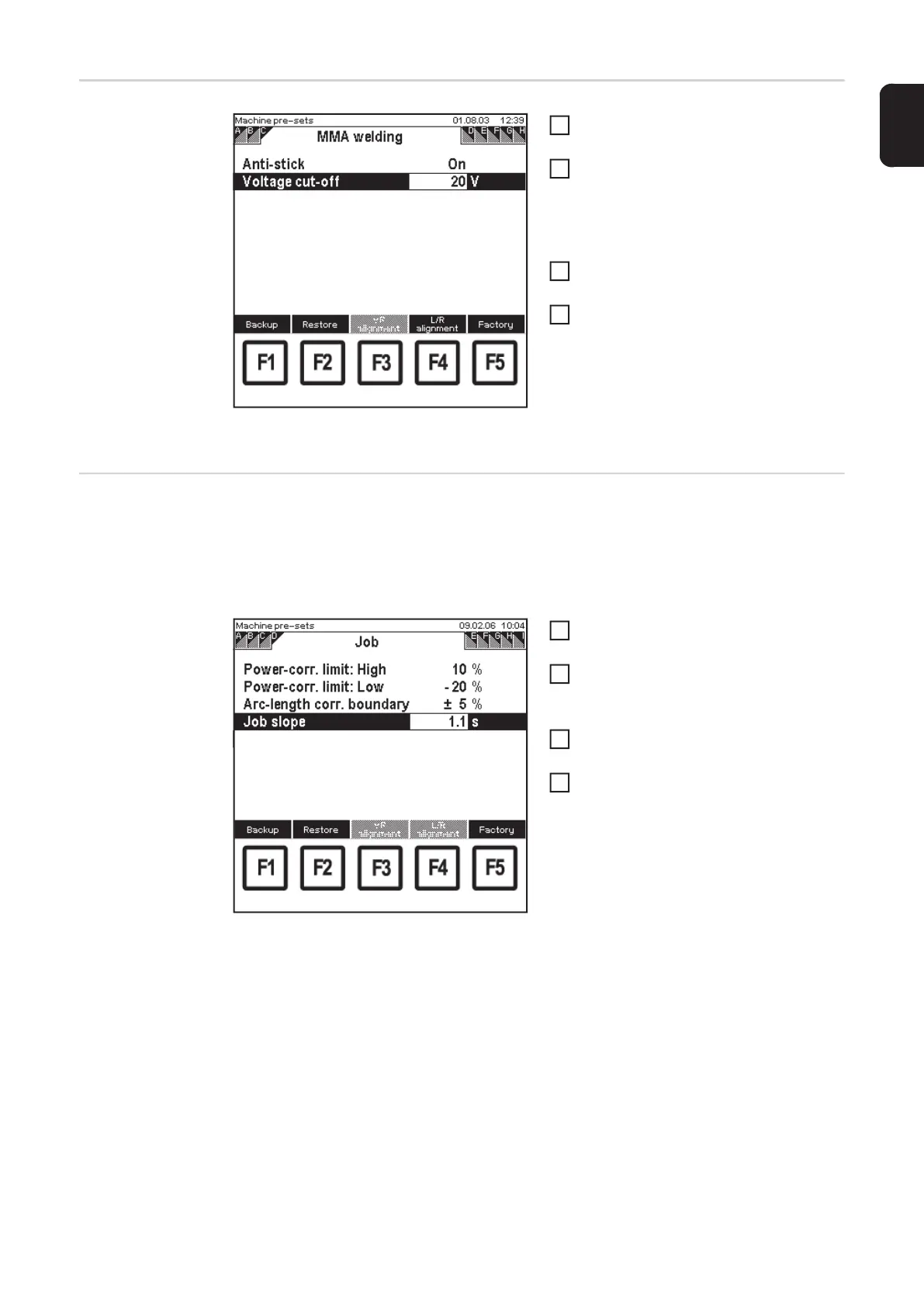

Machine pre-sets: "Rod electrode (MMA) welding"
screen
Call up the "Machine pre-sets" menu
item
Select "Rod electrode (MMA) welding"
screen by pressing the right arrow key
(8)
– The "Rod electrode (MMA) wel-
ding" screen appears
Select the corresponding pre-set using
down (6) or up (7) keys
Alter the value of the pre-sets using the
adjusting dial (18)
– A pre-set value can only be alte-
red within the defined setting ran-
ge. The setting range is
highlighted.
Setting machine
pre-sets for "Job"
The values entered in the "Job" screen serve as pre-sets for all jobs, e.g.:
If no other values for the parameters "Power-corr. limit: High", "Power-corr. limit: Low" and
"Arc-length corr. boundary" are entered in the "Optimizing & managing jobs" menu item for
a selected job, the parameter values from the "Machine pre-sets" menu item, "Job" screen,
are automatically applied when a job is being saved.
Machine pre-sets: "Job" screen
Call up the "Machine pre-sets" menu
item
Select "Job" screen by pressing the
right arrow key (8)
– "Job" screen appears
Select the corresponding pre-set using
down (6) or up (7) keys
Alter the value of the pre-sets using the
adjusting dial (18)
– A pre-set value can only be alte-
red within the defined setting ran-
ge. The setting range is
highlighted.
1
2
3
4
1
2
3
4
IMPORTANT! If the "Power-corr. limit: High", "Power-corr. limit: Low" and "Arc-length corr.
boundary" parameter values in the "Job" screen are entered as 0, no correction boundaries
are set for job mode.
