Optimizing and managing jobs
General For selected jobs, the following functions can be performed in the "Optimizing & managing
jobs" menu item:
- Retrieving administration data
- Setting working parameters
- Setting job-specific parameters
Depending on the type of the selected job, many different screens are displayed on the
"clothesline".
The sequence of displayed screens also depends on the type of job.
Calling up "Opti-
mizing & manag-
ing jobs" menu
item

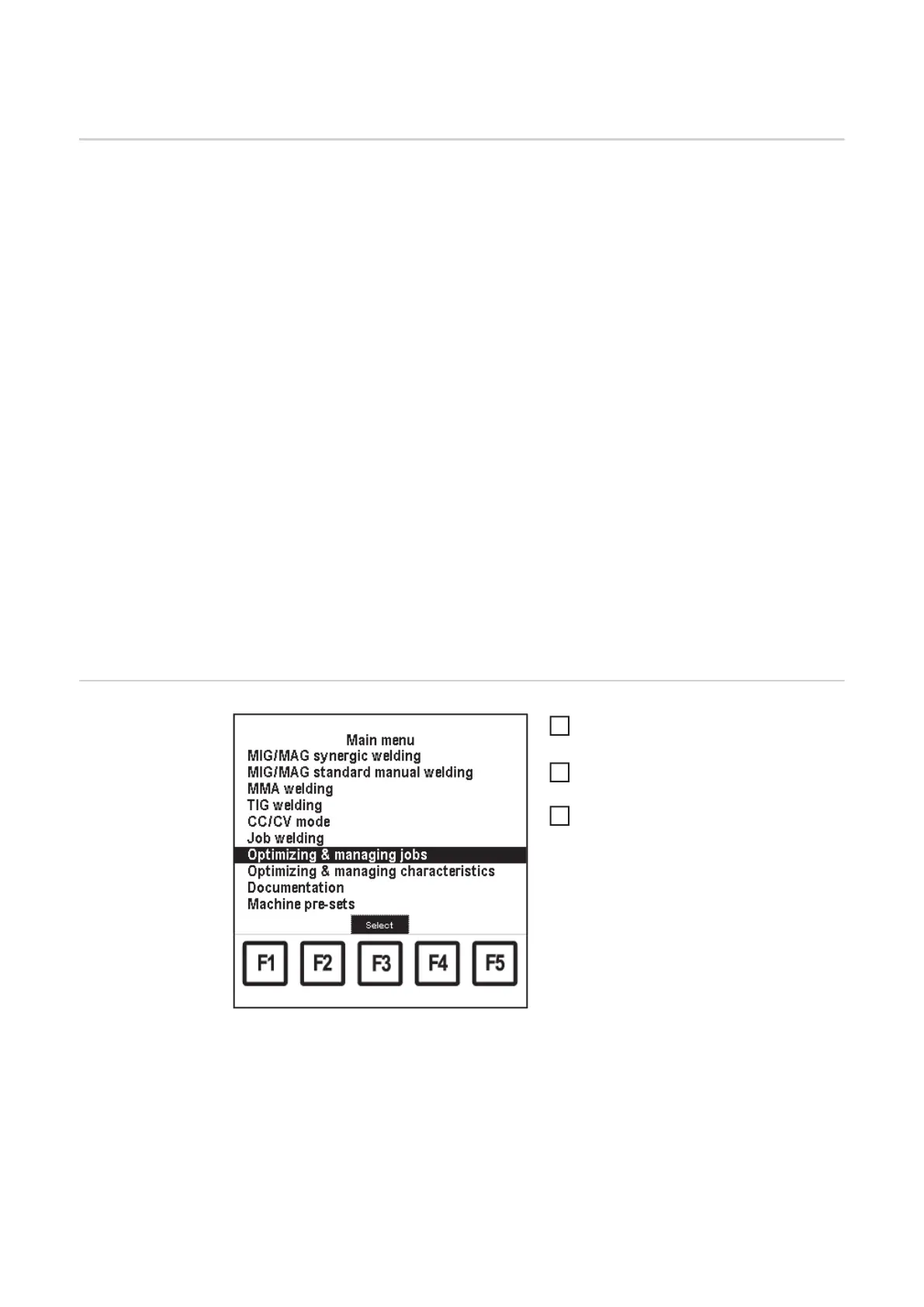

Main menu: "Optimizing & managing jobs" menu item
selected
Press the "Menu" button (1)
– Main menu appears
Select "Optimizing & managing jobs"
menu item using the adjusting dial (18)
Press OK (3)
– Precautionary query "Do you want
to edit the jobs online?" appears
The following screens are shown in the case of MIG/MAG synergic jobs:
- Administration data - SynchroPuls
1)
- Welding program - Q-Master values
- Working parameters - Special 2-step
2)
- Process settings - Special-4-step
3)
- Correction boundaries - Spot welding
4)
- Job-specific doc.
1)
Only displayed if the SynchroPulse option is installed on the power source
2)
Only displayed if the trigger mode is set to S2-step for the selected job
3)
Only displayed if the trigger mode is set to S4-step for the selected job
4)
Only displayed if the trigger mode is set to spot welding for the selected job
