Retrieving and changing a welding program for a se-
lected job
General The sequence of screens shown on the "clothesline" depends on the type of job selected.
The "Welding program" screen only appears with MIG/MAG synergic jobs.
Retrieving a job
welding program

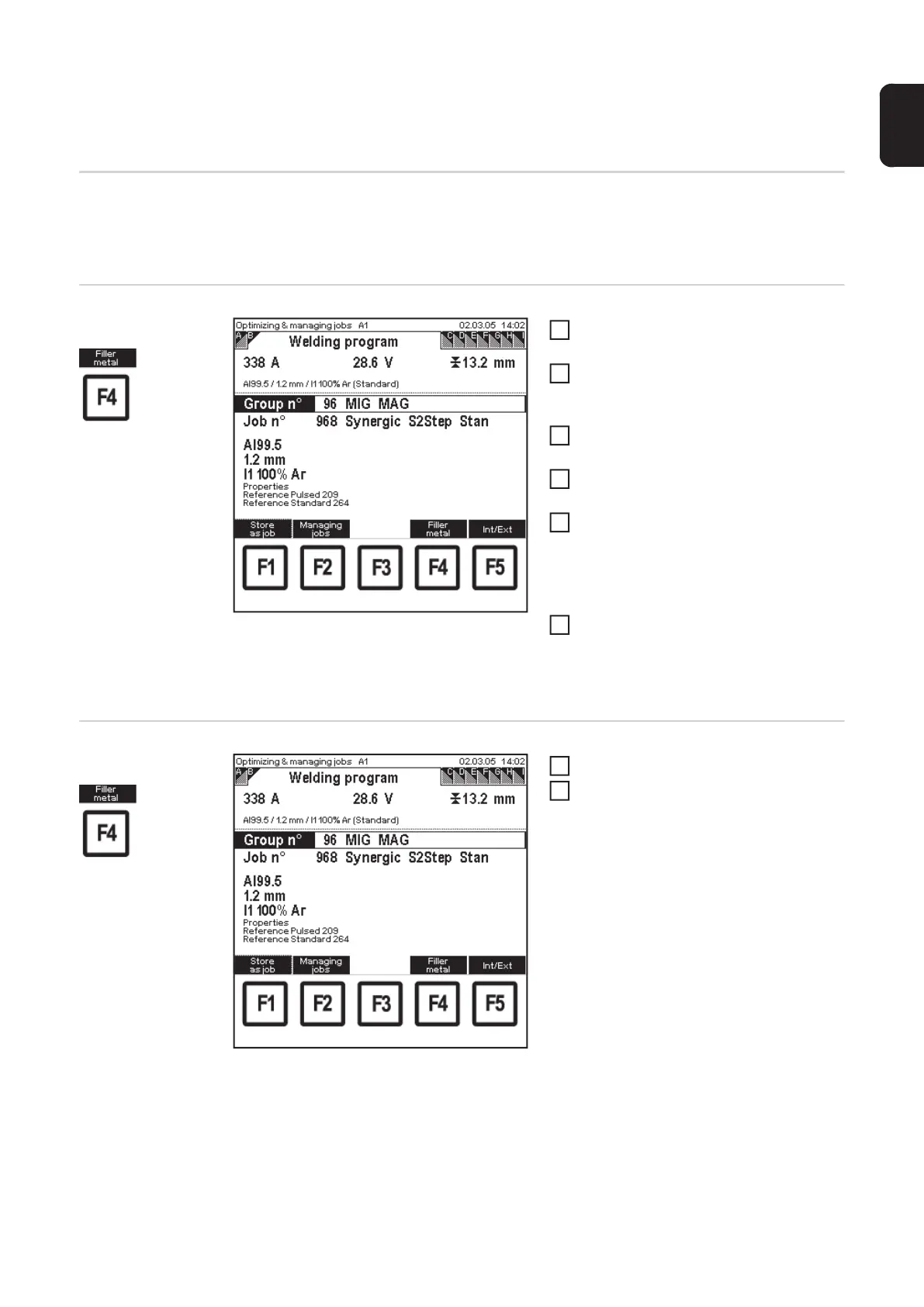

Optimizing and managing jobs: "Welding program"
screen
Call up the "Optimizing & managing
jobs" menu item
Whatever screen is showing, select
"Group n°" parameter using the down
(6) or up (7) keys
Select desired group (0 - 99) using the
adjusting dial (18)
Select "Job n°" parameter using the
down (6) or up (7) keys
Select desired job (0 - 999) using the
adjusting dial (18)
– If a job is selected from the next
group, the group displayed also
changes accordingly.
Select "Welding program" screen by
pressing the right arrow key (8)
– "Welding program" screen appe-
ars
Changing a job
welding program
Optimizing and managing jobs: "Welding program"
screen
Call up a job welding program
Press F4 "Filler metal" to change the
welding program:
– The 1st screen in the wizard appe-
ars ("Select a filler metal")
