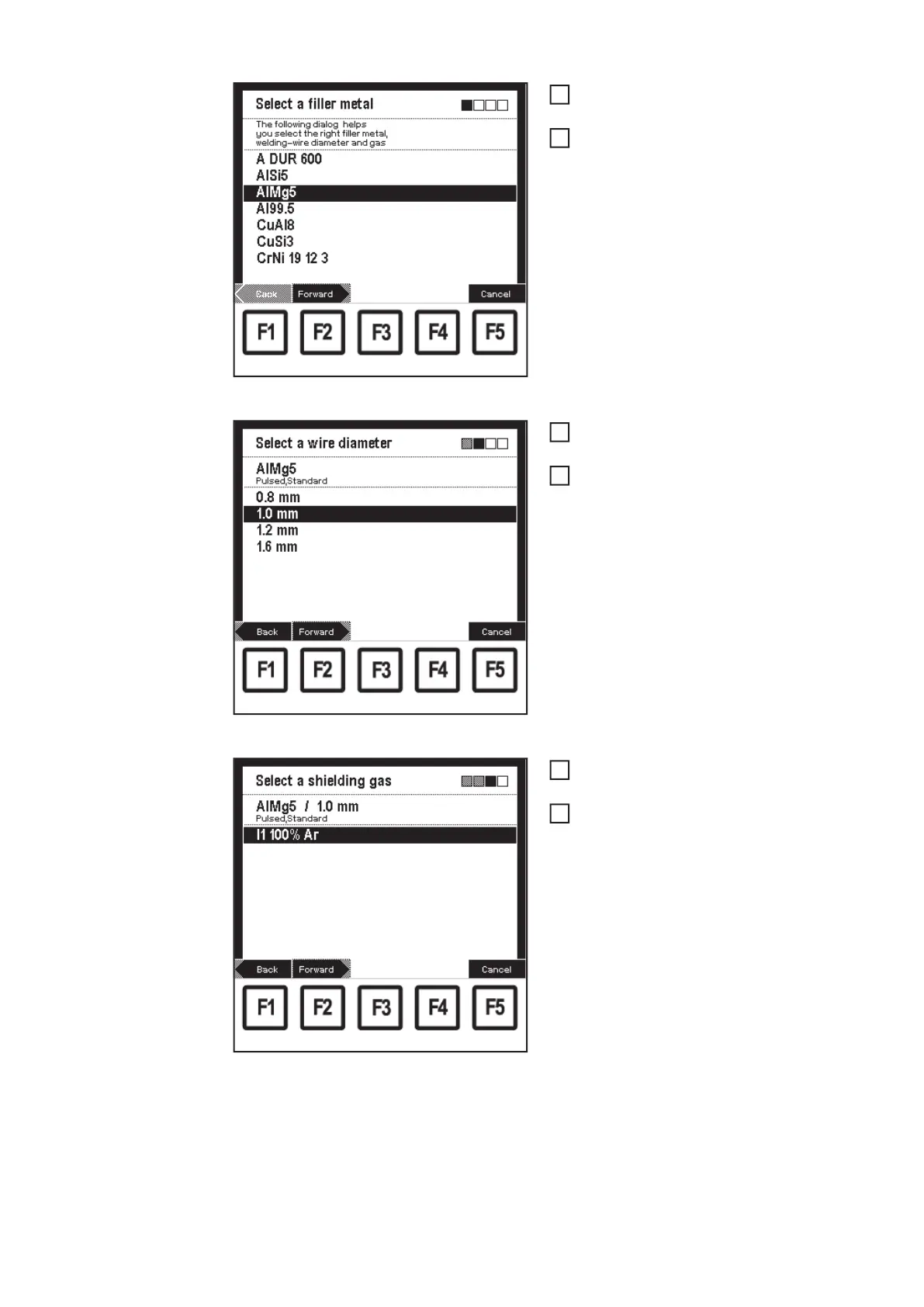

"Select a filler metal" screen: AlMg5 selected
Select required filler metal using the
adjusting dial (18)
Press F2 "Forward":
– The 2nd screen in the wizard ap-
pears ("Select a wire diameter")
– Only the wire diameters available
for the filler metal selected in the
1st screen are shown.
"Select a wire diameter" screen: 1.0 mm selected
Select corresponding wire diameter
using the adjusting dial (18)
Press F2 "Forward":
– The 3rd screen in the wizard ap-
pears ("Select a shielding gas")
– Only the gases available for the fil-
ler metal selected in the 1st
screen and wire diameter selected
in the 2nd screen are shown.
"Select a shielding gas" screen: I1 100% Ar selected
Select corresponding gas using the ad-
justing dial (18)
Press F2 "Forward":
– The "Select a reference" screen
only appears if there are several
characteristics for the selected fil-
ler metal, wire diameter and shiel-
ding gas.
– The value given in brackets after
the process indicates how many
characteristics there are for this
process.
