Selective exter-
nal/internal
switching of se-
lected parameters
with external pa-
rameter control
With external parameter control, the user can select and switch between external/internal
for selected parameters using F5 "Int/Ext". The external parameters can therefore be al-
tered and set internally on the remote control unit.
The function key F5 "Int/Ext" is available in the following menu items:
- MIG/MAG synergic welding
- MIG/MAG standard manual welding
- MMA welding
- TIG welding
- Job welding
- Optimizing & managing jobs

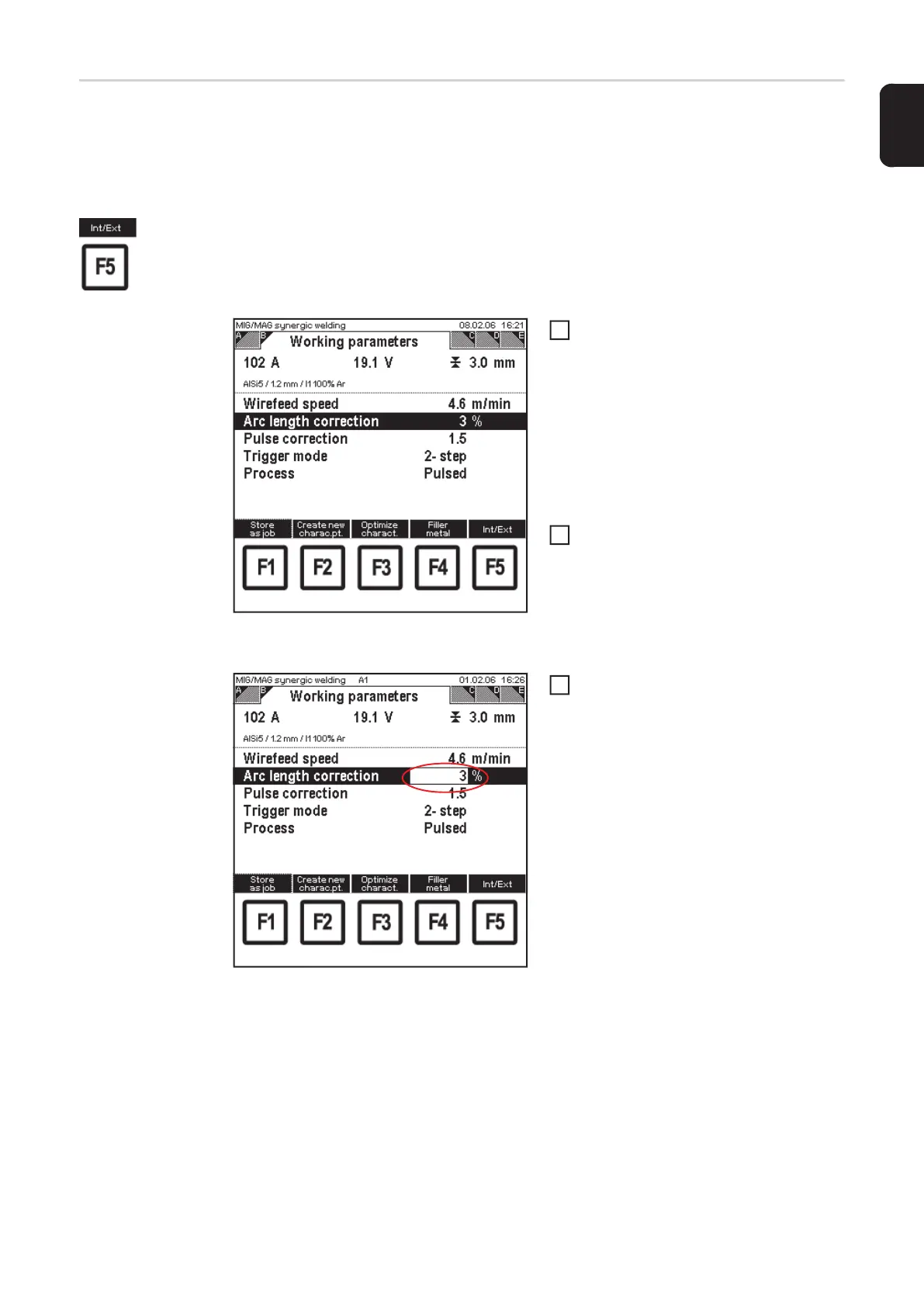

Example of external parameter entry: continuous
black bar - arc length correction selected
With external parameter control, call
up the parameters to be altered:
– call up the relevant menu item
– select corresponding "Data"
screen by pressing the right arrow
key (8)
– select the parameter to be altered
using down (6) or up (7) keys
– The parameter is displayed with a
continuous black bar.
Press F5 "Int/Ext":
– The selected parameter is conver-
ted to internal parameter control
(black bar with "window")
Example of internal parameter entry: black bar with
"window" - arc length correction selected
Use the adjusting dial (18) to alter the
parameter value
1
2
3
IMPORTANT! In robot welding, the F5 function key "Int/Ext" is disabled for safety reasons
if the parameter "Trigger mode" is selected in the "MIG/MAG synergic welding" menu item,
"Working parameters" screen.
F5 "Int/Ext" is greyed out:
