Setting additional parameters: special 2-step, spe-
cial 4-step, spot welding
Setting addition-
al special 2-step
parameters
If trigger mode S2-step is selected in the "Working parameters" screen, the corresponding
screen is hung on the clothesline.
The following additional parameters can be set:
- Starting current Is
- Starting-current dur. ts
- Slope 1 Sl1
- Slope 2 Sl2
- Final-current duration te
- Final current

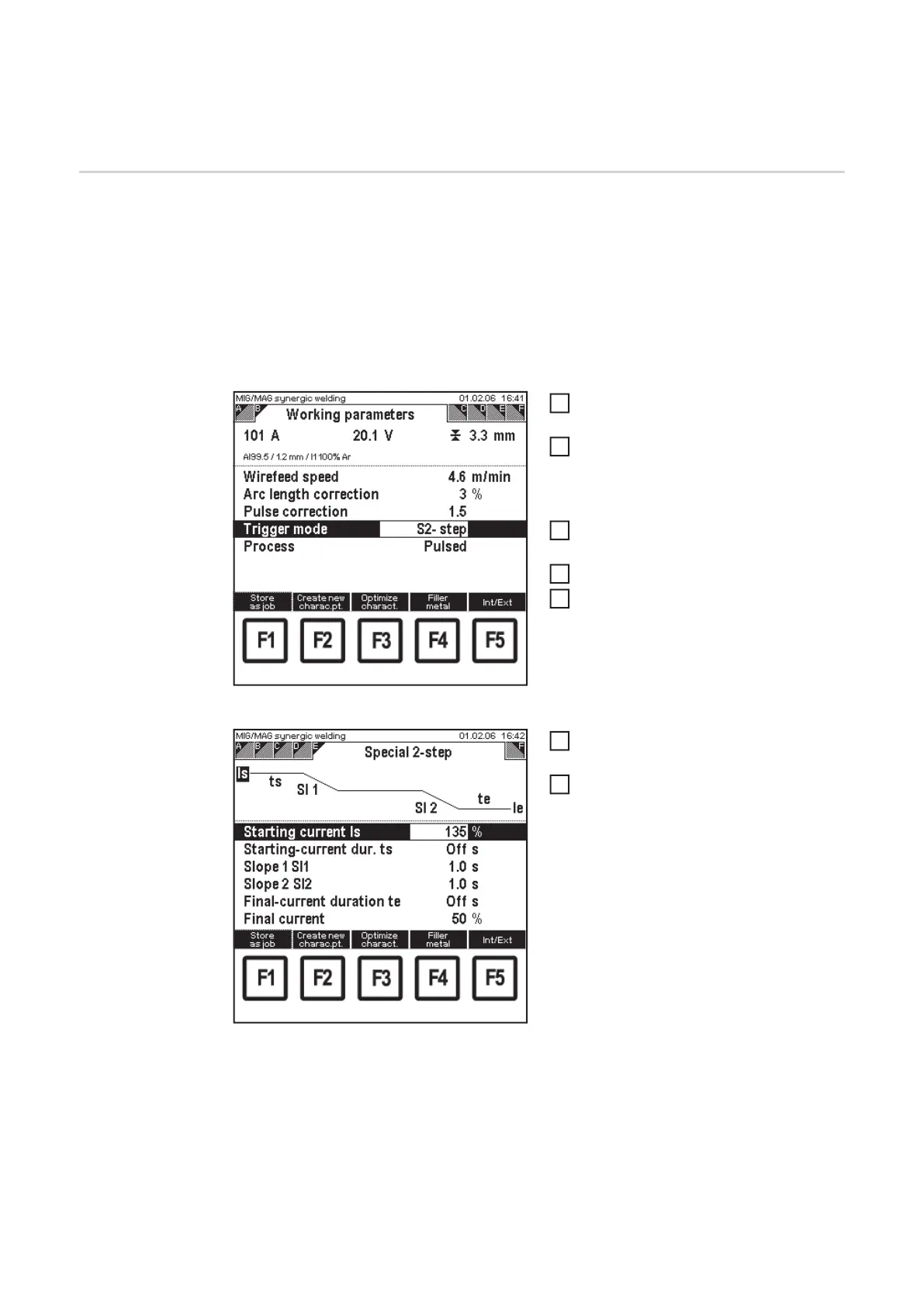

"Working parameters" screen: S2-step trigger mode
Call up "MIG/MAG synergic welding"
menu item
Select "Working parameters" screen
by pressing the right arrow key (8)
– "Working parameters" screen ap-
pears
Select the "trigger mode" parameter
using the down (6) or up (7) keys
Set to S2-step using adjusting dial (18)
Select "Special 2-step" screen by pres-
sing the right arrow key (8)
– "Special 2-step" screen appears
MIG/MAG synergic welding: "Special 2-step" screen,
starting current Is selected
Select further parameters using down
(6) or up (7) keys
Change the value of the further para-
meters using the adjusting dial (18)
– The value of the further parame-
ters can only be altered within the
defined setting range. The setting
range is highlighted.
1
2
3
4
5
6
7
