Establishing basic settings for the documentation
Establishing ba-
sic settings for
the documenta-
tion

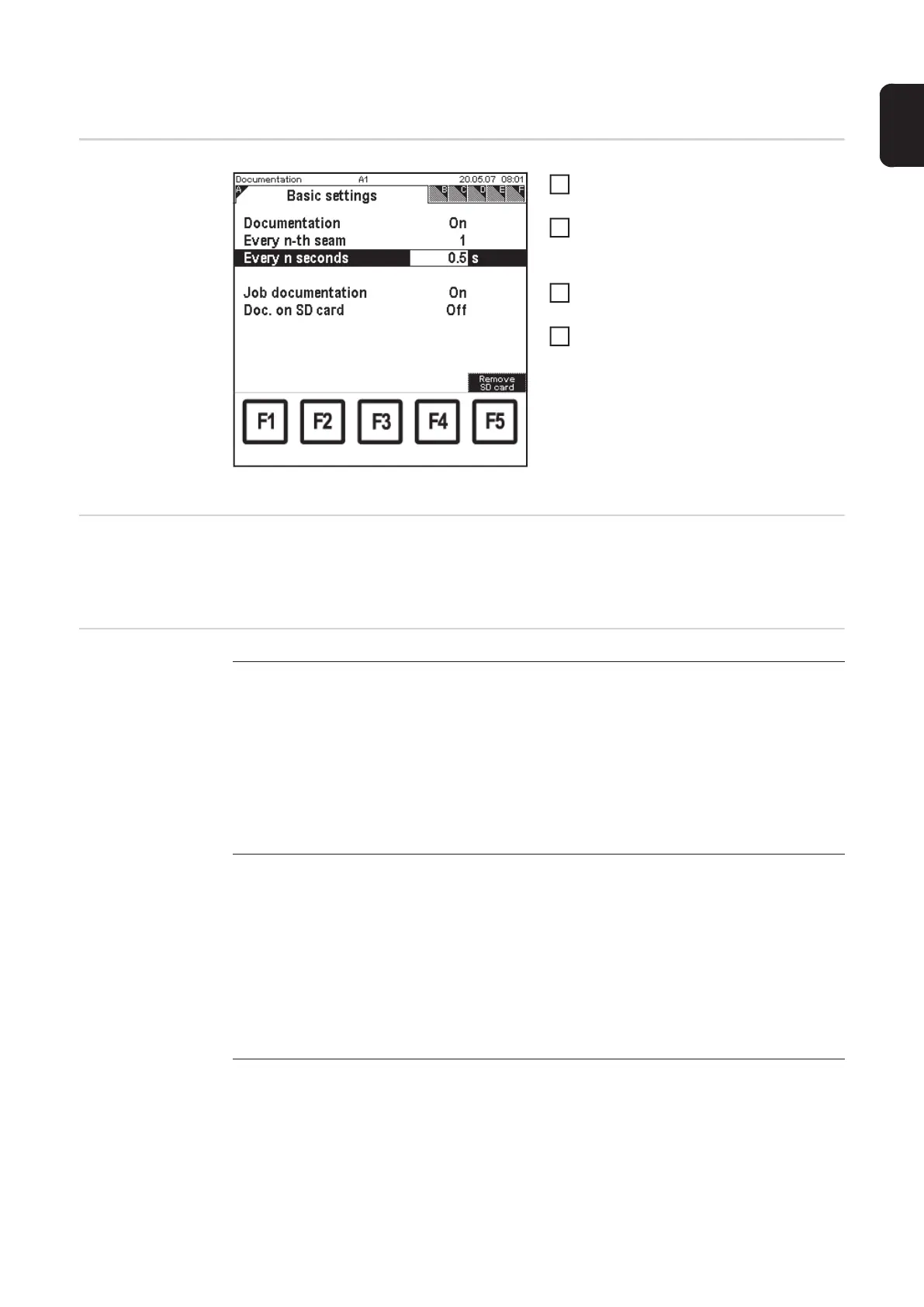

Documentation: "Basic settings" screen
Call up the "Documentation" menu
item
Select "Basic settings" screen by pres-
sing the right arrow key (8)
– "Basic settings" screen appears
Select the corresponding parameter
using the down (6) or up (7) keys
Alter the parameter using the adjusting
dial (18)
– A parameter value can only be al-
tered within the defined setting
range. The setting range is high-
lighted.
Basic documen-
tation settings
when storing jobs
The parameters "Every n-th seam" and "Every n seconds" are accepted as basic settings
when jobs are saved. In the "Optimizing and managing jobs" menu item the parameters
"Every n-th seam" and "Every n seconds" can be set individually for each job.
Explanation of
the parameters in
the "Basic set-
tings" screen
1
2
3
4
Documentation
for activating/deactivating the documentation function
Range On/Off
On The actual welding values of all welds carried out within the "MIG/MAG
synergic welding", MIG/MAG standard manual welding and "CC/CV
mode" menu items are documented according to the parameters "Every
n-th seam" and "Every n seconds"
Off No documentation within the menu items "MIG/MAG synergic welding",
"MIG/MAG standard manual welding" and "CC/CV mode"
Every n-th seam
for setting the number of weld seams after which documentation is to occur Used for ran-
dom documentation for example
Range 1 - 100
1 The actual welding values are documented after every (weld) seam
2 The actual welding values are documented after every 2nd (weld) seam
... ...
100 The actual welding values are documented after every 100 (weld) seams
(= maximum)
Every n seconds
for setting the period of time after which documentation is to occur
Range Off/0.1 - 9.9
Off Actual welding values are not documented; an average value for welding
current and welding voltage is given across the entire weld; errors and
over/undershooting are documented
0.1 The actual welding values are documented every 0.1 seconds
