Fronius RCU 5000i - Page 27

27
EN

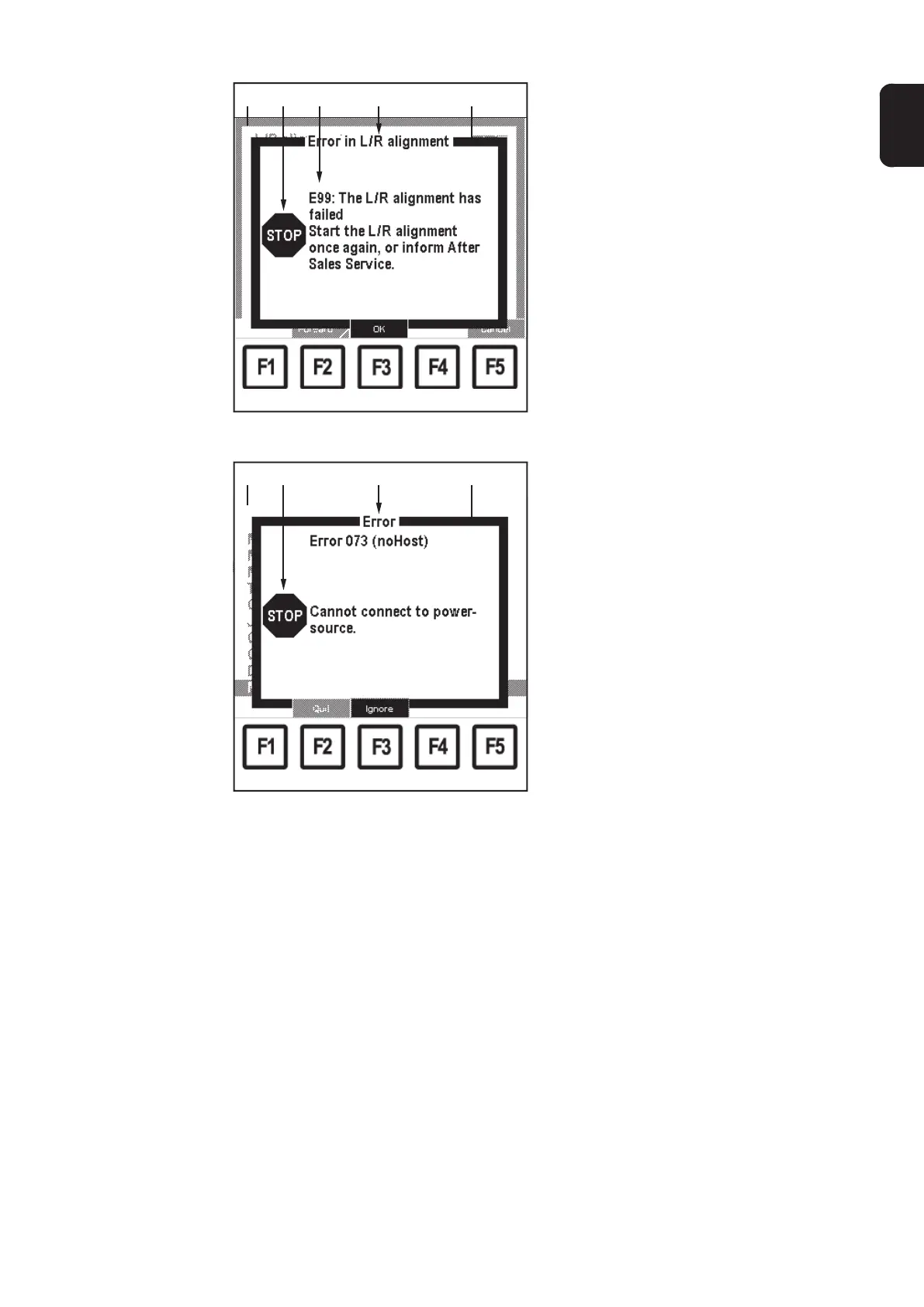

Example: "Error" screen
(1) Current screen, shown in grey
(2) Symbol
(3) Error code
(4) Error description
(5) Dark border
(6) F3 "OK"
Example: "Error" screen with function keys "Reset"
and "Ignore"
(1) Current screen, shown in grey
(2) Symbol
(3) Error description
(4) Dark border
(5) F2 "Reset"
(6) F3 "Ignore"
(1) (2) (3) (4) (5)
(6)
(2) (3)
(5) (6)
(4)(1)
