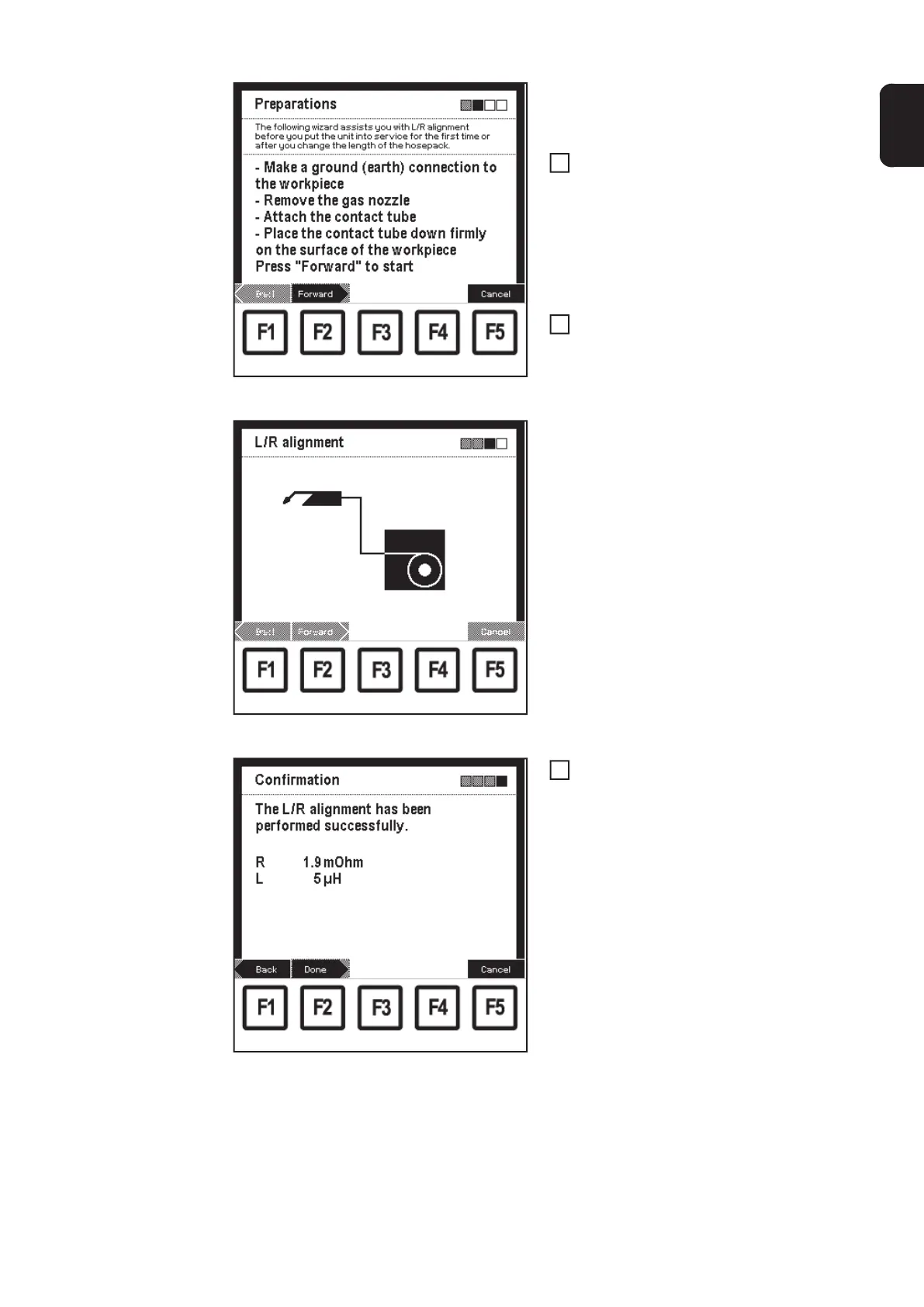

"Preparations" screen
Follow the instructions given in the
"Preparations" screen
– If TIG welding, place the tungsten
electrode instead of the contact
tube firmly in place.
– If rod electrode (MMA) welding,
place the electrode holder instead
of the contact tube firmly in place.
Press F2 "Forward":
– L/R alignment is started, the 3rd
screen in the wizard appears
("More settings")
"L/R alignment" screen
Once the L/R alignment is complete, the
values obtained for welding circuit resistan-
ce (R) and inductivity (L) appear in the 4th
screen of the wizard ("Confirmation").
"Confirmation" screen
Press F2 "Done":
IMPORTANT! Contact between the earth-
ing clamp and workpiece must be estab-
lished on a cleaned area of the workpiece.
