Fujitsu PRIMERGY RX1330 M5 User Manual

Copyright 2021 FUJITSU LIMITED

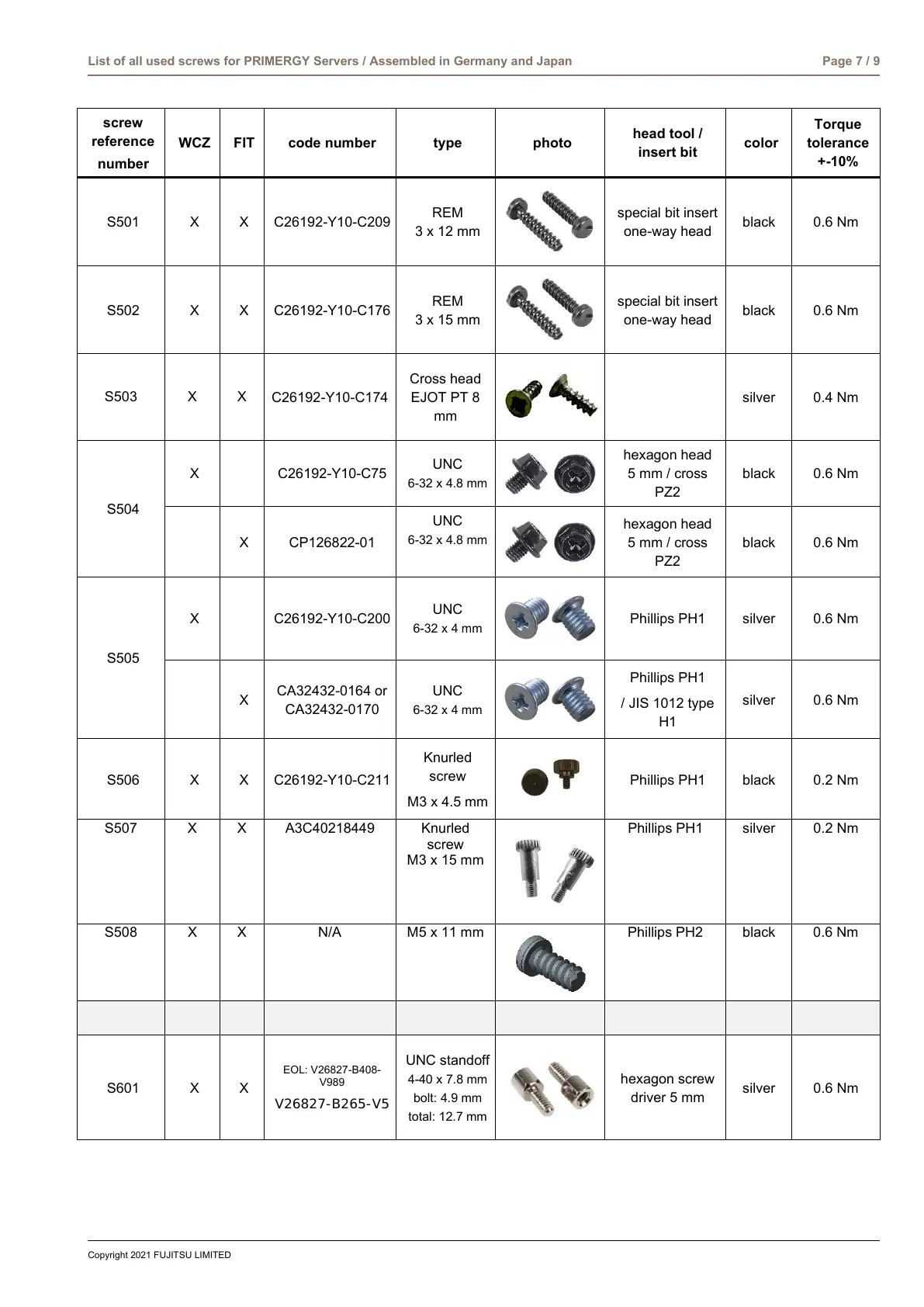

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 7 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S501
X
X
C26192-Y10-C209
REM
3 x 12 mm
special bit insert
one-way head
black
0.6 Nm
S502
X
X
C26192-Y10-C176
REM
3 x 15 mm
special bit insert
one-way head
black
0.6 Nm
S503
X
X
C26192-Y10-C174
Cross head
EJOT PT 8
mm
silver
0.4 Nm
S504
X
C26192-Y10-C75
UNC
6-32 x 4.8 mm
hexagon head
5 mm / cross
PZ2
black
0.6 Nm
X
CP126822-01
UNC
6-32 x 4.8 mm
hexagon head
5 mm / cross
PZ2
black
0.6 Nm
S505
X
C26192-Y10-C200
UNC
6-32 x 4 mm
Phillips PH1
silver
0.6 Nm
X
CA32432-0164 or
CA32432-0170
UNC
6-32 x 4 mm
Phillips PH1
/ JIS 1012 type
H1
silver
0.6 Nm
S506
X
X
C26192-Y10-C211
Knurled
screw
M3 x 4.5 mm
Phillips PH1
black
0.2 Nm
S507
X
X
A3C40218449
Knurled
screw
M3 x 15 mm
Phillips PH1
silver
0.2 Nm
S508
X
X
N/A
M5 x 11 mm
Phillips PH2
black
0.6 Nm
S601
X
X
EOL: V26827-B408-
V989
V26827-B265-V5
UNC standoff
4-40 x 7.8 mm
bolt: 4.9 mm
total: 12.7 mm
hexagon screw
driver 5 mm
silver
0.6 Nm

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
