Fujitsu PRIMERGY RX1330 M5

To Next Page

To Previous Page

20RX1330M5

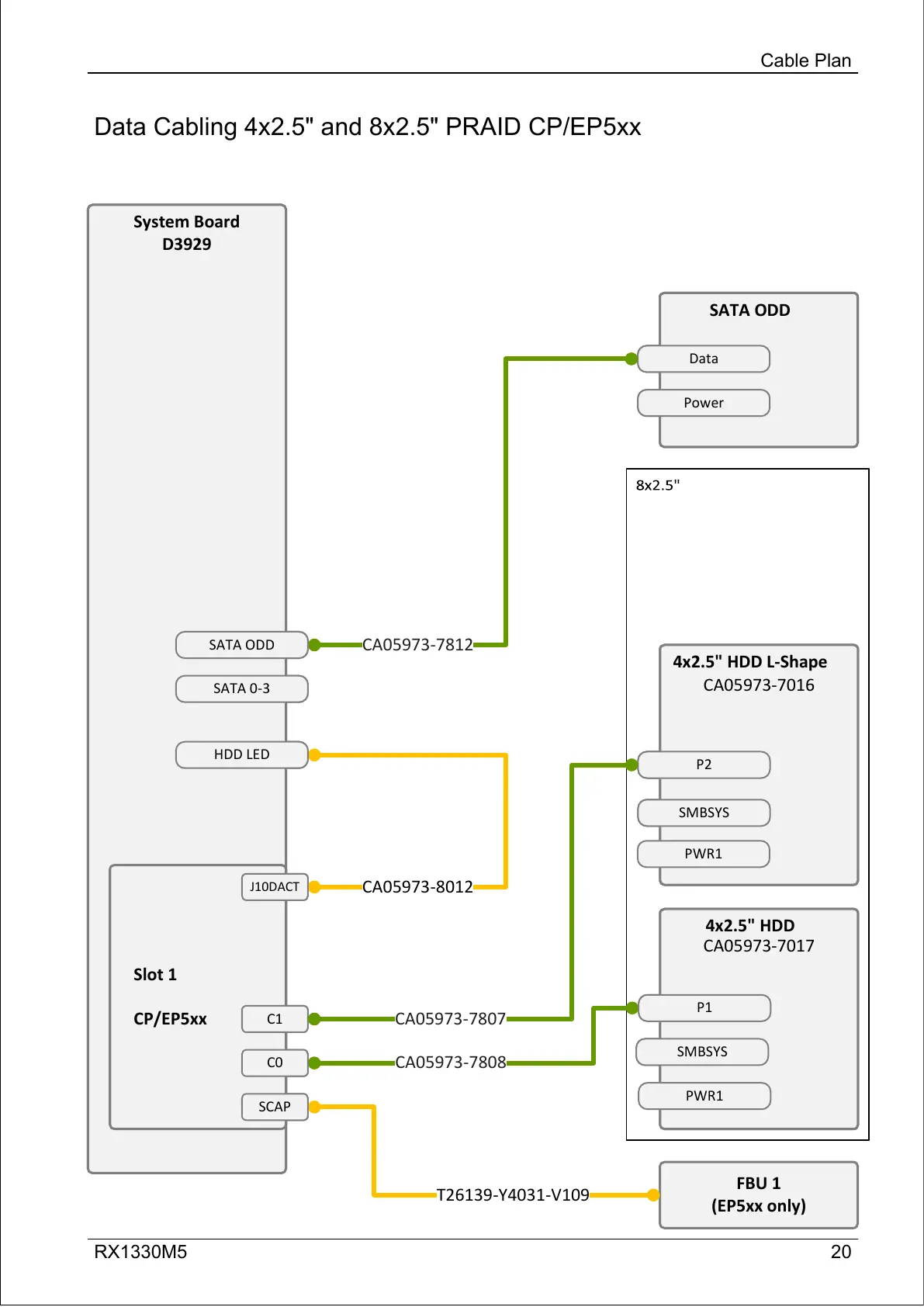

Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx

Cable Plan

SATA ODD

Data

Power

SATA ODD

Data

Power

CA05973-7812

FBU 1

(EP5xx only)

T26139-Y4031-V109

CA05973-7808

CA05973-8012

System Board

D3929

SATA ODD

HDD LED

SATA 0-3

Slot 1

CP/EP5xx

SCAP

J10DACT

System Board

D3929

SATA ODD

HDD LED

SATA 0-3

Slot 1

CP/EP5xx

SCAP

J10DACT

4x2.5" HDD L-Shape

SMBSYS

CA05973-7016

4x2.5" HDD L-Shape

SMBSYS

CA05973-7016

4x2.5" HDD

SMBSYS

CA05973-7017

4x2.5" HDD

SMBSYS

CA05973-7017

PWR1

CA05973-7807
