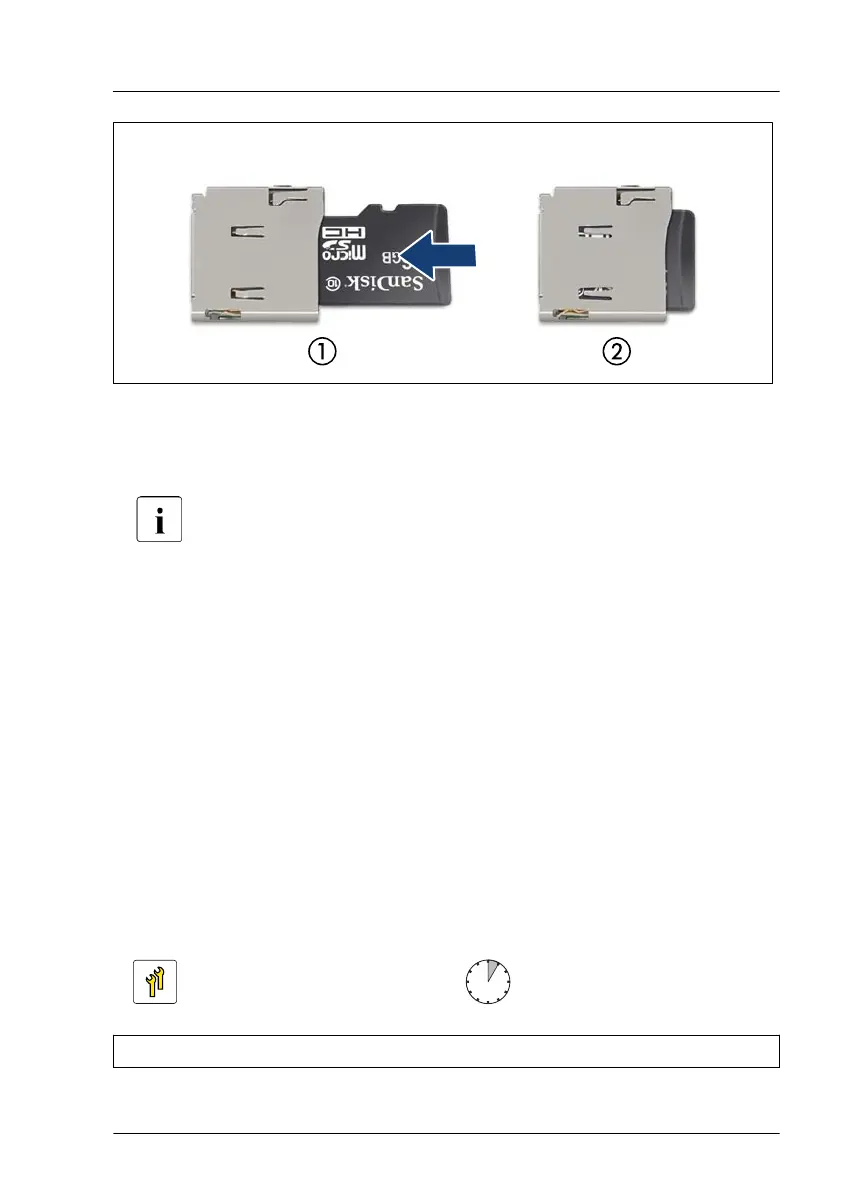

Figure 246: Installing the iRMC microSD card
▶
With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
The onboard position of the microSD card slot can be found in
"Connectors and indicators on the system board" on page 343.
Concluding steps
▶
If applicable, install the riser module 1, see "Installing a riser module" on
page
64
.
▶
"Installing the air duct" on page 66.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
15.5.3 Removing the iRMC microSD card
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
System board and components
RX1330 M5 Upgrade and Maintenance Manual 307
