Fujitsu PRIMERGY RX1330 M5 User Manual

13.4.3 Replacing the front VGA in the front VGA module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: hexagon screw driver 5 mm
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
▶
"Removing the air duct" on page 65.
Removing the defective front VGA
▶
Disconnect the front VGA cable from the system board connector "Front
VGA".
▶
Remove the front VGA module, see "Removing the front VGA module" on
page 265.
A

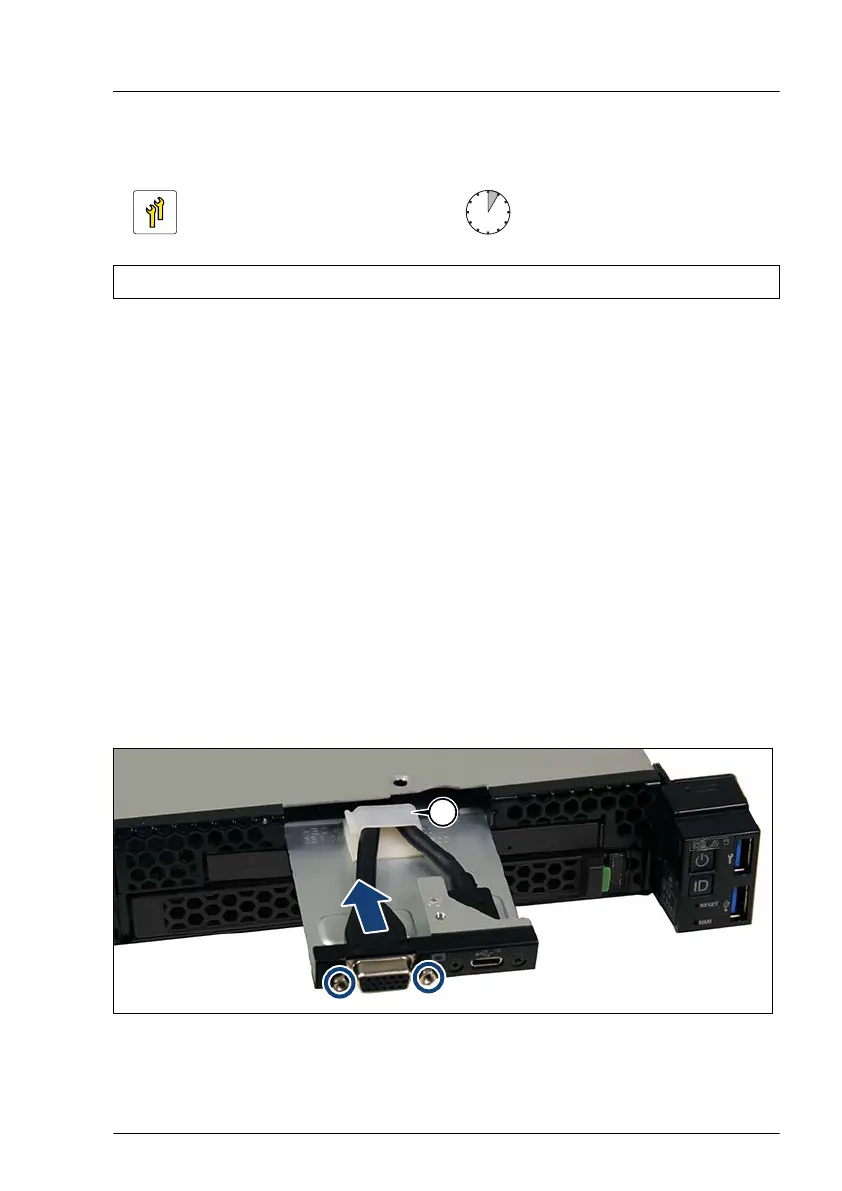

Figure 215: Removing the front VGA connector
Front panel
RX1330 M5 Upgrade and Maintenance Manual 269
