Fujitsu PRIMERGY RX1330 M5 User Manual

7.5.1.3 Configuration with up to 10 HDD/SSD modules

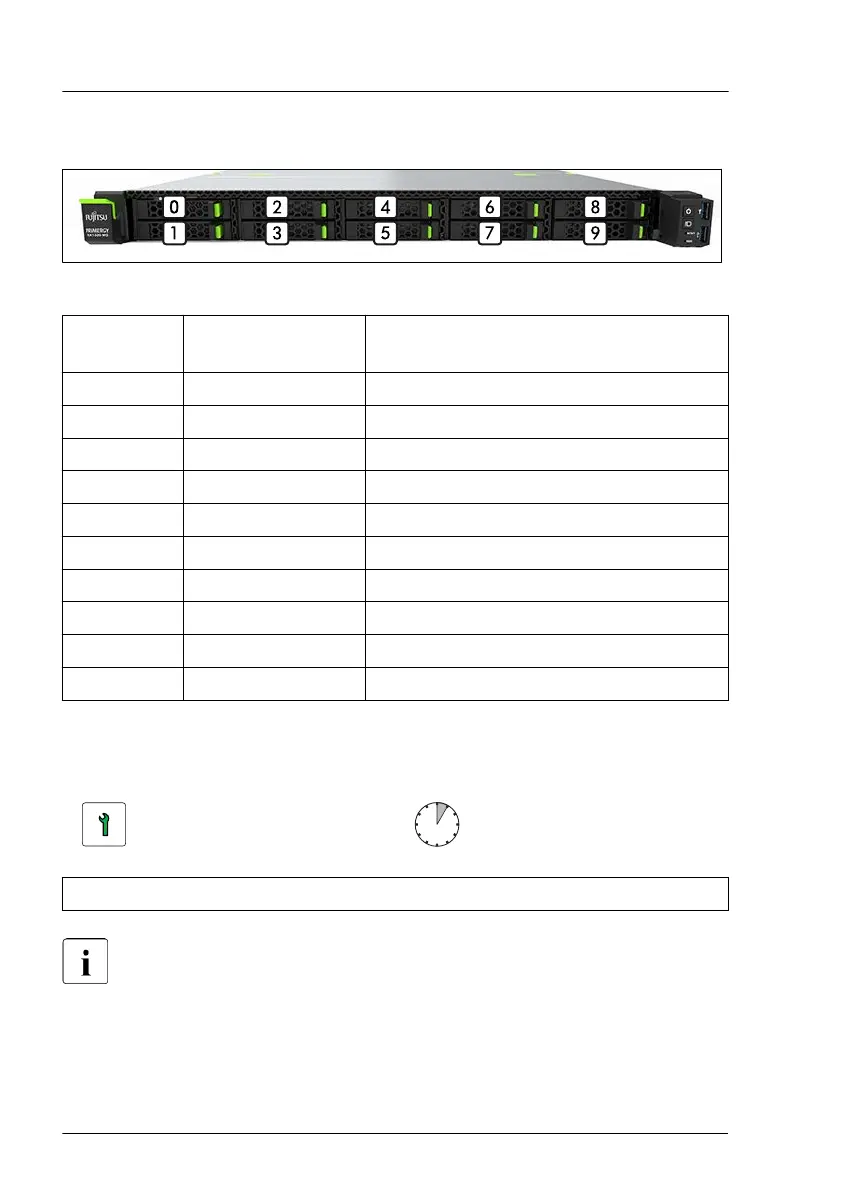

Figure 70: Numbering of the HDDs/SSDs
Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
[8] 8 Vendor Product (8)
[9] 9 Vendor Product (9)
7.5.2 Installing 2.5-inch HDD / SSD / PCIe SSD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
This procedure is also valid for PCIe SSD modules, because this server
has no onboard NVMe controller and the PCIe SSD modules are
controlled by a RAID controller.
Hard disk drive (HDD) / solid state disk (SSD)
138 Upgrade and Maintenance Manual RX1330 M5
